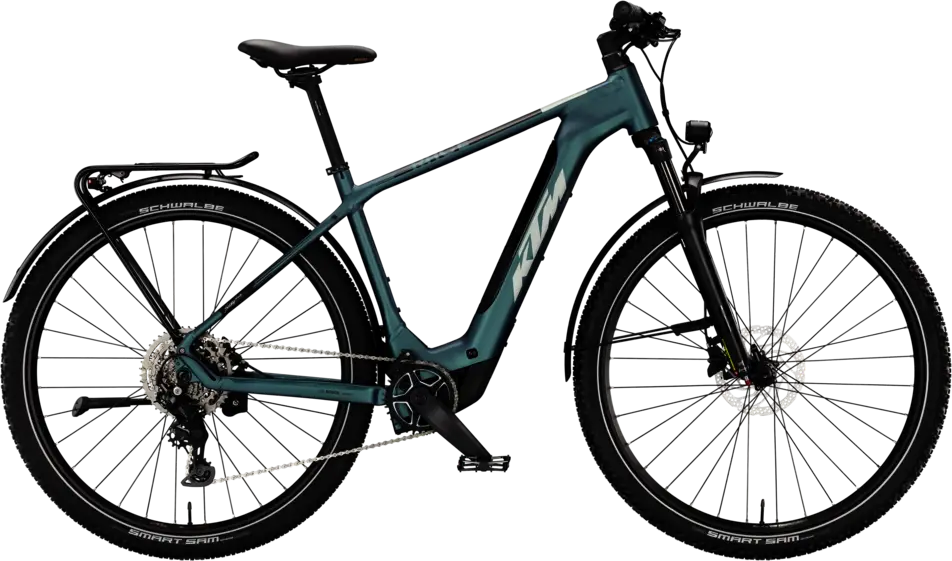

2026 KTM

MACINA RACE SX LFC

A 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range

Manufacturer Price

€3,499($3,989)
Price History
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels29″
Drivetrain1 × 9
GroupsetCUES
MotorBosch 600W 60Nm mid-drive
BatteryBosch 400Wh
BrakesShimano CUES Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($3,989)

KTM logoKTM

MACINA RACE SX LFC

Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA RACE SX LFC
Other Crosscountry bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA RACE model range

View Comparison
Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Macina MTB 29" Alloy 6061 UDH|CPT400 Bosch BDU31/M4810

BB Standard: Bosch, Press Fit

Hanger Standard: UDH

Fork

Suntour XCM34 Air 29" LOR 100mm 15x110

Travel: 100mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR intern 1.1/8"-1.5" angle lim

Stem

KTM COMP +7° ICR

Handlebar

KTM TEAM II rizer15 720mm

Saddle

Selle Royal Explora Athletic Gel

Seatpost

KTM TEAM II 27.2/400

Type: Rigid

Pedals

MTB-Pedal flat VPE-527 alloy

Grips

KTM COMP Ergo Lock

Groupset
Rear Derailleur

Shimano CUES U4000-9 LG shadow

Crank

KTM E-TEAM2 ISIS 170mm Q8

Shifters

Shimano CUES U4000-9 display

Cassette

Shimano LG400-9 / 11-46

Chain

KMC e500 LG e-bike

Brakes

Shimano CUES U4000-9 display

Type: Shimano CUES Hydraulic Disc

Wheels
Tires

Front: Schwalbe Smart Sam Perf. 57-622 Reflex, Rear: Schwalbe Smart Sam Perf. 57-622 Reflex

Electric Components
Motor

Bosch PERFORMANCE SX BDU3144 up to 60Nm

Battery

Bosch CompactTUBE 400Wh

Display

Bosch PURION 200 Display & Remote

Charger

Bosch COMPACT Charger 2A

Accessories
Fenders

SKS EVO AL 65mm 28"

Racks

Racktime Alumee (snap-it 2.0)
