2026 KTM

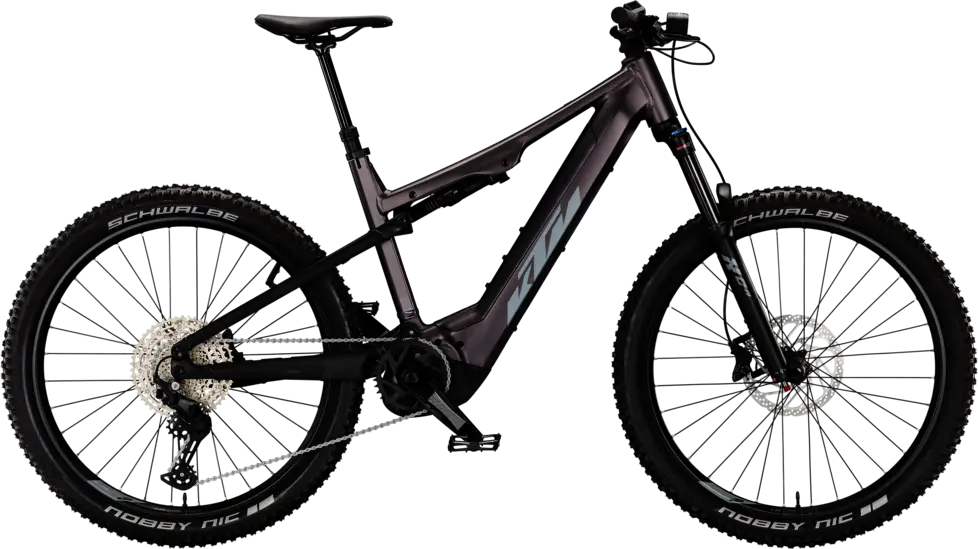

MACINA LYCAN 773 L

A 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€4,199($4,812)

Frame	Aluminum
Suspension	Full, 140mm front
Fork	Suntour XCR Air
Shock	RockShox Deluxe Select
Wheels	27.5″
Drivetrain	1 × 11
Groupset	Deore
Motor	Bosch 600W 85Nm mid-drive
Battery	Bosch 750Wh
Brakes	Shimano Deore Hydraulic Disc
Seatpost	Dropper

View on ktm-bikes.atLearn about KTM

Add to Comparison

Shop with an Expert at Upway

Where to Buy

($4,812)

KTM logo KTM

MACINA LYCAN 773 L

Similar Bikes

Top Comparison

View more similar bikes →

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

MACINA LYCAN 773 L

Other Trail bikes

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA LYCAN model range

View Comparison

Sizing

5'2" – 5'7"

5'6" – 5'11"

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History

Geometry

Specs

Build

Frame	Macina Lycan 27.5" Alloy6061 140 \|PT750 Bosch BDU37/M2296 BB Standard: Bosch, Press Fit
Fork	Suntour XCR34 Air 27.5" LOR 140mm 15x110 Travel: 140mm Spring Type: Air
Shock	RockShox Deluxe Select 230x62.5
Bottom Bracket	Bosch, press-fit
Headset	Acros AICR intern 1.1/8"-1.5" angle lim
Stem	KTM TEAM Trail35
Handlebar	KTM COMP Trail35 rizer15 760mm
Saddle	KTM Line Sport
Seatpost	KTM COMP dropper internal 30.9 T:120 Type: Dropper
Pedals	MTB-Pedal flat VPE-527 alloy
Grips	KTM COMP Lock

Groupset

Rear Derailleur	Shimano Deore M5100-11 SGS shadow+
Crank	KTM E-TRAIL ISIS 170mm Q16
Shifters	Shimano Deore M5100-11
Cassette	Shimano Deore M5100-11 / 11-51
Chain	KMC e11 Sport EPT e-bike
Brakes	Shimano Deore M5100-11 Type: Shimano Deore Hydraulic Disc

Wheels

Tires	Front: Schwalbe Nobby Nic Perf. Folding 65-584, Rear: Schwalbe Nobby Nic Perf. Folding 65-584

Electric Components

Motor	Bosch PERFORMANCE CX BDU3740 up to 85Nm
Battery	Bosch PowerTUBE 750Wh horizontal
Display	Bosch PURION 200 Display & Remote
Charger	Bosch STANDARD Charger 4A

Rider Notes

Riders Also Viewed

First added January 5

Last updated June 20
