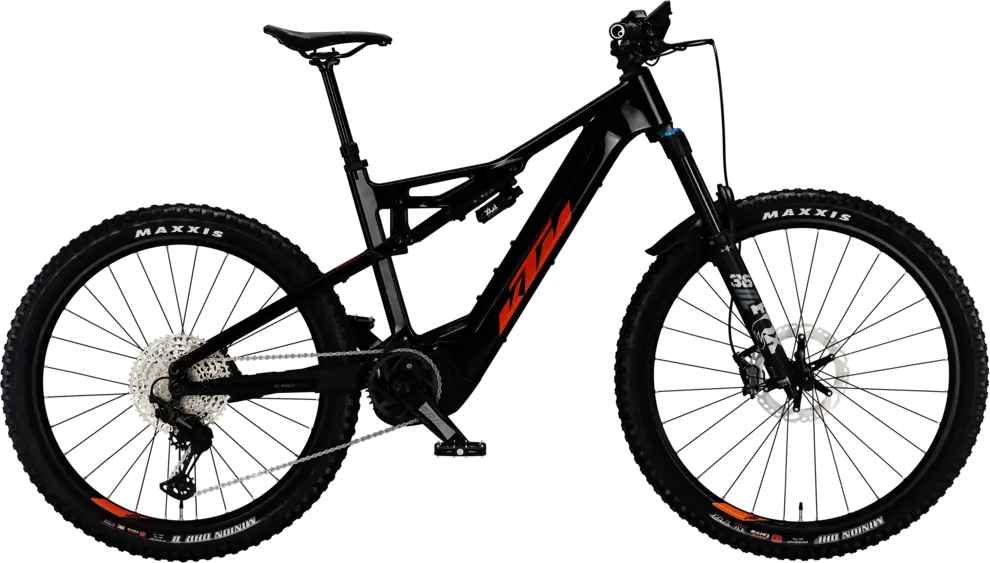

2026 KTM

MACINA KAPOHO MASTER

A 29″ / 27.5″ carbon frame full suspension enduro e-bike with high-end components.

Manufacturer Price

€5,699($6,628)
Price History
Weight55.8 lbs
FrameCarbon
SuspensionFull, 160 / 160mm
ForkFox Performance Float 36
ShockFox Float X Performance
Wheels29″ / 27.5″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($6,628)

KTM logoKTM

MACINA KAPOHO MASTER

Advertisement
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA KAPOHO MASTER
Other Enduro bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

MACINA KAPOHO MASTER

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246

BB Standard: Bosch, Press Fit

Hanger Standard: UDH

Fork

FOX 36 Float 29" Performance e-bike 160mm 15x110

Travel: 160mm

Spring Type: Air

Shock

FOX Float X Performance 2-Pos 250x70

Travel: 160mm

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM TEAM II Trail35

Handlebar

KTM Team Trail35 rizer25 800mm

Saddle

Selle San Marco Ground Short Open Fit Narrow

Seatpost

KTM COMP II dropper internal

Type: Dropper

Pedals

MTB-Pedal flat VP-539 nylon

Groupset
Rear Derailleur

Shimano Deore XT M8100-12 SGS shadow+

Crank

KTM E-TRAIL ISIS 160mm Q16

Shifters

Shimano Deore XT M8100-12

Cassette

Shimano Deore M6100-12 / 10-51

Chain

Shimano M6100-12

Brakes

Shimano Deore XT M8100-12

Type: Shimano XT Hydraulic Disc

Wheels
Rims

KTM Line - DT Swiss 370 CL 28L 110/15 / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black

Tires

Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622, Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584

Disc Rotors

Shimano MT800 CL 203 / 180 Freeza

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM
