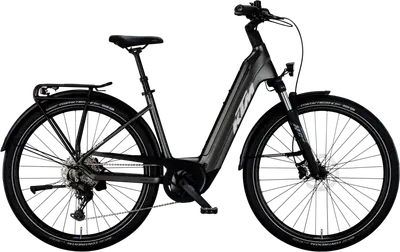

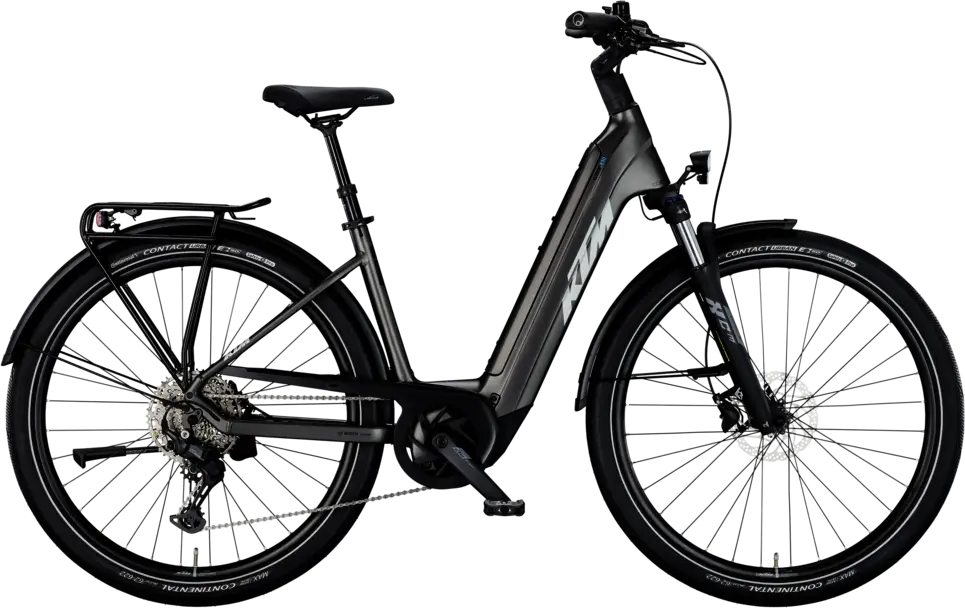

2026 KTM

MACINA GRAN 830

A 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range

Manufacturer Price

€3,799($4,420)
Price History
FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorBosch 600W 85Nm mid-drive
BatteryBosch 800Wh
BrakesShimano CUES Hydraulic Disc
SeatpostDropper
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($4,420)

KTM logoKTM

MACINA GRAN 830

Advertisement
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA GRAN 830
Other Crosscountry bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA GRAN model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940

BB Standard: Bosch, Press Fit

Fork

Suntour XCM 32 ATB coil 29" LO 80mm

Travel: 80mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.5"-1.5"

Stem

KTM Line adjust. 0-60° ICR

Handlebar

Ergotec Lady Town 630mm

Saddle

Selle Royal Lookin

Seatpost

KTM Line II dropper 30.9 T:100

Type: Dropper

Pedals

Trekking-Pedal VP-616 anti-slip

Grips

GRIP ERGON GP10

Groupset
Rear Derailleur

Shimano CUES U6000-11/10 LG shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano CUES U6000-10 display

Cassette

Shimano LG400-10 / 11-48

Chain

Shimano LG500

Chain Guide

KTM type 9 for Bosch BDU38

Brakes

Calipers: Shimano CUES U6000-10 display, Rotors: Shimano RT30 CL 180 / Shimano EM300 CL 160 magnet

Type: Shimano CUES Hydraulic Disc

Wheels
Rims

Ryde Rival30 32H 622x30C / Ryde Rival30 32H 622x30C

Spokes

DT Champion 2.0 black / DT Alpine II 2.34 black

Tires

Front: Continental Contact Urban 62-622 Reflex, Rear: Continental Contact Urban 62-622 Reflex

Electric Components
Motor

Bosch PERFORMANCE CX BDU3840

Battery

Bosch PowerTUBE 800Wh horizontal

Display

Bosch PURION 200 Display & Remote

Charger

Bosch COMPACT Charger 2A

Accessories
Fenders

SKS A69R PET Trek 28"

Racks

KTM light 60 (snap-it 1.0)
