Today’s Deals2026 KTM

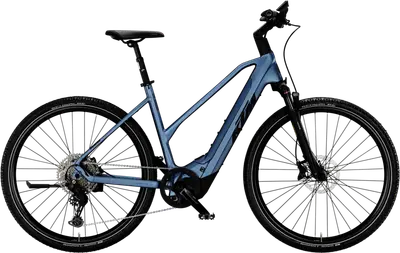

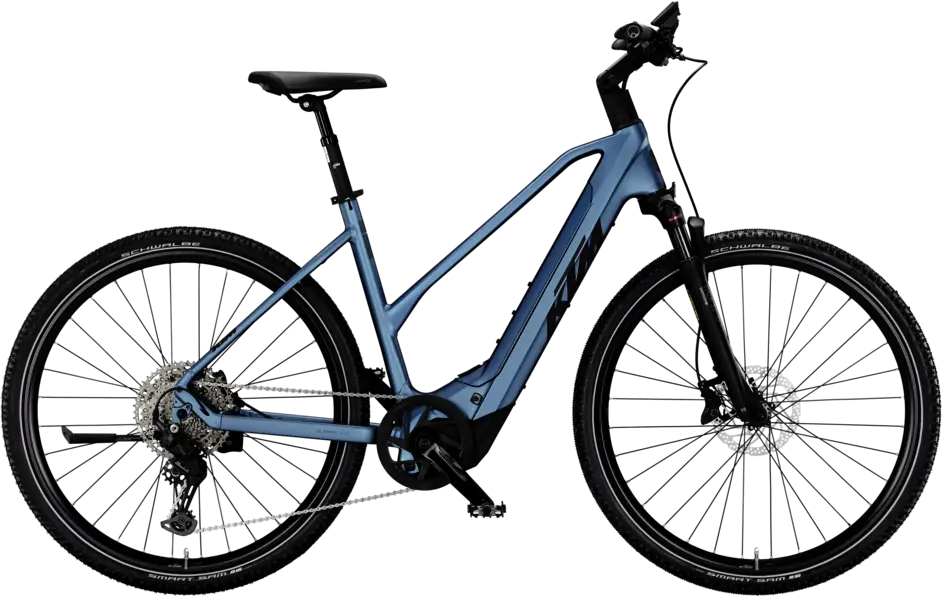

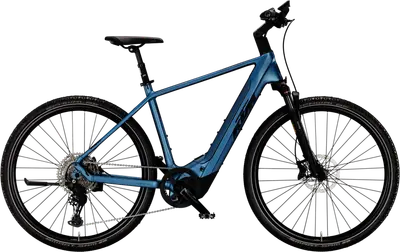

MACINA CROSS CX 810
A 700c aluminum frame hybrid e-bike with mid-range components and shimano cues hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,999($4,653)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Fork | Suntour |
| Wheels | 700c |
| Drivetrain | 1 × 11 |
| Groupset | CUES |
| Motor | Bosch 600W 100Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | Shimano CUES Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full MACINA CROSS model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Suntour NCX32-D Air LO 63mm 1 1/8 Travel: 63mm Spring Type: Air |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros AICR internal 1.5"-1.5" |
| Stem | KTM Line adjust. 0-60° ICR |
| Handlebar | KTM COMP low rizer 640mm |
| Saddle | Selle Royal Lookin Athletic 3D |
| Seatpost | KTM Line Elegance suspension 30.9/300 Type: Suspension |
| Pedals | MTB-Pedal VP-195E alloy |
| Grips | GRIP ERGON GP10 |
| Rear Derailleur | Shimano CUES U6000-11/10 LG shadow+ |
|---|---|
| Crank | KTM E-TEAM ISIS 170mm Q16 |
| Shifters | Shimano CUES U6000-11 display |
| Cassette | Shimano LG400-11 / 11-50 |
| Chain | KMC e11 Sport EPT e-bike |
| Brakes | Shimano CUES U6000-11 display Type: Shimano CUES Hydraulic Disc |
| Tires | Front: Schwalbe Smart Sam Perf. 47-622 Reflex, Rear: Schwalbe Smart Sam Perf. 47-622 Reflex |
|---|
| Motor | Bosch PERFORMANCE CX BDU3840 up to 100Nm |
|---|---|
| Battery | Bosch PowerTUBE 800Wh horizontal |
| Display | Bosch LED Remote / KIOX 300 TFT Display |
| Charger | Bosch STANDARD Charger 4A |
