2026 KTM

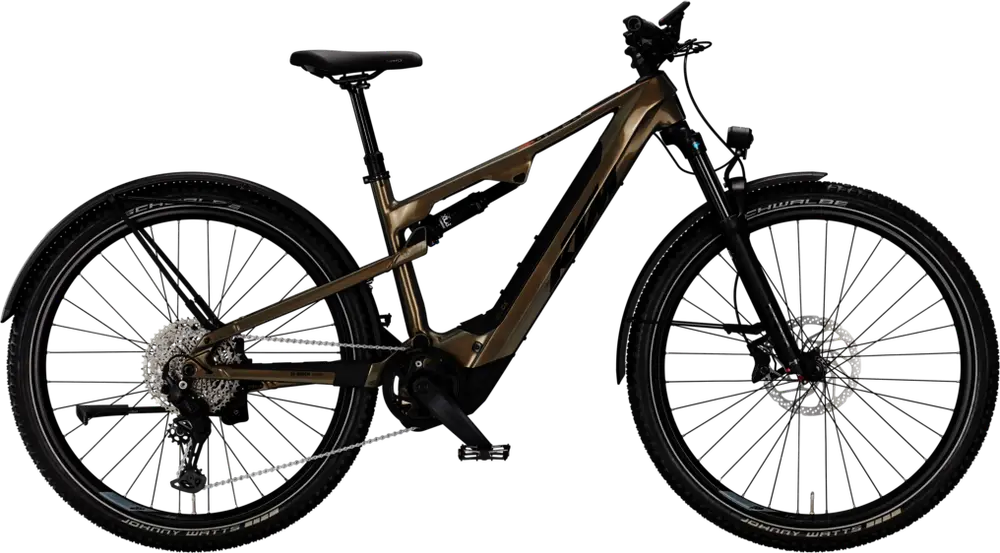

MACINA CHACANA 892 LFC

A 27.5″ aluminum frame full suspension trail e-bike with mid-range components.
Compare the full range

Manufacturer Price

€4,899($5,585)
Price History
FrameAluminum
SuspensionFull, 130mm front
ForkSuntour XCR Air
ShockFox
Wheels27.5″ Aluminum
Drivetrain1 × 11
GroupsetCUES
MotorBosch 600W 85Nm mid-drive
BatteryBosch 800Wh
BrakesShimano CUES Hydraulic Disc
SeatpostDropper
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($5,585)

KTM logoKTM

MACINA CHACANA 892 LFC

Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA CHACANA 892 LFC
Other Trail bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA CHACANA model range

View Comparison
Price History
Geometry
Specs
Build
Frame

Macina Chacana Al6061 125 UDH|PT800 Bosch BDU38/M5290

BB Standard: Bosch, Press Fit

Hanger Standard: UDH

Fork

Suntour XCR34X Air 27,5" 2CR 130mm

Travel: 130mm

Spring Type: Air

Shock

FOX Float Rhythm 2Pos 230x57,5

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR intern 1.1/8"-1.5" angle lim

Stem

KTM TEAM Trail35

Handlebar

KTM COMP Trail35 rizer15 760mm

Saddle

Selle Royal Lookin Athletic Evo

Seatpost

KTM COMP II dropper internal 34.9 T:125

Type: Dropper

Pedals

MTB-Pedal flat VPE-527 alloy

Grips

Ergon GA30

Groupset
Rear Derailleur

Shimano CUES U6000-11/10 LG shadow+

Crank

KTM E-COMP2 ISIS 170mm Q8

Shifters

Shimano CUES U6000-11 display

Cassette

Shimano LG400-11 / 11-50

Chain

KMC e500 LG e-bike

Brakes

Calipers: Shimano CUES U6000-11 display, Rotors: Shimano RT30 CL 203 / Shimano EM300 CL 180 magnet

Type: Shimano CUES Hydraulic Disc

Wheels
Rims

Ambrosio E30 Trail 32H 584x30TC / Ambrosio E30 Trail 32H 584x30TC

Spokes

DT Champion 2.0 black / DT Alpine II 2.34 black

Tires

Front: Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex, Rear: Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex

Electric Components
Motor

Bosch PERFORMANCE CX BDU3840

Battery

Bosch PowerTUBE 800Wh horizontal

Display

Bosch LED Remote / INTUVIA 100 LCD Display

Charger

Bosch STANDARD Charger 4A

Accessories
Fenders

Racktime Alu 72mm

Racks

Racktime Alumee rails (plattform option)
