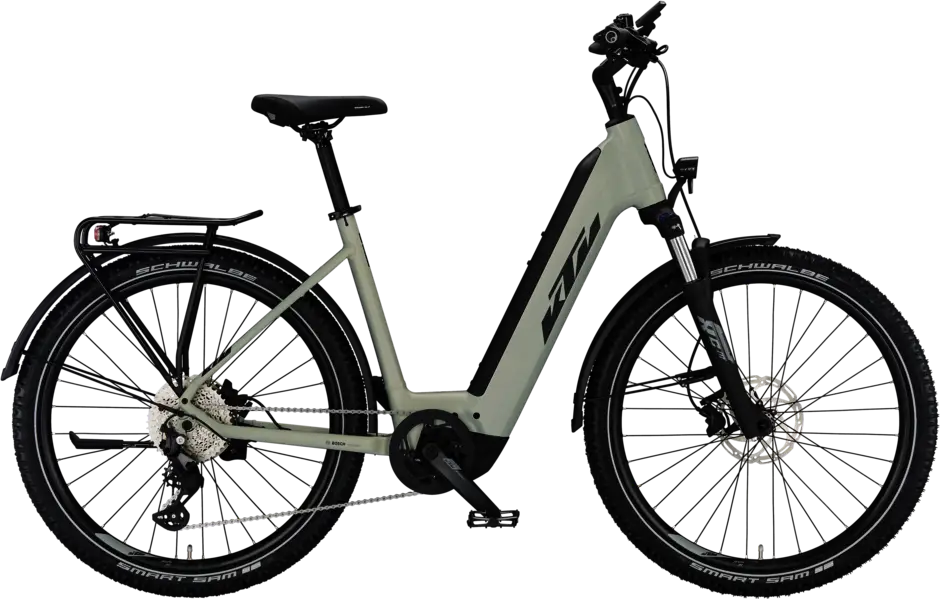

2026 KTM

MACINA AERA 571 LFC

A 27.5″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€3,899($4,516)
Price History
Weight58.0 lbs
FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour XCM
Wheels27.5″ Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Deore Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($4,516)

KTM logoKTM

MACINA AERA 571 LFC

Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA AERA 571 LFC
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

MACINA AERA 571 LFC

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA AERA model range

View Comparison
Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'7"

MD

5'4" – 5'10"

LG

5'7" – 6'1"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940

BB Standard: Bosch, Press Fit

Fork

Suntour XCM 32 ATB coil 27.5" NLO 80mm taper

Travel: 80mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM Line UP3 adjust. 0-90°

Handlebar

KTM COMP II rizer15 680mm

Saddle

Selle Royal Essenza+

Seatpost

KTM COMP II 30.9/300

Type: Rigid

Pedals

MTB-Pedal flat VPE-527 alloy

Groupset
Rear Derailleur

Shimano Deore M5130-10 LG shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore M5130-10 LG display

Cassette

Shimano LG400-10 / 11-43

Chain

Shimano LG500

Brakes

Shimano Deore M5130-10 LG display

Type: Shimano Deore Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32H 584x30C / DT Champion 2.0 black

Tires

Front: Schwalbe Smart Sam Perf. 57-584 RT, Rear: Schwalbe Smart Sam Perf. 57-584 RT

Disc Rotors

Tektro TR-45 2.3mm CL 180 / 180

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 500Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch INTUVIA 100 LCD Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM

Accessories
Fenders

SKS A65R 65mm black matt

Racks

KTM light (snap-it 1.0)
