2026 Ideal
PRISMA-810B 29”

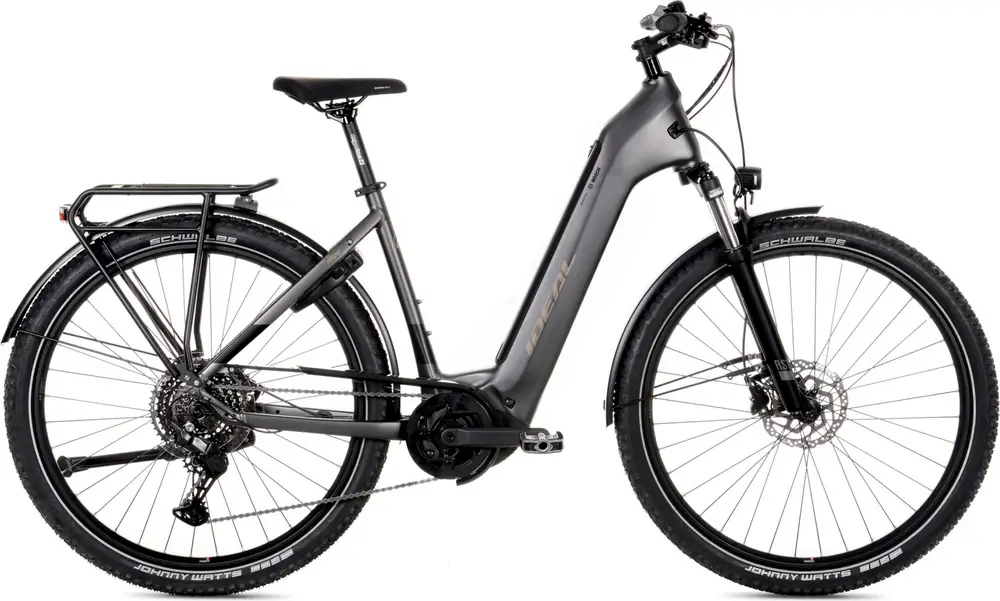

An aluminum frame touring e-bike with mid-range components and shimano hydraulic disc brakes.

Manufacturer Price

£3,490($4,681)

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

PRISMA-810B 29”

32 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Price History

Geometry

Specs

Build

Frame	eSUV, Aluminium
Fork	RST BLAZE MLC, 100 mm, 32 mm, Lock Out Spring Type: Coil
Stem	Ergotec Crab 2 Ahead, 31.8 mm, 70/90 mm
Handlebar	Ergotec Low Riser, 720 mm
Saddle	Selle Royal Premium Essenza D
Seatpost	Ergotec Atar, 30.9 mm, 250/350 mm Type: Rigid
Grips	Herrmans Lockable Grip Line

Groupset

Rear Derailleur	Shimano CUES RD-U6000-10 Shadow Plus
Crank	FSA CK-747, 38T, 170/175 mm
Shifters	Shimano CUES SL-U6000-10
Cassette	Shimano CS-LG400-10, 11-48T
Chain	Shimano CN-LG500-10
Brakes	Shimano BR-MT200/ BL-MT201, Disc 180/180 mm Type: Shimano Hydraulic Disc

Wheels

Rims	Mach1 CROSS-R 27, 27C-622
Front Hub	Shimano HB-QC400
Rear Hub	Shimano FH-QC400
Tires	Schwalbe Johnny Watts Perf, DD, RaceGuard, 60-622, A/V Valve

Electric Components

Motor	Bosch Performance Line PX, 90Nm, center unit, Setting ID-SUV
Battery	Bosch PowerTube, 800 Wh, full integrated
Display	Bosch Purion 200

Accessories

Fenders	SKS PET A69R, 69 mm
Racks	ID-Project, Racktime Snapit System 2.0

Rider Notes

Riders Also Viewed

First added March 21

Last updated May 30

2026 IdealPRISMA-810B 29”
