Dynamite Red / Blue Glossy

Front: Magura MT C Allroad ABS, 4 pistons, 203 mm, Rear: Magura MT C Allroad ABS, 4 pistons, 203 mm

SR Suntour SF24-MOBIE34-Boost-ABS-EQ-2CR-DS, Offset: 44 mm, Travel: 100mm

XLC CAT2, Dia. 31.8 mm, Rise: 25 mm, backsweep 15° 720 mm

Front: Trelock Skybeamer 300, 6-24V, Rear: Spanninga Aerline 2.0 Brake

Bosch Performance Line CX, 600W, 85Nm, 25km/h

Schürmann YAK Disc 25-584 32H w/ single eyelets

Limotec A1H Dropper, Dia. 34.9 mm, Travel: 125 mm

Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift

Schwalbe Johnny Watts w/ reflective line, 60-584

For daily commutes and epic tours. For spontaneous trips and planned adventures. Our TREKKING 9 ABS is the new flagship in our trekking segment, offering the perfect combination of comfort, safety and versatility. Powered by the powerful Bosch Performance CX motor with an 800Wh battery, this eTrekking bike features an integrated eBike ABS, putting an end to front-wheel lock-ups. It also comes with a modern belt drive – the quiet, clean and low-maintenance alternative to the traditional chain. The bike’s versatility is further enhanced by the Modular Rail System, allowing you to mount accessories easily. And with a maximum total weight capacity of up to 150kg, it’s perfect for heavier loads. In short, the ideal partner for daily rides and big tours.

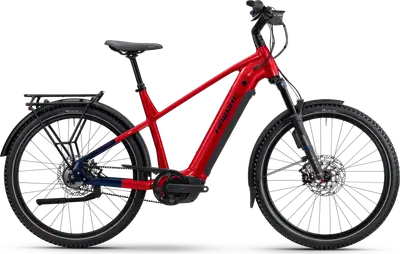

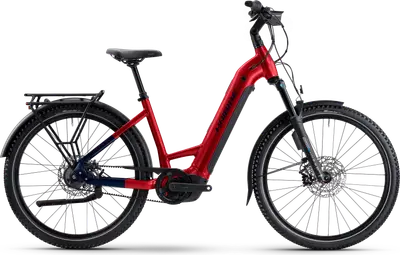

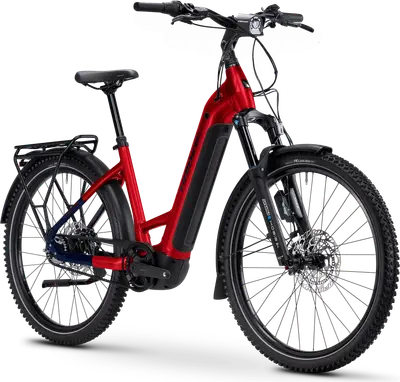

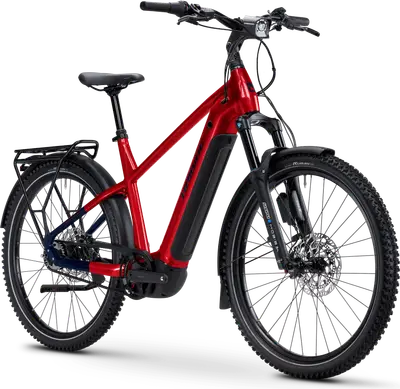

Haibike TREKKING 9 ABS

A 650b aluminum frame hybrid e-bike with high-end components and magura hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour MOBIE
Wheels	650b Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset	Nexus
Motor	Bosch 600W 85Nm mid-drive
Battery	Bosch 800Wh
Brakes	Magura Hydraulic Disc
Seatpost	Dropper

Frame	aluminium, disc brake Post Mount Color: Dynamite Red / Blue Glossy

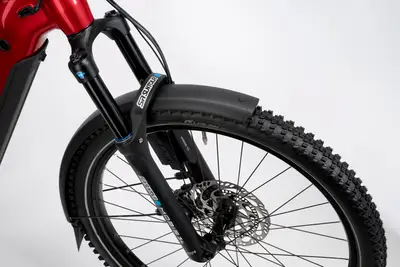

Fork	SR Suntour SF24-MOBIE34-Boost-ABS-EQ-2CR-DS, Offset: 44 mm, Travel: 100mm Travel: 100mm Spring Type: Air
Handlebar	XLC CAT2, Dia. 31.8 mm, Rise: 25 mm, backsweep 15° 720 mm
Saddle	Selle Royal Essenza+
Seatpost	Limotec A1H Dropper, Dia. 34.9 mm, Travel: 125 mm Type: Dropper
Pedals	VP Components VPE-527 Alloy w/ Reflector
Grips	Herrmans DD42, Lockable Grips

Shifters	Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift

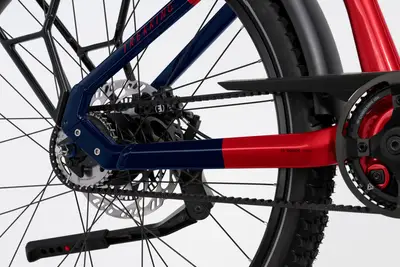

Chain	Gates Carbon Drive Belt CDX, 125T
Brakes	Front: Magura MT C Allroad ABS, 4 pistons, 203 mm, Rear: Magura MT C Allroad ABS, 4 pistons, 203 mm Type: Magura Hydraulic Disc

Motor	Bosch Performance Line CX, 600W, 85Nm, 25km/h
Battery	Bosch PowerTube 800Wh
Display	Bosch Kiox 500 + LED Remote
Charger	Bosch Charger 4A 220-240V

Rims	Schürmann YAK Disc 25-584 32H w/ single eyelets
Tires	Schwalbe Johnny Watts w/ reflective line, 60-584

2026 HaibikeTREKKING 9 ABS

2026 Haibike
TREKKING 9 ABS
