Warm Grey / Black Glossy

Front: Alhonga HT474, 2 pistons, 180 mm, Rear: Alhonga HT474, 2 pistons, 180 mm

SR Suntour SF18-XCM-ATB-HLO-DS, Travel: 67mm

Kalloy RB12L, Dia. 31.8 mm, Rise: 15 mm 720 mm

Front: Trelock LS230 VEO, 20 Lux E-Bike, 6-12V, StVZO, Rear: AXA Juno E-Bike, 6-12V

Bosch Performance Line Smart System, 600W, 75Nm, 25km/h

VP Components VPE-461 MTB Alloy Pedal w/ Reflector

Shimano CUES RD-U3020-SGS 9s, Shadow, 9-speed

Schürmann YAK Disc 25-584 32H 8,5 mm Valve

Shimano CUES SL-U4000-9R, Rapidfire+, Trigger shifter

WTB Groov-E, w/ reflective stripe, 60TPI, 62-584

Electric. Sporty. Practical. Our TREKKING 3 HIGH is made for your entry into the eBike business – this is ensured not only by its comfortable geometry, but also by its reliable component mix. Whether it’s your way to work or an evening ride through the forest – with the powerful Bosch Performance Line Smart System motor, you’ll always have the wind at your back. Reliable shifting and braking components also offer you maximum comfort. The StVZO-compliant* equipment with luggage rack, lights and mudguards leaves nothing to be desired on the usual daily rides. In short: this Trekking eBike is the best proof of why electric cycling is so successful – and shows why it’s high time you got into the eBike business. The TREKKING 3 is available in MID and HIGH frame shapes.
*For countries outside Germany, please check your local road traffic regulations for compliance.

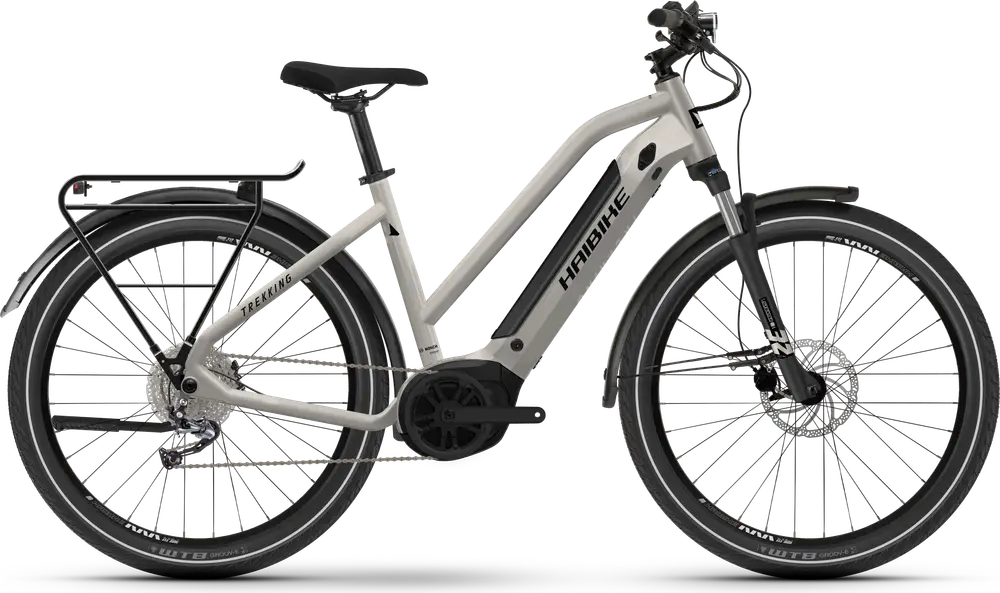

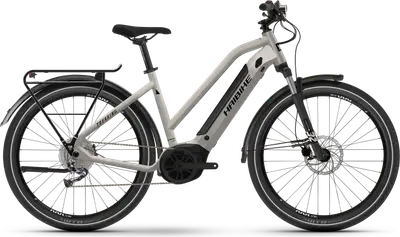

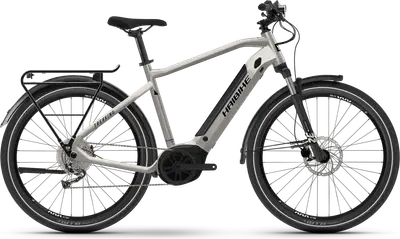

Haibike TREKKING 3

A 650b aluminum frame hybrid e-bike with mid-range components and hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 67mm
Fork	Suntour XCM
Wheels	650b Aluminum
Drivetrain	1 × 11
Groupset	CUES
Motor	Bosch 600W 75Nm mid-drive
Battery	Bosch 500Wh
Brakes	Hydraulic Disc

Frame	aluminium, disc brake Post Mount Color: Warm Grey / Black Glossy
Fork	SR Suntour SF18-XCM-ATB-HLO-DS, Travel: 67mm Travel: 67mm Spring Type: Coil
Handlebar	Kalloy RB12L, Dia. 31.8 mm, Rise: 15 mm 720 mm
Saddle	Selle Royal Wave
Seatpost	Kalloy SP-DC1, Dia. 31.6 mm, L: 300 mm Type: Rigid
Pedals	VP Components VPE-461 MTB Alloy Pedal w/ Reflector
Grips	XLC Comfort Grip Set VLG-1752D2

Rear Derailleur	Shimano CUES RD-U3020-SGS 9s, Shadow, 9-speed
Shifters	Shimano CUES SL-U4000-9R, Rapidfire+, Trigger shifter
Chain	Shimano CN-LG500 9-11s, LINKGLIDE
Brakes	Front: Alhonga HT474, 2 pistons, 180 mm, Rear: Alhonga HT474, 2 pistons, 180 mm Type: Hydraulic Disc

Motor	Bosch Performance Line Smart System, 600W, 75Nm, 25km/h
Battery	Bosch PowerTube 500Wh
Display	Bosch Intuvia 100 + LED Remote
Charger	Bosch Charger 4A 220-240V

Rims	Schürmann YAK Disc 25-584 32H 8,5 mm Valve
Tires	WTB Groov-E, w/ reflective stripe, 60TPI, 62-584

2026 HaibikeTREKKING 3

2026 Haibike
TREKKING 3
