Choco / Canary/grey - Matt Matt

Front: Magura MT7 Pro, 4 pistons, 203 mm, Rear: Magura MT7 Pro, 4 pistons, 203 mm

RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir+, Offset: 44 mm, Travel: 170mm

SRAM GX Eagle AXS T-Type 12s, wireless, 12-speed

DT Swiss H 1900 Spline, 30 mm, 15x110 mm, 6 bolt Disc

Limotec A4H Dropper, Dia. 34.9 mm, Travel: 150 mm

Maxxis Assegai, 3C MaxxTerra, EXO+, TR, 120 TPI, 63-622

Own any ground! If the best and strongest is the only thing that is good enough for you, then our brand-new HYBE 10.5 is just right. This “Power Sports” eFully offers the ideal mix of speed, integration and performance and rolls like a world champion even on rough terrain. On the uphill, the new Yamaha PW-XM motor fulfils your every drive wish. On the downhill, you’ll be riding in maximum comfort with 170mm travel at the fork and 160mm travel at the rear, while the Magura MT7 disc brakes bring you to a stop quickly at all times. Smooth: the mullet setup with 29″ front and 27.5″ rear offers you the best of both worlds and thus performance on any terrain. And with the SRAM GX Eagle AXS groupset, you’ll always find the right gear. As we said: you definitely don’t need to compromise with our new HYBE 10.5 – no matter what terrain you’re riding on.

Haibike HYBE 10.5

A 29″ aluminum frame hardtail enduro e-bike with high-end components.

Frame	Aluminum
Suspension	Hardtail, 170mm
Fork	RockShox ZEB Ultimate
Wheels	29″ Aluminum
Drivetrain	1 × 12 Electronic
Groupset	GX Eagle Transmission
Motor	Yamaha 85Nm mid-drive
Battery	Yamaha 720Wh
Brakes	Magura MT7 Pro Hydraulic Disc
Seatpost	Dropper

Frame	aluminium, disc brake Post Mount Hanger Standard: UDH Color: Choco / Canary/grey - Matt Matt
Fork	RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir+, Offset: 44 mm, Travel: 170mm Travel: 170mm Spring Type: Air
Handlebar	Haibike TheBar++ Dia. 31.8 mm 780 mm
Saddle	Prologo Proxim W400 Performance 153 mm
Seatpost	Limotec A4H Dropper, Dia. 34.9 mm, Travel: 150 mm Type: Dropper
Pedals	VP Components VPE-527 Alloy w/ Reflector
Grips	XLC GR-S34 Gravity Grip

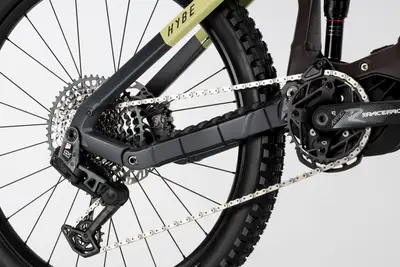

Rear Derailleur	SRAM GX Eagle AXS T-Type 12s, wireless, 12-speed
Shifters	SRAM AXS Pod Controller, Trigger shifter
Chain	SRAM GX Eagle T-Type 12s
Brakes	Front: Magura MT7 Pro, 4 pistons, 203 mm, Rear: Magura MT7 Pro, 4 pistons, 203 mm Type: Magura MT7 Pro Hydraulic Disc

Motor	Yamaha PW-XM, 85Nm
Battery	Yamaha InTube 720Wh
Display	Yamaha Interface - X
Charger	Yamaha Standard Charger 4A

Rims	DT Swiss H 1900 Spline, 30 mm, 15x110 mm, 6 bolt Disc
Tires	Maxxis Assegai, 3C MaxxTerra, EXO+, TR, 120 TPI, 63-622

2026 HaibikeHYBE 10.5

2026 Haibike
HYBE 10.5
