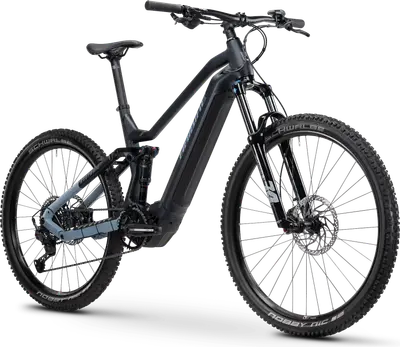

Name: 2026 Haibike ALLTRAIL 3
Brand: Haibike
Rating: 4.896 (1 reviews)

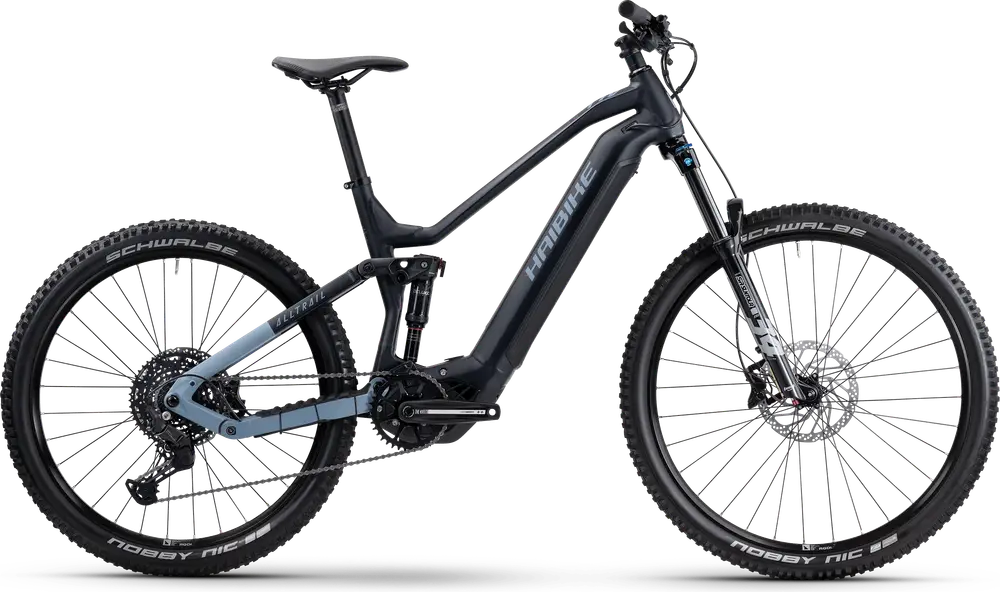

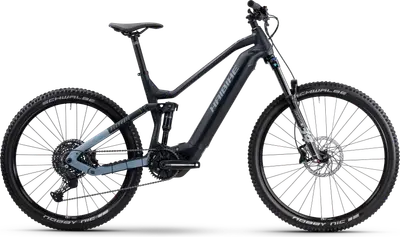

Ocean Black / Blue Matt

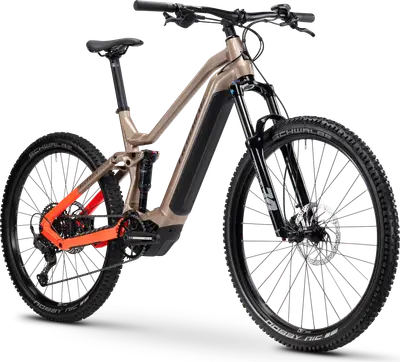

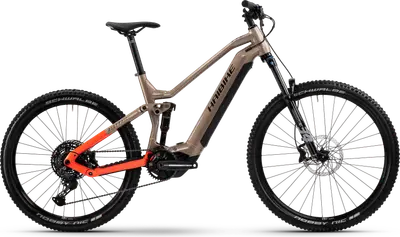

Caramel / Orange/black Glossy

Front: Shimano Deore BR-MT420, 4 pistons, resin pad, 203 mm, Rear: Shimano Deore BR-MT420, 4 pistons, resin pad, 203 mm

SR Suntour SF23-XCR34, Air Boost DS 2CR, 2pos, Travel: 140mm

Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed

Rodi TRYP 30 Disc 30x622 32H with eyelets

Shimano CUES SL-U6000-10R, Rapidfire+, Trigger shifter

Schwalbe Nobby Nic Performance, ADDIX, 67EPI, 60-622

Hit the trails with ease. Our ALLTRAIL 3 is the ideal eMTB for your first steps into trail riding. This touring full-suspension features a mullet setup, offering perfect traction on the climbs while remaining agile on the descents. The concept is simple yet brilliant: the 29″ front wheel provides stability, while the 27.5″ rear wheel lets you tackle tight corners with ease. With the Shimano 10-speed drivetrain, you’ll always find the right gear, even on varied terrain. And the powerful Yamaha PW-S2 motor gives you that extra boost when you need it. Maximum comfort is provided by the SR Suntour fork, offering 140mm of travel to handle even the toughest downhills. We’re confident that this eMTB will deliver maximum touring fun in any terrain, with a level of ease you’ve never experienced – even when things get bumpy.

Haibike ALLTRAIL 3

A 29″ aluminum frame hardtail trail e-bike with mid-range components.

We tested the new Haibike AllTrail with the latest Bosch Performance Line CX motor system for you.

Frame	Aluminum
Suspension	Hardtail, 140mm
Fork	Suntour XCR Air
Wheels	29″ Aluminum
Drivetrain	1 × 10
Groupset	CUES
Motor	Yamaha 250W 75Nm mid-drive
Battery	Yamaha 720Wh
Brakes	Shimano Deore Hydraulic Disc

Frame	aluminium, disc brake Post Mount Colors: Ocean Black / Blue Matt; Caramel / Orange/black Glossy

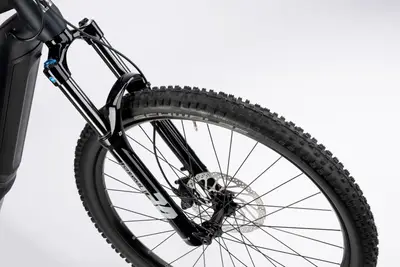

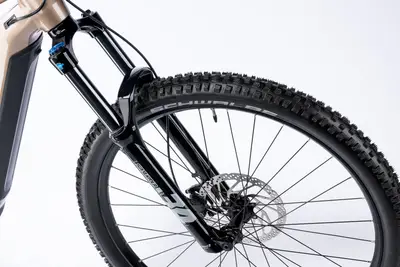

Fork	SR Suntour SF23-XCR34, Air Boost DS 2CR, 2pos, Travel: 140mm Travel: 140mm Spring Type: Air
Handlebar	Haibike TheBar++ Dia. 31.8 mm 780 mm
Saddle	Selle Royal Vivo
Seatpost	JD SP20T.1A Dia. 34.9 mm, L: 300 mm Type: Rigid
Pedals	VP Components VPE-527 Alloy w/ Reflector
Grips	XLC MTB Grip Set VLG-1751D2

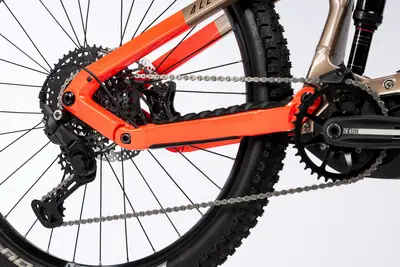

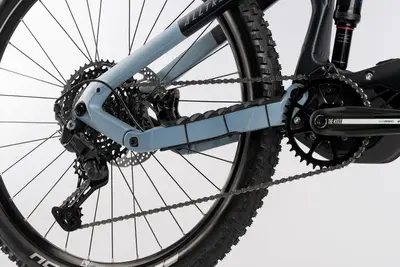

Rear Derailleur	Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed
Shifters	Shimano CUES SL-U6000-10R, Rapidfire+, Trigger shifter
Chain	Shimano CN-LG500 9-11s, LINKGLIDE
Brakes	Front: Shimano Deore BR-MT420, 4 pistons, resin pad, 203 mm, Rear: Shimano Deore BR-MT420, 4 pistons, resin pad, 203 mm Type: Shimano Deore Hydraulic Disc

Motor	Yamaha PW-S2, 250W, 75Nm, 25km/h
Battery	Yamaha InTube 720Wh
Display	Yamaha A2 Display
Charger	Yamaha Standard Charger 4A

Rims	Rodi TRYP 30 Disc 30x622 32H with eyelets
Tires	Schwalbe Nobby Nic Performance, ADDIX, 67EPI, 60-622
