Name: 2026 Haibike ALLTRAIL 10.5 ABS
Brand: Haibike
Rating: 4.896 (1 reviews)

Black / Ninja Gold/grey Glossy

Front: Magura MT C Allroad ABS, 4 pistons, 203 mm, Rear: Magura MT C Allroad ABS, 4 pistons, 203 mm

FOX 34 FLOAT AWL, Sweep Adjust, Offset: 44 mm, Travel: 140mm

Bosch Performance Line CX, 600W, 85Nm, 25km/h

FOX FLOAT Performance,2pos,Evol LV,Trunnion 205x60mm

Limotec A1H Dropper, Dia. 34.9 mm, Travel: 125 mm

SRAM SX Eagle Single Click Trigger, Trigger shifter

Continental Xynotal Trail Endurance, foldable skin SL, 60-584

More power, more trails, more adventure. Our ALLTRAIL 10.5 ABS is the new flagship of our ALLTRAIL series – the perfect choice for those who demand no compromises on their trail adventures. With the brand-new Bosch Performance CX motor and a powerful 800Wh battery, this full-suspension eMTB conquers even the highest alpine paths. The Fox fork, RockShox shock and dropper seatpost deliver world-class performance on the downhills. And when things get tricky, the integrated eBike ABS, which prevents the front wheel from locking on slippery terrain, acts as your bodyguard. Need more range? The optional Range Extender boosts your battery by an additional 250Wh. This eMTB offers the ideal setup for more trails and more adventures – the wilder, the better.

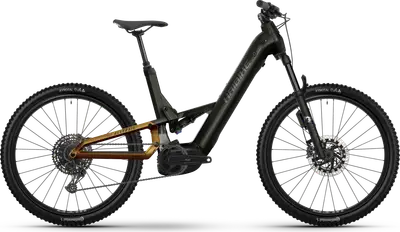

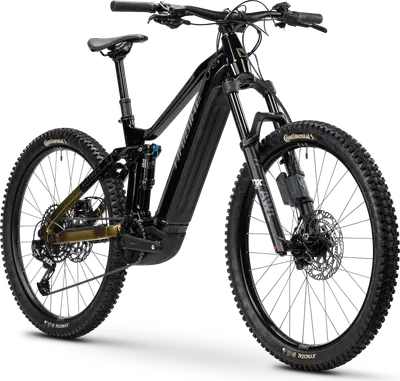

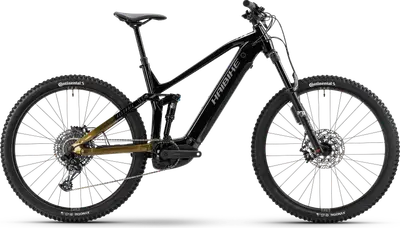

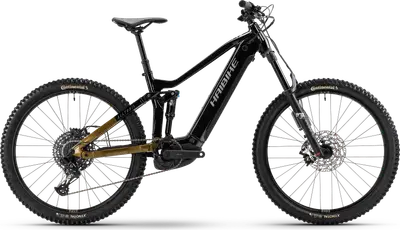

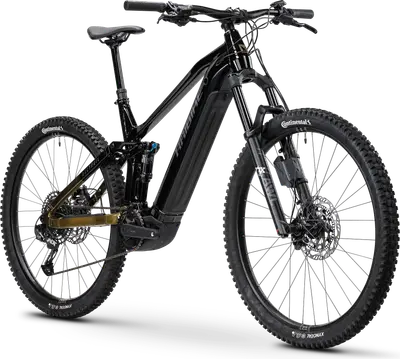

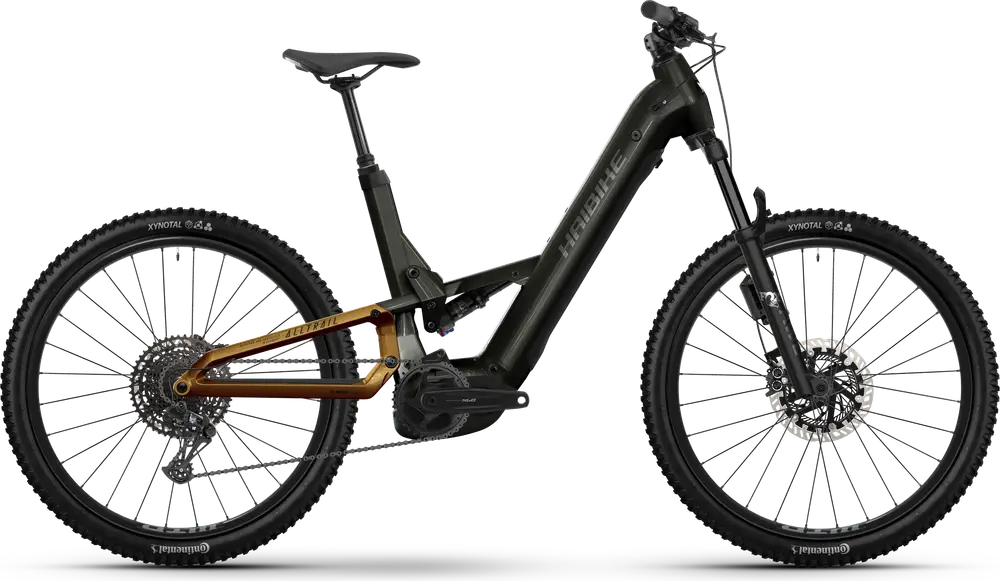

Haibike ALLTRAIL 10.5 ABS

A 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.

We tested the new Haibike AllTrail with the latest Bosch Performance Line CX motor system for you.

Frame	Aluminum
Suspension	Full, 140mm front
Fork	Fox AWL
Shock	Fox Float X Performance
Wheels	27.5″ Aluminum
Drivetrain	1 × 12
Groupset	NX Eagle, SX Eagle
Motor	Bosch 600W 85Nm mid-drive
Battery	Bosch 800Wh
Brakes	Magura Hydraulic Disc
Seatpost	Dropper

Frame	aluminium, disc brake Post Mount Color: Black / Ninja Gold/grey Glossy

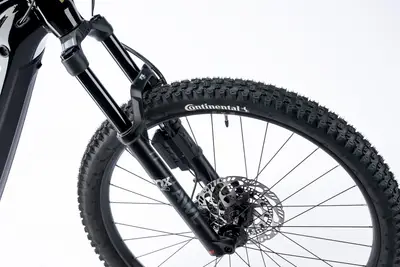

Fork	FOX 34 FLOAT AWL, Sweep Adjust, Offset: 44 mm, Travel: 140mm Travel: 140mm Spring Type: Air

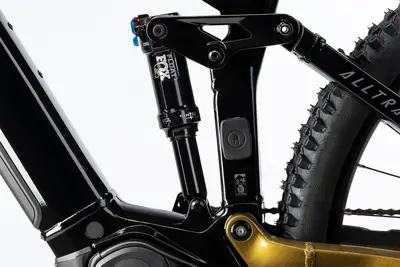

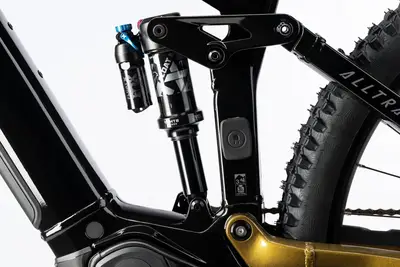

Shock	FOX FLOAT Performance,2pos,Evol LV,Trunnion 205x60mm
Handlebar	Haibike TheBar++ Dia. 31.8 mm 780 mm
Saddle	Selle Royal Vivo
Seatpost	Limotec A1H Dropper, Dia. 34.9 mm, Travel: 125 mm Type: Dropper
Pedals	VP Components VPE-527 Alloy w/ Reflector
Grips	XLC MTB Grip Set VLG-1751D2

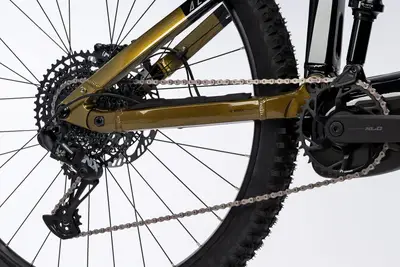

Rear Derailleur	SRAM NX Eagle 12s, 12-speed
Shifters	SRAM SX Eagle Single Click Trigger, Trigger shifter
Chain	SRAM SX Eagle 12s
Brakes	Front: Magura MT C Allroad ABS, 4 pistons, 203 mm, Rear: Magura MT C Allroad ABS, 4 pistons, 203 mm Type: Magura Hydraulic Disc

Rims	WTB ST i30 TCS 2.0 27.5" 32H
Tires	Continental Xynotal Trail Endurance, foldable skin SL, 60-584

Motor	Bosch Performance Line CX, 600W, 85Nm, 25km/h
Battery	Bosch PowerTube 800Wh
Display	Bosch Kiox 300 + LED Remote
Charger	Bosch Charger 4A 220-240V

2026 HaibikeALLTRAIL 10.5 ABS

2026 Haibike
ALLTRAIL 10.5 ABS
