Today’s Deals2025 Diamondback

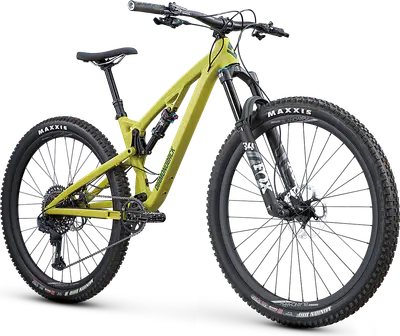

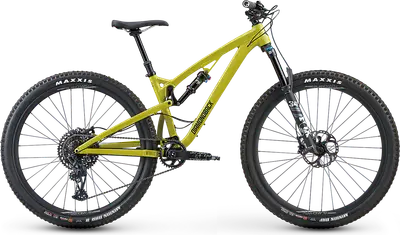

Release 29 3
A 29″ aluminum frame full suspension trail bike with high-end components.
Compare the full range
Manufacturer Price
$4,550| Frame | Aluminum |
|---|---|
| Suspension | Full, 130 / 140mm |
| Fork | Fox Performance Float 34 |
| Shock | Fox Float DPS Performance Elite |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, Truvativ Stylo |
| Brakes | Shimano XT Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Release model range
View Comparison5'4" – 5'8"
5'6" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
|---|---|
| Fork | Fox 34 Performance Float, 29", 140mm Travel, Grip 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle Travel: 140mm Spring Type: Air |
| Shock | Fox Performance Elite Float DPS, 3 Position Lever, LV EVOL, 200x57mm, 22.2mm Eyelet Width Travel: 130mm |
| Bottom Bracket | SRAM DUB |
| Headset | FSA No. 57 Sealed Cartridge |
| Stem | DB35 Aluminum 35mm Reach, 35mm Bar Bore |
| Handlebar | DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore |
| Saddle | WTB Volt Race |
| Seatpost | KS LEV Integra, Internal Dropper, 31.6mm w/Southpaw Remote Type: Dropper |
| Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins |
| Grips | Ergon GE10 Evo Lock-On |
| Rear Derailleur | SRAM GX Eagle, 12 Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | SRAM Stylo 7K, 32T |
| Shifters | SRAM GX Eagle, 12 Speed |
| Cassette | SRAM GX Eagle, 10-50T |
| Chain | SRAM NX Eagle |
| Brakes | Shimano XT M8100 Type: Shimano XT Hydraulic Disc |
| Brake Levers | Shimano XT M8100 |
| Rims | Diamondback Blanchard 28R, Taped for Tubeless, 32h |
|---|---|
| Spokes | 2.0/1.8/2.0 Double Butted Stainless Steel |
| Front Hub | Novatec SL-Team, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing |
| Rear Hub | Novatec SL-Team, 32h Aluminum, 148x12mm Thru-axle, Sealed Cartridge Bearing, XD Driver |
| Tires | Maxxis Minion DHF 29x2.3" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR 29x2.3" EXO, TR (Tubeless Ready), Folding |
