Today’s Deals2025 Diamondback

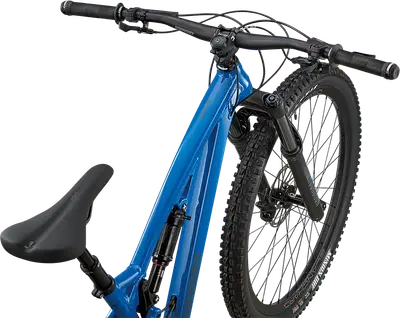

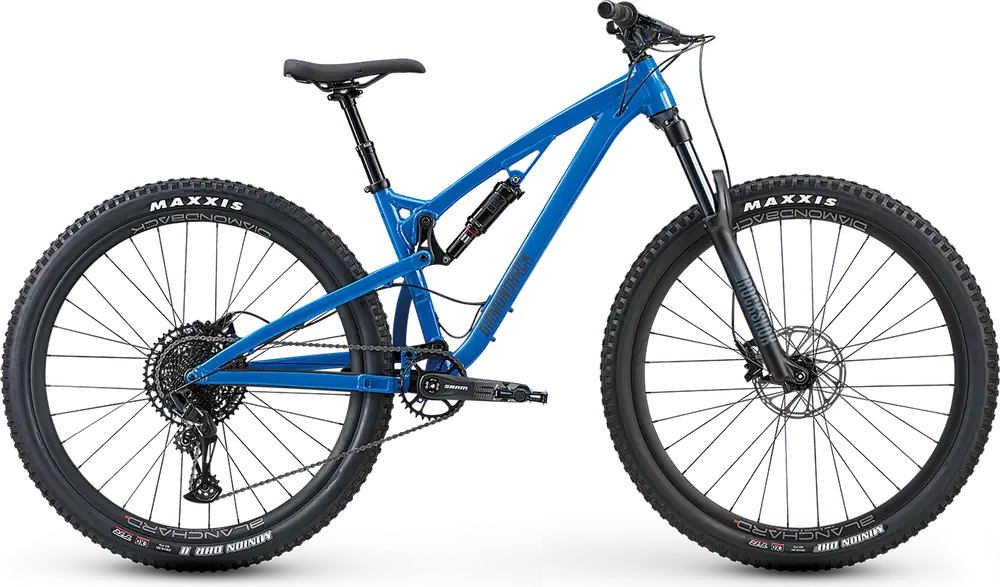

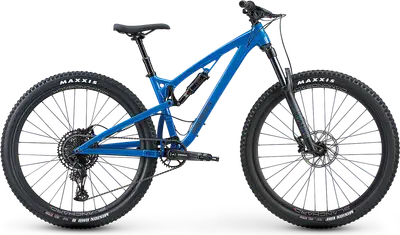

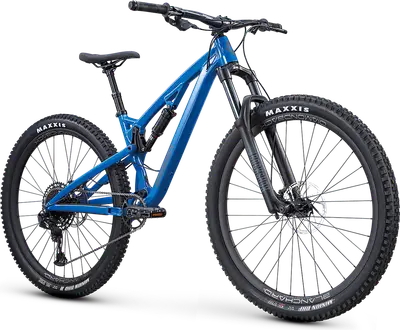

Release 29 1
A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$2,850| Frame | Aluminum |
|---|---|
| Suspension | Full, 130 / 140mm |
| Fork | RockShox 35 Silver |
| Shock | RockShox Monarch R |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle |
| Brakes | SRAM Level Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Release model range
View Comparison5'4" – 5'8"
5'6" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
|---|---|
| Fork | RockShox 35 Silver, 140mm of Travel, TurnKey Lock-Out, 15x110mm,1.5" Tapered Steer Travel: 140mm |
| Shock | RockShox Monarch R, 200x57mm Travel: 130mm |
| Bottom Bracket | SRAM DUB |
| Headset | FSA No. 57 Sealed Cartridge |
| Stem | DB35 Aluminum 35mm Reach, 35mm Bar Bore |
| Handlebar | DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore |
| Saddle | WTB Volt |
| Seatpost | Kind Shock EXA Form 900i, Internal Dropper, 31.6mm with Westy Lever Type: Dropper |
| Pedals | DB Aluminum Platform w/Replaceable Pins |
| Grips | DB Lock-On Grip |
| Rear Derailleur | SRAM SX Eagle, 12 Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | SRAM SX w/Steel 32T Direct Mount |
| Shifters | SRAM SX Eagle, 12 Speed |
| Cassette | SRAM PG1210, 12 Speed, 11-50T |
| Chain | SRAM SX Eagle, 12 Speed |
| Brakes | SRAM Level Type: SRAM Level Hydraulic Disc |
| Brake Levers | SRAM Level |
| Rims | Diamondback Blanchard 28R, Taped for Tubeless, 32h |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing |
| Rear Hub | 32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette |
| Tires | Maxxis Minion DHF 29x2.3" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR II 29x2.3" EXO, TR (Tubeless Ready), Folding |
