Shimano GH20 Cassette, 7speed, 12-32 Tooth

SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc

Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)

Formula DC-20F, 6 Bolt, Disc, Quick Release

Formula DC-22-7R, 6 Bolt, Disc, Quick Release

Aluminum MTB DDM-2 Double Wall, 32 hole, Not Taped

Shimano M310 3x7 Speed Rapid Fire Shifter

Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25", Non Tubeless Tire

Description
At home on dirt, gravel, and pavement, the Hatch 3 keeps the adventure going when it’s time to explore the path less travelled. To give you the ideal balance of stability and easy handling, the Hatch features Progressive Wheel Sizing, using the wheel size that best matches the rider size. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you’ll always find a comfortable pedaling pace, and Tektro hydraulic disc brakes provide great stopping power. Built-in eyelets allow you to mount a rear rack and fenders so you can also use the Hatch as a commuter bike or city bike.

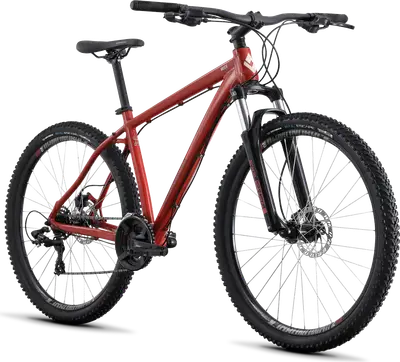

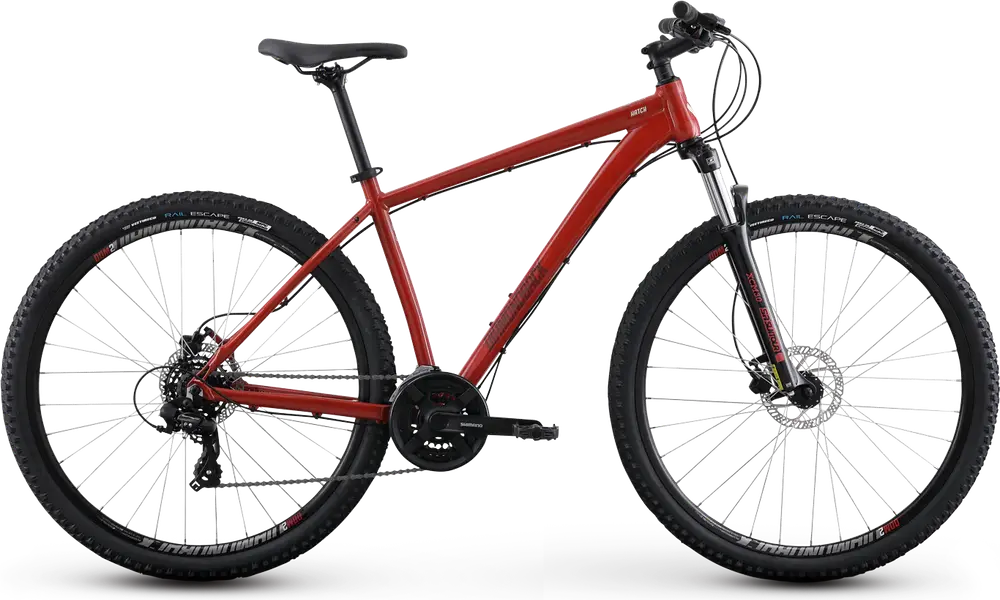

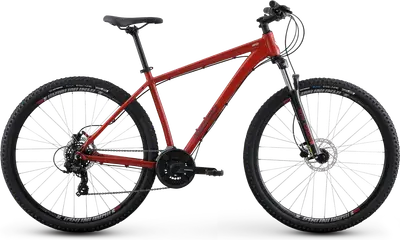

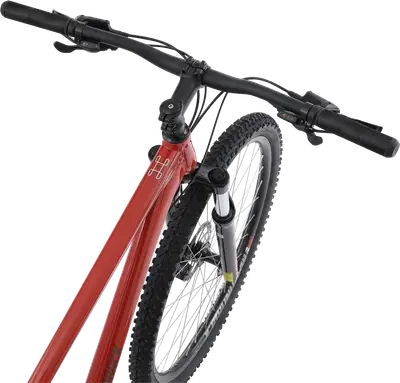

Diamondback Hatch 3

A 27.5″ aluminum frame hardtail trail bike with mid-range components.

Frame	Aluminum
Suspension	Hardtail, 140mm
Fork	Suntour XCM
Wheels	27.5″ Aluminum
Drivetrain	3 × 7
Groupset	Tourney, Altus
Brakes	Tektro Hydraulic Disc

Frame	Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
Fork	SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc Travel: 140mm Spring Type: Coil
Bottom Bracket	Sealed Cartridge Bearing
Headset	1-1/8" Semi Integrated Cartridge Bearing
Stem	Aluminum MTB 31.8 Bar Bore Stem
Handlebar	Aluminum 31.8mm Bar, 25mm Rise
Saddle	MTB Saddle
Seatpost	Aluminum 27.2 Post with 15mm Offset Type: Rigid
Pedals	Wellgo Plastic Body
Grips	MTB Grip

Rear Derailleur	Shimano Tourney TX800
Front Derailleur	Shimano Tourney TY500 Dual Pull
Crank	Shimano Tourney TY301,42/34/24t
Shifters	Shimano M310 3x7 Speed Rapid Fire Shifter
Cassette	Shimano GH20 Cassette, 7speed, 12-32 Tooth
Chain	KMC Z7
Brakes	Tektro M275 Hydraulic Type: Tektro Hydraulic Disc
Brake Levers	Tektro M275 Hydraulic

Rims	Aluminum MTB DDM-2 Double Wall, 32 hole, Not Taped
Spokes	Stainless Steel
Front Hub	Formula DC-20F, 6 Bolt, Disc, Quick Release
Rear Hub	Formula DC-22-7R, 6 Bolt, Disc, Quick Release
Tires	Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25", Non Tubeless Tire

2025 DiamondbackHatch 3

2025 Diamondback
Hatch 3
