2020 Diamondback

Catch 2

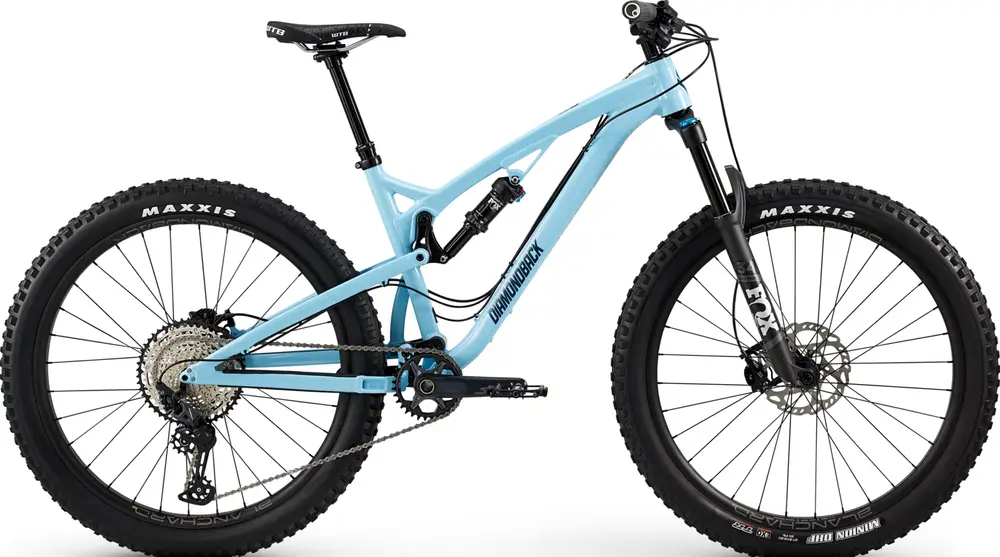

A 27.5″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range

Manufacturer Price

$3,350
FrameAluminum
SuspensionFull, 130 / 130mm
ForkFox Rhythm Float 34
ShockFox Float DPS Performance
Wheels27.5″ Aluminum
Drivetrain1 × 12
GroupsetSLX
BrakesHydraulic Disc
SeatpostDropper
View on diamondback.comLearn about Diamondback
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Catch 2
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

26 mph

Catch 2

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube

BB Standard: BSA, Threaded

Fork

Fox Rhythm 34 27.5"+/29", 130mm Travel, Grip Dampener w/Sweep Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle

Travel: 130mm

Spring Type: Air

Shock

Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width

Travel: 130mm

Spring Type: Air

Bottom Bracket

ShimanoBB-52

Headset

FSA No. 57, Sealed Cartridge

Stem

Factor Components F355, 35mm Reach, 35mm Bar Bore

Handlebar

DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore

Saddle

WTB Volt Steel

Seatpost

Kindshock Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote

Type: Dropper

Pedals

DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins

Grips

Ergon GE10 Evo Lock-On

Groupset
Rear Derailleur

Shimano SLX M7100 Shadow Plus, 12 Speed, SGS

Crank

Shimano SLX M7100, 32T

Shifters

Shimano SLX M7100, 12 Speed

Cassette

Shimano SLX M7100 Cassette, 12 Speed, 10-51T

Chain

Shimano SLX M7100, 12 Speed

Brakes

Shimano SLX M7100, 2 Piston w/180mm Front /180mm Rear RT70 Rotors

Type: Hydraulic Disc

Brake Levers

Shimano SLX

Wheels
Rims

Diamondback Blanchard 38R, 6069 Aluminum Tubeless Ready, 32h

Spokes

14g Stainless Steel

Front Hub

Novatec SL-Team, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing

Rear Hub

Novatec SL-Team, 32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette

Tires

Maxxis Minion DHF 27.5x2.8" EXO, TLR, Folding / Maxxis Minion DHR II 27.5x2.8" EXO, TLR, Folding
