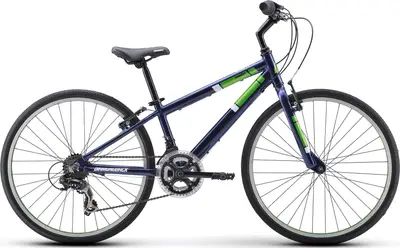

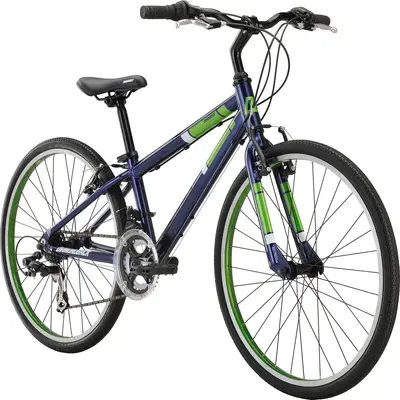

Insight 24"
A 24″ aluminum frame fitness bike with mid-range components and rim brakes.
Manufacturer Price
$309Weight | 25.6 lbs |
---|---|
Frame | Aluminum |
Suspension | Rigid |
Fork | Aluminum |
Wheels | 24″ Aluminum |
Drivetrain | 2 × 7 |
Groupset | Tourney |
Brakes | Rim |
For This Bike
4'6" – 5'1"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2017 · Carrie Wren
The Diamondback Insight 20 kid's bike is a quality bike to introduce your little rider to multi-gears, longer distances, and more varied elevations. Read our review!
Frame | Alloy |
---|---|
Fork | Insight Jr. Aero alloy straight blade |
Bottom Bracket | Square taper 5-piece |
Headset | Threaded 1-1/8" |
Stem | Alloy quill |
Handlebar | Steel Jr riser |
Saddle | Jr padded 2-panel |
Seatpost | Alloy micro-adjust 27.2mm Type: Rigid |
Pedals | Resin |
Rear Derailleur | Shimano Tourney TY300 |
---|---|
Front Derailleur | Shimano TZ-30, 31.8mm band clamp |
Crank | 165mm alloy with chain guard, 42/34 |
Shifters | Shimano RS35 Revo 7-speed twist shift |
Cassette | Shimano Tourney TZ21 freewheel,14-28t |
Chain | KMC Z51, 7-speed |
Brakes | Alloy linear-pull with reach adjust Rim Brake Type: Rim |
Brake Levers | Alloy linear-pull with reach adjust |
Rims | 32h R-1000 alloy |
---|---|
Front Hub | 32h nutted |
Rear Hub | 32h nutted, freewheel |
Tires | Kenda K-184, 24 x 1-3/8" (37-540) |
