Shimano MT500 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors

Rockshox Reba RL 29", Solo Air, 32mm Stanchion, 100mm Travel, w/ Rebound Adjust, Lockout, 100x15mm Thru-axle, 1.5" Taper Steerer Tube

Overdrive 29" Butted 6061-T6 Aluminum, Tapered Head Tube, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs, 148x12mm Dropouts w/ Replaceable Hanger

32h Alloy 15MM Thru-Axle w/ Center Lock Disc Mount

Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore

FSA NO.42, Sealed Cartridge for Tapered Headtube

32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette w/ CNC Disc Mount

Diamondback Blanchard 25, Tubeless Compatible

The classic 29er hardtail — that’s the best way to describe our premier aluminum model. We’ve taken our strong and light aluminum 29er frame and increased the stiffness and handling precision by adding Boost 148 rear spacing and thru-axles front and rear. We’ve also dressed the bike in an envy-provoking parts package that includes a plush and confidence-inspiring RockShox Reba RL fork, strong Shimano hydraulic disc brakes, and a SRAM GX/NX 1x drivetrain that provides you plenty of granny gear for the ugliest of climbs, without the complexity of a traditional front derailleur system.
Thanks to its 29er wheels, cleaning tricky rock sections and log-overs is a whole lot less tricky on this big wheeler, and since you can never have enough traction — particularly on a hardtail — we went the extra step and equipped this Overdrive with our own Blanchard 25 tubeless ready wheelset.

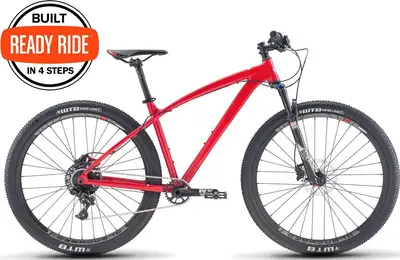

Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

Diamondback Overdrive 29 2

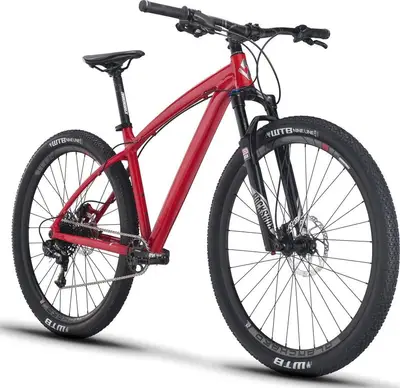

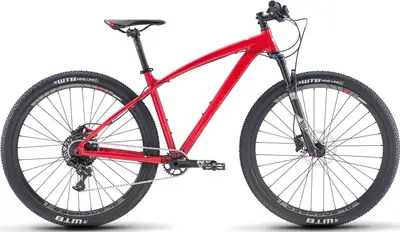

A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	RockShox Reba
Wheels	29″ Aluminum
Drivetrain	1 × 11
Groupset	GX, NX
Brakes	Shimano Deore Hydraulic Disc

Frame	Overdrive 29" Butted 6061-T6 Aluminum, Tapered Head Tube, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs, 148x12mm Dropouts w/ Replaceable Hanger

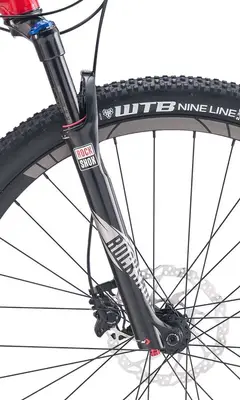

Fork	Rockshox Reba RL 29", Solo Air, 32mm Stanchion, 100mm Travel, w/ Rebound Adjust, Lockout, 100x15mm Thru-axle, 1.5" Taper Steerer Tube Travel: 100mm Spring Type: Air
Bottom Bracket	SRAM GXP
Headset	FSA NO.42, Sealed Cartridge for Tapered Headtube
Stem	DB 3D Forged, 7° Rise, 31.8 Bar Bore

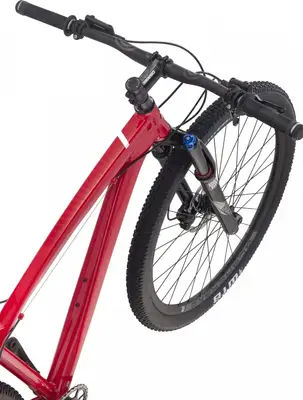

Handlebar	Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Saddle	DB Race M-series Saddle
Seatpost	DB Alloy Micro Adjust, 30.9mm Type: Rigid
Pedals	DB4L Alloy Platform w/ Replaceable Pins
Grips	New DB "Flanged" Lock-on, 135mm Silcone

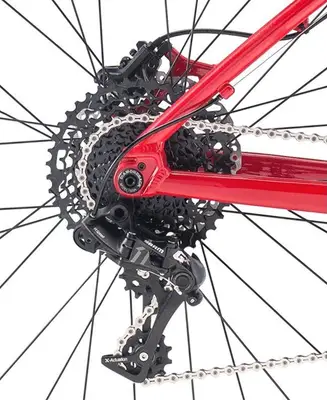

Rear Derailleur	SRAM GX X-Horizon, 11 Speed

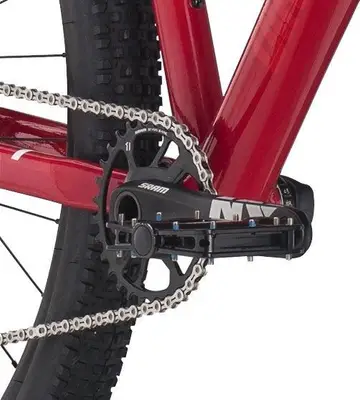

Crank	SRAM NX 1x, w/ X-Sync 30T Chain Ring
Shifters	SRAM GX 11 Speed X-Actuation Trigger
Cassette	SRAM PG1130, 11 Speed, 11-42T
Chain	KMC X11EL, 11 Speed
Brakes	Shimano MT500 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors Type: Shimano Deore Hydraulic Disc
Brake Levers	Shimano MT500 Hydraulic

Rims	Diamondback Blanchard 25, Tubeless Compatible
Spokes	14g Stainless Steel
Front Hub	32h Alloy 15MM Thru-Axle w/ Center Lock Disc Mount
Rear Hub	32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette w/ CNC Disc Mount
Tires	WTB Nineline, 29x2.25"

2018 DiamondbackOverdrive 29 2

2018 Diamondback
Overdrive 29 2
