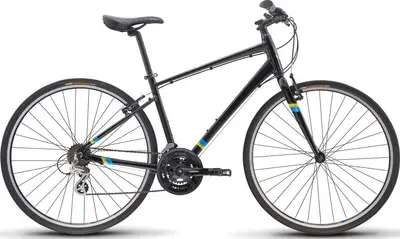

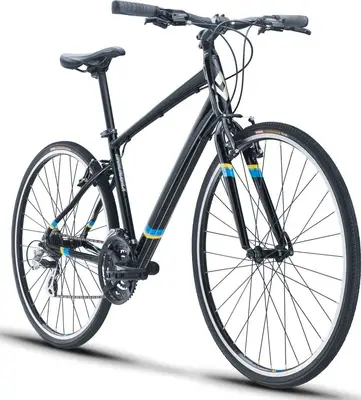

2018 Diamondback
Insight 1
A 700c aluminum frame fitness bike with mid-range components and rim brakes.
Compare the full range
Manufacturer Price
$449| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Altus, Tourney |
| Brakes | Rim |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2017 · Carrie Wren
The Diamondback Insight 20 kid's bike is a quality bike to introduce your little rider to multi-gears, longer distances, and more varied elevations. Read our review!
| Frame | Insight 6061-T6, Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, VCS Compliant Stays, w/ Replaceable Derailleur Hanger |
|---|---|
| Fork | Insight Integrated Ferous Aero Hi-Ten Steel, Straight Blade |
| Bottom Bracket | Sealed Cartridge |
| Headset | FSA IS-3/NO.11 Integrated Style |
| Stem | DB 3D Forged, 7° Rise, 31.8 Bar Bore |
| Handlebar | DB, Low rise, 630mm Wide, 31.8mm Bar Bore |
| Saddle | DB Performance Hybrid w/ Gel |
| Seatpost | Alloy Micro Adjust, 27.2mm Type: Rigid |
| Pedals | DB Toe Clip Compatible Platform |
| Grips | Diamondback Dual Density Comfort Grip |

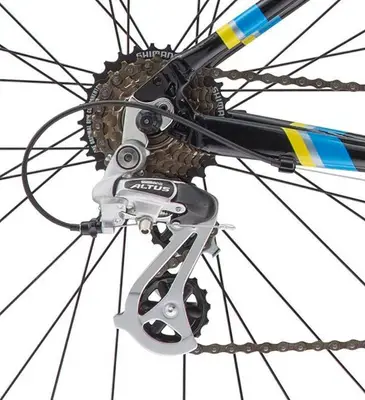

| Rear Derailleur | Shimano Altus 7 Speed |
|---|---|
| Front Derailleur | Shimano Tourney TY510, Top Swing, Dual Pull, 31.8mm Clamp Diameter |

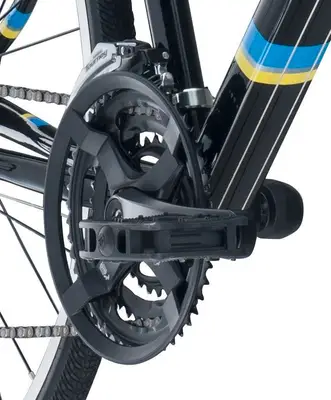

| Crank | Shimano Tourney TY501 w/ Chainguard, 48/38/28T |
| Shifters | Shimano EF-51 Easyfire, 3x7 Speed |
| Cassette | Shimano TZ-21 7 Speed Freewheel, 14-28T |
| Chain | KMC-Z51, 7 Speed |
| Brakes | Alloy Linear Type: Rim |
| Brake Levers | Shimano EF-51 |
| Rims | 32h Equation R23 Doublewall |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 32h Alloy QR |
| Rear Hub | 32h Alloy QR, Freewheel |
| Tires | Kenda Kwick Trax, 700x32c |
