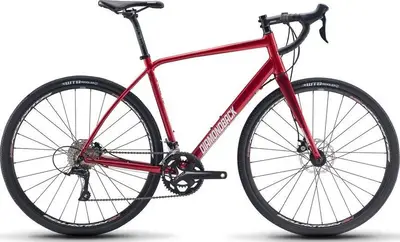

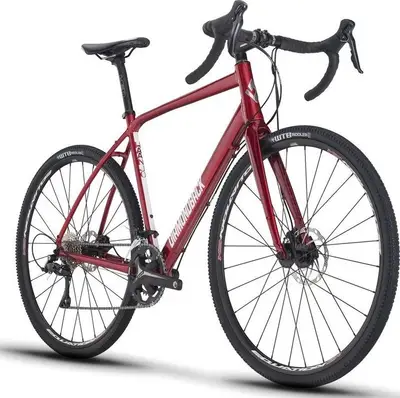

Name: 2018 Diamondback Haanjo 3
Brand: Diamondback
Rating: 4.6240000000000006 (3 reviews)

Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors

DB SPF Formed Alloy Gravel Disc w/ 1.5" Tapered Steerer Tube

DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Replaceable Hanger

HED Eroica, 7050 Alloy, 16 Degree Flare, 31.8mm Bar Bore

HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore

Your next bike shouldn't limit you - it should open up a world of new possibilities. Enter the Haanjo 3, a bike that can handle any kind of road - paved or not - that calls your name.
We equipped the Haanjo 3 with a butted and formed aluminum frame that delivers a great balance of comfort and durability. Our Endurance Geometry is also designed to place you in a more comfortable position that's perfect for both long rides and rough roads.
The Shimano Sora 2x9-speed drivetrain provides ample gearing for those long hauls. and our Gravel Disc alloy fork keeps the steering pinpoint precise without adding extra weight to the mix. Where can you ride the Haanjo 3? Wherever you want. There are no limits with this one.

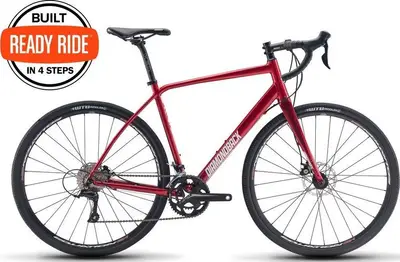

Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

Diamondback Haanjo 3

50cm

53cm

56cm

59cm

An aluminum frame gravel bike with mid-range components and tektro mechanical disc brakes.

The Diamondback Haanjo EXP Carbon comes with a retro spec and 650b wheels to help with your gravel adventure. We review the adventure bike option.

CX Magazine

Review: Diamondback Haanjo EXP / 5C Carbon Bike for Gravel / Adventure

This versatile flat-bar commuter bike has the gears and tires to handle longer gravel rides on the weekend

Bicycling

Diamondback Haanjo Review

Did someone say adventure? Maybe a commute? Sure thing. Light bikepacking duty? Always wanted to try it! Diamondback’s Haanjo Trail is equally adept at

Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	2 × 9
Groupset	Sora
Brakes	Tektro Mechanical Disc

Frame	DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Replaceable Hanger

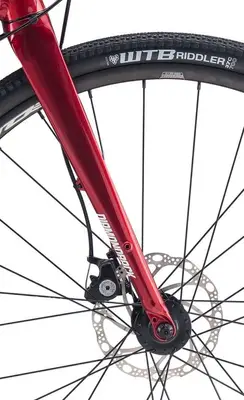

Fork	DB SPF Formed Alloy Gravel Disc w/ 1.5" Tapered Steerer Tube
Bottom Bracket	FSA Mega Exo
Headset	FSA No.42, Sealed Cartridge
Stem	HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar	HED Eroica, 7050 Alloy, 16 Degree Flare, 31.8mm Bar Bore
Saddle	DB Eldorado
Seatpost	HED Eroica, 6061 Alloy, 27.2mm Type: Rigid
Pedals	DB4L Alloy Platform
Grips	Diamondback Endurance Gel Tape

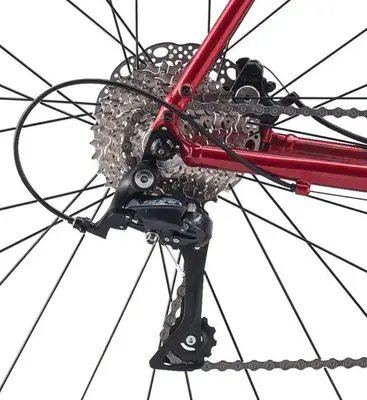

Rear Derailleur	Shimano Sora RD-R3000, 9 Speed
Front Derailleur	Shimano Sora FD-R3000, 31.8 Band Clamp

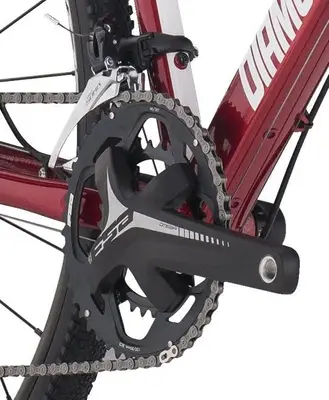

Crank	FSA Omega Adventure Mega, 46/30T
Shifters	Shimano Sora ST-R3000, 2x9 Speed
Cassette	Shimano HG400, 9 Speed Cassette, 11-32T
Chain	KMC Z99, 9 Speed
Brakes	Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors Type: Tektro Mechanical Disc
Brake Levers	Shimano Sora ST-R3000

Rims	Diamondback Equation, 28h, Doublewall
Spokes	14g Stainless Steel
Front Hub	28h Alloy Quick Releaset
Rear Hub	28h Alloy Quick Release, Cassette
Tires	WTB Riddler Comp, 700x37c
