Shimano Tourney TY501 w/ Chainguard, 48/38/28T

Clarity Integrated Ferous Aero Hi-Ten Steel, Straight Blade

Clarity 6061-T6 Women's Specific Geometry, Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, VCS Compliant Stays, w/ Replaceable Derailleur Hanger

Shimano Tourney TY510, Top Swing, Dual Pull, 31.8mm Clamp Diameter

DB, Low rise, 600mm Wide, 31.8mm Bar Bore

The Clarity 1 is an outstanding value. Look closely and you see it’s brimming with many of the same features you’d normally on find on more expensive models. Let’s start with the frame. Made from ultra-light aluminum, the Clarity’s women’s-specific frame features an extra-low, standover height that makes getting on and off the bike a breeze, every single time.
We also added female-friendly touch points to keep you comfortable on longer rides. The seat feels right and the handlebars are just where you want them. Finally, smooth-rolling 700c road wheels and 21 gears keep your speed up on rides of any length, from trips to the store to weekend excursions into the country.
Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

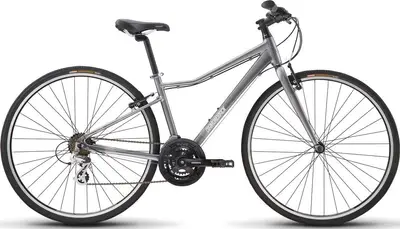

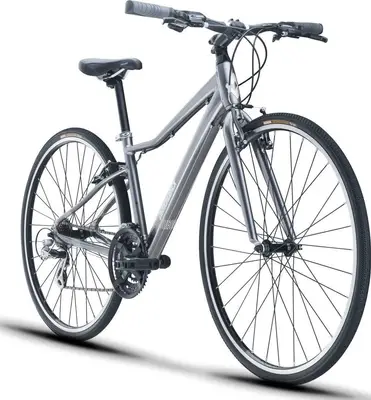

Diamondback Clarity 1

A 700c aluminum frame women’s fitness bike with mid-range components and rim brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Drivetrain	3 × 7
Groupset	Tourney, Altus
Brakes	Rim

Frame	Clarity 6061-T6 Women's Specific Geometry, Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, VCS Compliant Stays, w/ Replaceable Derailleur Hanger
Fork	Clarity Integrated Ferous Aero Hi-Ten Steel, Straight Blade
Bottom Bracket	Sealed Cartridge
Headset	FSA IS-3/NO.11 Integrated Style
Stem	DB 3D Forged, 7° Rise, 31.8 Bar Bore

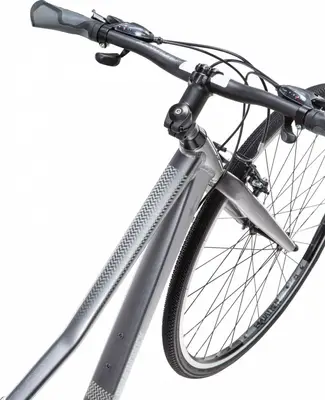

Handlebar	DB, Low rise, 600mm Wide, 31.8mm Bar Bore
Saddle	DB Performance Hybrid w/ Gel
Seatpost	Alloy Micro Adjust, 27.2mm Type: Rigid
Pedals	DB Toe Clip Compatible Platform
Grips	Diamondback Dual Density Comfort Grip

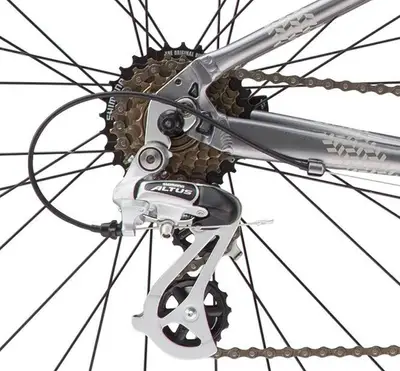

Rear Derailleur	Shimano Altus 7 Speed
Front Derailleur	Shimano Tourney TY510, Top Swing, Dual Pull, 31.8mm Clamp Diameter

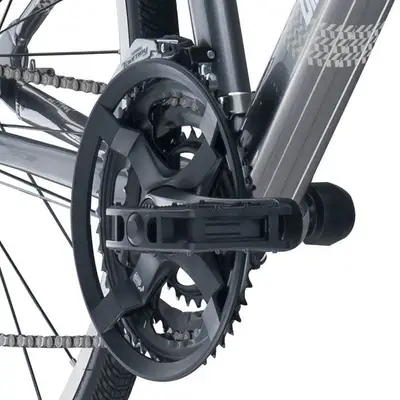

Crank	Shimano Tourney TY501 w/ Chainguard, 48/38/28T
Shifters	Shimano EF-51 Easyfire, 3x7 Speed
Cassette	Shimano TZ-21 7 Speed Freewheel, 14-28T
Chain	KMC-Z51, 7 Speed
Brakes	Alloy Linear Type: Rim
Brake Levers	Shimano EF-51

Rims	32h Equation R23 Doublewall
Spokes	14g Stainless Steel
Front Hub	32h Alloy QR
Rear Hub	32h Alloy QR, Freewheel
Tires	Kenda Kwick Trax, 700x32c

2018 DiamondbackClarity 1

2018 Diamondback
Clarity 1
