Shimano M315 Hydraulic Disc, w/ 180mm Front and Rear Rotors

Raceface Æffect Cinch w/ Steel 30T "Narrow Wide"

Rockshox Recon RL, Solo Air, 130mm Travel, 32mm Stanchions, 15mm Thru-Axle, Tapered Steerer Tube, w/ Rebound and Lock Out Adjust

Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Aggressive Geometry, 142x12mm Rear Axle w/ Replaceable Hanger

32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount

Raceface Chester, 780mm Wide, 35 Bar Bore

FSA NO.57, Sealed Cartridge for Tapered Headtube

32h Alloy, Boost 142x12mm Thru-axle, 4 Sealed Cartridge Bearings, Cassette, w/ CNC Disc Mount

Rock Shox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm

Race Face Chester, 40mm Reach, 35 Bar Bore

With the Atroz 3, we took the proven and refined single-pivot full-suspension design and upped the ante in a big way. It’s a full RockShox affair when it comes to suspension, including the five-inch travel Recon RL air-sprung fork with 32mm stanchions and a quick release thru-axle. Likewise, we outfitted this model with SRAM’s NX 11-speed drivetrain — all the simplicity and durability of a single-ring drivetrain, with the low gearing you once needed a front derailleur to obtain. Shimano hydraulic disc brakes provide plenty of stopping power (particularly with 180mm rotors, front and rear), and we finished the bike off with a Race Face Chester bar and stem combo.
Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

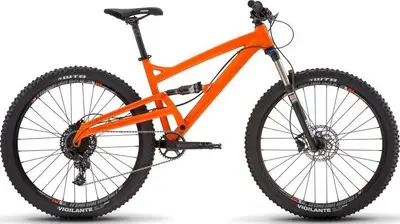

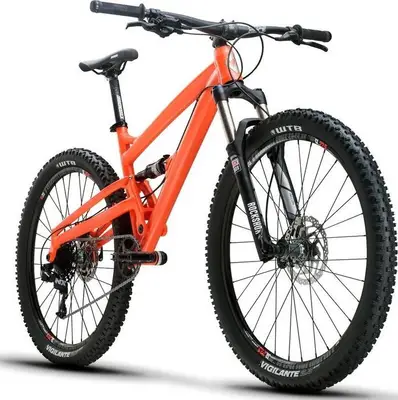

Diamondback Atroz 3

A 27.5″ aluminum frame full suspension crosscountry bike with upper mid-range components.

Frame	Aluminum
Suspension	Full, 100 / 130mm
Fork	RockShox Recon Silver RL
Shock	RockShox Monarch R
Wheels	27.5″ Aluminum
Drivetrain	1 × 11
Groupset	NX
Brakes	Shimano Hydraulic Disc

Frame	Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Aggressive Geometry, 142x12mm Rear Axle w/ Replaceable Hanger

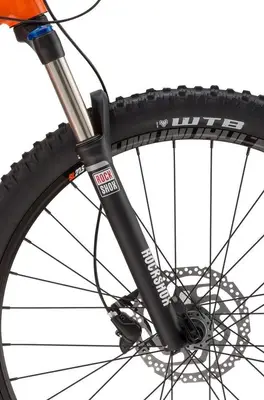

Fork	Rockshox Recon RL, Solo Air, 130mm Travel, 32mm Stanchions, 15mm Thru-Axle, Tapered Steerer Tube, w/ Rebound and Lock Out Adjust Travel: 130mm Spring Type: Air
Shock	Rock Shox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm Travel: 100mm
Headset	FSA NO.57, Sealed Cartridge for Tapered Headtube

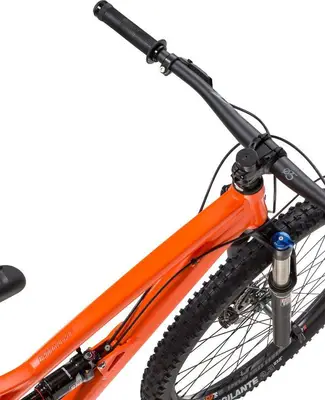

Stem	Race Face Chester, 40mm Reach, 35 Bar Bore
Handlebar	Raceface Chester, 780mm Wide, 35 Bar Bore
Saddle	DB Sync'r Saddle
Seatpost	Alloy Micro Adjust, 30.9mm Type: Rigid
Pedals	DB4L Alloy Platform
Grips	New DB "Flanged" Lock-on, 135mm Silcone

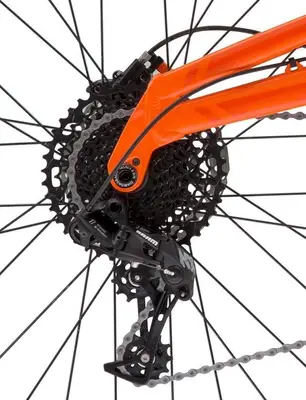

Rear Derailleur	SRAM NX X-Horizon, 11 Speed
Crank	Raceface Æffect Cinch w/ Steel 30T "Narrow Wide"
Shifters	SRAM NX 11 Speed X-Actuation Trigger
Cassette	SRAM PG1130, 11 Speed, 11-42T
Chain	KMC X11EL, 11 Speed
Brakes	Shimano M315 Hydraulic Disc, w/ 180mm Front and Rear Rotors Type: Shimano Hydraulic Disc
Brake Levers	Shimano M315 Hydraulic

Rims	32h Diamondback SL-27.5 Doublewall
Spokes	14g Stainless Steel
Front Hub	32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
Rear Hub	32h Alloy, Boost 142x12mm Thru-axle, 4 Sealed Cartridge Bearings, Cassette, w/ CNC Disc Mount
Tires	WTB Vigilante, 27.5x2.3"

2018 DiamondbackAtroz 3

2018 Diamondback
Atroz 3
