2017 Diamondback
Sync'r 24

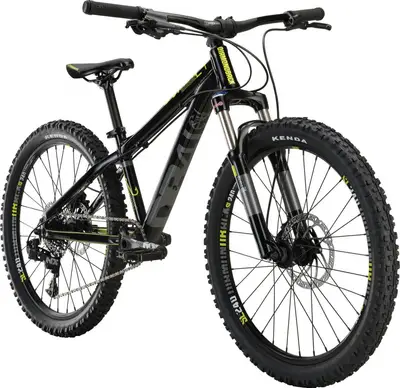

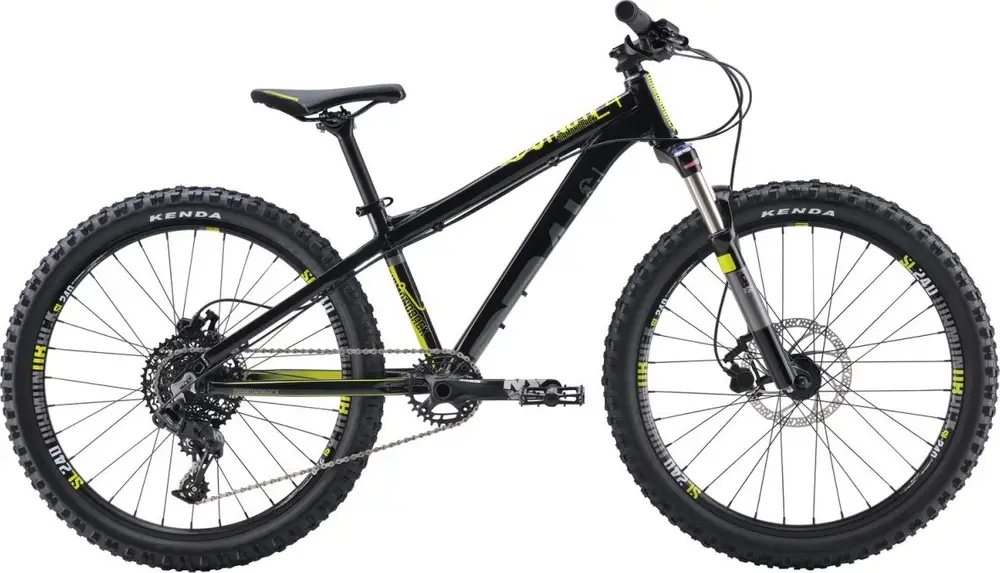

A 24″ aluminum frame mountain youth bike with upper mid-range components and hydraulic disc brakes.
| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 80mm |
| Fork | Suntour XCR |
| Wheels | 24″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | NX |
| Brakes | Hydraulic Disc |
For This Bike
| Frame | 6061-T6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replacable Hanger |
|---|---|

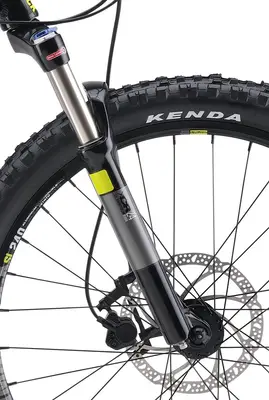

| Fork | SR Suntour XCR 24" w/ 80mm Travel, 28mm Stanchions, Magnesium Lowers, w/ Preload Adjust Travel: 80mm Spring Type: Coil |
| Bottom Bracket | SRAM GXP |
| Headset | FSA IS-3/NO.11 Integrated Style |
| Stem | Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore |
| Handlebar | Diamondback "Pro Bar" 720mm Wide |
| Saddle | DB Sync'r Jr. Saddle |
| Seatpost | DB Alloy Micro Adjust 30.9mm Type: Rigid |
| Pedals | DB4L Alloy Platform |
| Grips | DB4L 135mm Kraton |

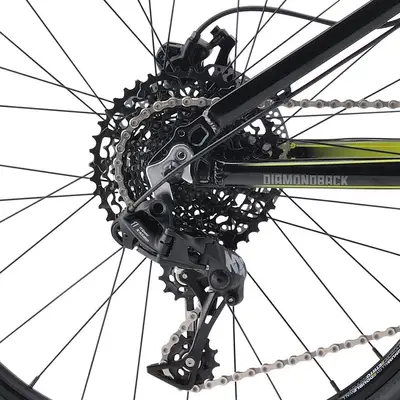

| Rear Derailleur | SRAM NX X-Horizon, 11 Speed |
|---|---|

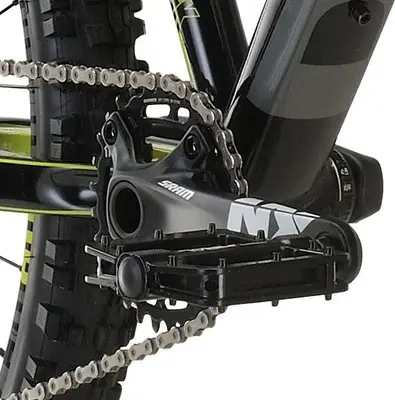

| Crank | SRAM NX 1x, w/ X-Sync 30T Chain Ring |
| Shifters | SRAM NX 11 Speed X-Actuation Trigger |
| Cassette | SRAM PG1130, 11 Speed, 11-42T |
| Chain | SRAM PC-1130, 11 Speed, Power Link |
| Brakes | Tektro Auriga Hydraulic Disc w/ 180mm Front /160mm Rear Rotors Type: Hydraulic Disc |
| Brake Levers | Tektro 2 Finger Hydraulic w/ Reach Adjust |
| Rims | 32h Diamondback SL-7 Doublewall |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 32h SL-7 Alloy w/ CNC Disc Mount |
| Rear Hub | 32h SL-7 Alloy Cassette w/ CNC Disc mount |
| Tires | Kenda Kinetics 24x2.35" |
