Name: 2017 Diamondback Serios F
Brand: Diamondback
Rating: 4.992 (1 reviews)

Shimano Ultegra CS-6800, 11 Speed, 11-28T

Diamondback Serios Aero Time Trial Fork, Unidirectional Carbon,1-3/8" Taper, Continuous Fiber Technology (CFT)

Serios, UCI Certified, Aero TimeTrial Frameset, Unidirectional Carbon, 1-3/8" Tapered Headtube, Press-Fit 30 BB, Di2 Compatible Internal Cable Routing

HED Corsair TT, 42cm Flat, 31.8mm Bar Bore, w/ Carbon Lazy S Bend

Shimano Di2 SW-R671, Remote 2 Button Bar End Shifters

DB Carbon TT w/ Full Custom HED Corsair Integration

The dark art of aerodynamics doesn’t always follow intuition: when Diamondback teamed with industry experts HED and KQ Studios to design the Serios F, they ended up with revolutionary profiles that produce only half the drag of competitors’ bikes. A champ in the wind tunnel, it’s outside where it excels. In the real world of crosswinds and corners, this bike outperforms all others.

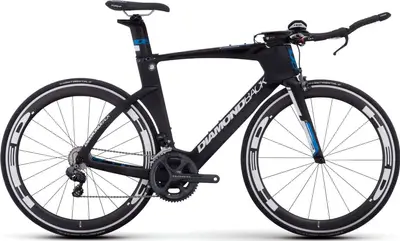

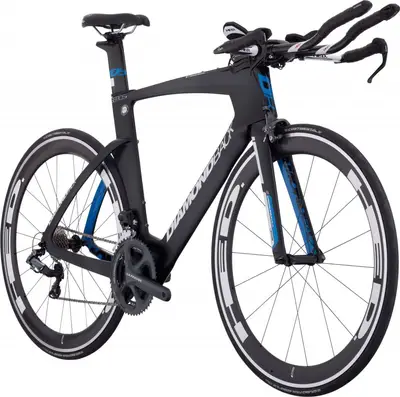

Diamondback Serios F

A carbon frame triathlon bike with high-end components and shimano ultegra rim brakes.

A huge bike for a rider that puts out huge watts. Zirbel will ride this Serios TT bike in the Amgen Tour's stage 6, which should suit him

Frame	Carbon
Fork	Carbon
Wheels	700c Carbon
Drivetrain	2 × 11 Electronic
Groupset	Ultegra, Ultegra Di2
Brakes	Shimano Ultegra Rim

Frame	Serios, UCI Certified, Aero TimeTrial Frameset, Unidirectional Carbon, 1-3/8" Tapered Headtube, Press-Fit 30 BB, Di2 Compatible Internal Cable Routing BB Standard: PF30, Press Fit
Fork	Diamondback Serios Aero Time Trial Fork, Unidirectional Carbon,1-3/8" Taper, Continuous Fiber Technology (CFT)
Bottom Bracket	Praxis PF30-Shimano Conversion
Headset	FSA IS-2, 1-1/8"/1-3/8" Tapered
Stem	DB Carbon TT w/ Full Custom HED Corsair Integration
Handlebar	HED Corsair TT, 42cm Flat, 31.8mm Bar Bore, w/ Carbon Lazy S Bend
Saddle	ISM Prologue w/ Cromoly Rails
Seatpost	DB TT Aero Carbon w/ Ritchey Seat Clamp Type: Rigid
Pedals	Wellgo Alloy Road
Grips	EVA Cork w/ Gel

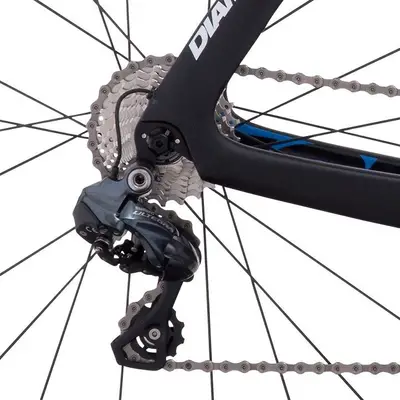

Rear Derailleur	Shimano Ultegra Di2 RD-6870, 11 Speed
Front Derailleur	Shimano Ultegra Di2 FD-6870, Braze-on

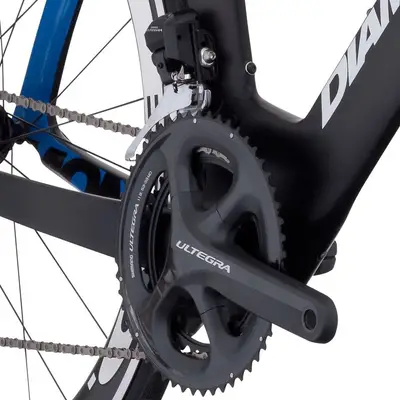

Crank	Shimano Ultegra FC-6800, 53/39T
Shifters	Shimano Di2 SW-R671, Remote 2 Button Bar End Shifters
Cassette	Shimano Ultegra CS-6800, 11 Speed, 11-28T
Chain	Shimano HG701, 11 Speed
Brakes	Shimano Ultegra BR-6810, Direct Mount Type: Shimano Ultegra Rim
Brake Levers	Shimano Ultegra ST-6871 Di2

Rims	HED Jet 6 Plus
Spokes	HED Stainless Steel Bladed
Front Hub	HED Jet 6 Plus, 18h
Rear Hub	HED Jet 6 Plus, 24h, Cassette
Tires	Continental Grandprix 4000 S II. 700x23c
