Tektro Auriga Hydraulic Disc Brake Levers

Tektro Auriga Hydraulic Disc, w/ 180mm Front / 160mm Rear Rotors

SR Suntour Radion 27.5" Plus Suspension Fork, 120mm Travel, Air Spring, 6061 Forged Alloy Crown, Alloy Tapered Steerer Tube, 32mm Alloy Stanchions, 15mm Thru-axle

Rely Women's 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, ISCG-05 Tabs, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger

32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount

DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore

FSA NO.42, Sealed Cartridge for Tapered Headtube

32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, Cassette

Diamondback Blanchard 38, Tubeless Compatible, 32h

Agile and confident, fast and fun. The Rely Trail is a women’s hardtail that’s built for riders who value both simplicity and performance. Based around a 27.5 Plus wheel, this bike locks into a groove and doesn’t let go. Even for a hardtail, the Rely Trail climbs above expectations, finding more grip on loose and slippery surfaces than you’ll believe. A 1×10 drivetrain offers a wide range of gears without necessitating a front derailleur, making for a smooth and quiet ascent. When you’ve reached the top the fun really begins as 120mm of fork travel combines with 3.5” wide tires for amazing float and traction. The overall result? The Rely Trail is a ripping women’s bike that’s an absolute blast to ride.

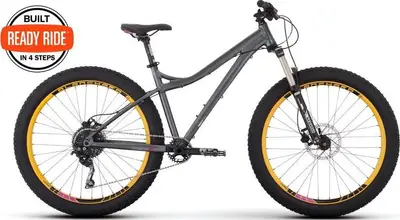

Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

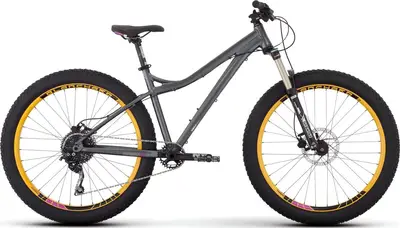

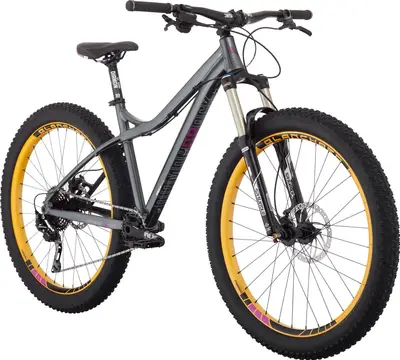

Diamondback Rely Trail

A 27.5″ aluminum frame hardtail women’s trail bike with upper mid-range components.

Weight	29.8 lbs
Frame	Aluminum
Suspension	Hardtail, 120mm
Fork	Suntour
Wheels	27.5″ Aluminum
Groupset	Deore
Brakes	Tektro Hydraulic Disc

Frame	Rely Women's 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, ISCG-05 Tabs, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger

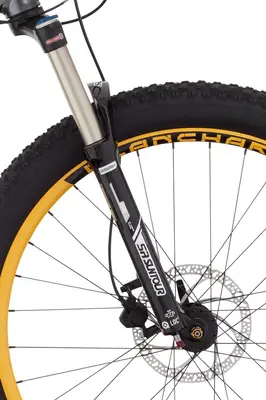

Fork	SR Suntour Radion 27.5" Plus Suspension Fork, 120mm Travel, Air Spring, 6061 Forged Alloy Crown, Alloy Tapered Steerer Tube, 32mm Alloy Stanchions, 15mm Thru-axle Travel: 120mm Spring Type: Air
Bottom Bracket	SRAM GXP
Headset	FSA NO.42, Sealed Cartridge for Tapered Headtube
Stem	DB35 Alloy, 60mm, 35mm Bar Bore
Handlebar	DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Saddle	Devine Edition MTB Saddle
Seatpost	DB Alloy Micro Adjust 30.9mm Type: Rigid
Pedals	DB4L Alloy w/ Molded Traction Pins
Grips	DB4L "Lock on" 135mm Kraton

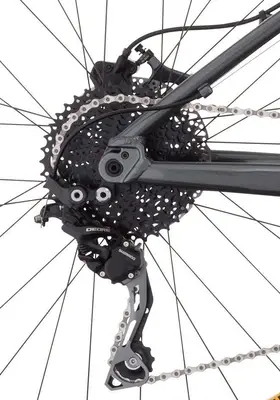

Rear Derailleur	Shimano Deore M615 Shadow Plus, 10 Speed
Crank	SRAM Powerspline
Shifters	Shimano Deore M610, 10 Speed
Cassette	Sunrace MX3-T, 10 Speed, 11-40T
Chain	KMC X10, 10 Speed
Brakes	Tektro Auriga Hydraulic Disc, w/ 180mm Front / 160mm Rear Rotors Type: Tektro Hydraulic Disc
Brake Levers	Tektro Auriga Hydraulic Disc Brake Levers

Rims	Diamondback Blanchard 38, Tubeless Compatible, 32h
Spokes	14g Stainless Steel
Front Hub	32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub	32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, Cassette
Tires	Chaoyang Big Daddy 27.5x3.5"

2017 DiamondbackRely Trail

2017 Diamondback
Rely Trail
