Tektro Aries Mechanical Disc, w/ 180mm Front / 160mm Rear Rotors

SR Suntour XCT 29", 100mm Travel, w/ Preload Adjust

DB Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, w/ Replaceable Hanger

Shimano Altus M310, Top Swing, Dual Pull, 34.9mm Clamp Diameter

DB SL318B, 685mm Wide, 15mm Rise, 31.8mm Bar Bore

32h SL-7 Alloy w/ CNC Disc Mount, Cassette

The benefits of full suspension aren’t exclusive to superbikes. The Recoil uses a simple single pivot design to deliver the smooth ride that comes from a bike that’s doing everything it can to maintain traction underneath you. Four inches of front and rear suspension travel combine with 29” wheels to take the edge off all but the biggest roots, holes, and rocks on the trail, giving you a plush and smooth ride. The frame is built using butted and formed aluminum tubing, a standard of light weight and durability in the bike world, so it’s ready to brave the mountains with you. You’ll be rolling for seasons to come with a trail-proven parts build including a Shimano 3×8 speed drivetrain, Tektro disc brakes, and solid components all around.
Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

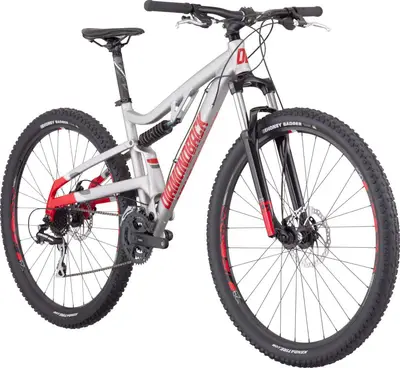

Diamondback Recoil 29

A 29″ aluminum frame full suspension crosscountry bike with modest components and tektro mechanical disc brakes.

Frame	Aluminum
Suspension	Full, 100 / 100mm
Fork	Suntour XCT
Wheels	29″ Aluminum
Drivetrain	3 × 8
Groupset	Acera, Altus
Brakes	Tektro Mechanical Disc

Frame	DB Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, w/ Replaceable Hanger
Fork	SR Suntour XCT 29", 100mm Travel, w/ Preload Adjust Travel: 100mm Spring Type: Coil
Shock	Kindshock Coil, 190x51mm w/ Oil Damping Travel: 100mm
Bottom Bracket	Sealed Cartridge
Headset	Zero Stack Ahead 1 1/8"
Stem	DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar	DB SL318B, 685mm Wide, 15mm Rise, 31.8mm Bar Bore
Saddle	DB Race Saddle
Seatpost	DB Alloy Micro Adjust 30.9mm Type: Rigid
Pedals	DB4L Alloy Platform
Grips	DB4L 135mm Kraton

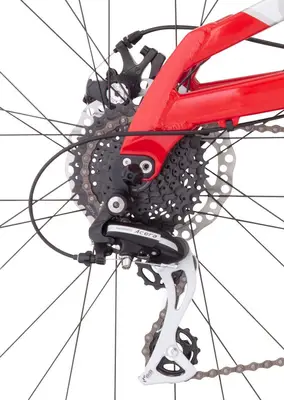

Rear Derailleur	Shimano Acera M360, 8 Speed
Front Derailleur	Shimano Altus M310, Top Swing, Dual Pull, 34.9mm Clamp Diameter

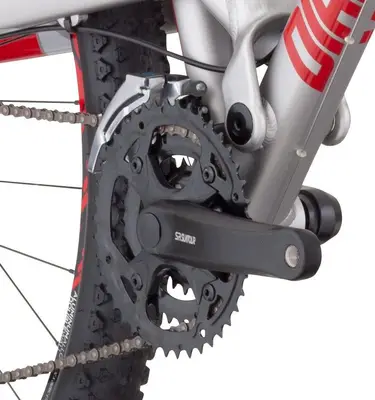

Crank	SR Suntour XCC, 42/32/22T
Shifters	Shimano Altus M310, 3x8 Speed Rapidfire
Cassette	Shimano HG-31, 8 Speed Cassette, 11-32T
Chain	KMC Z51, 8 Speed
Brakes	Tektro Aries Mechanical Disc, w/ 180mm Front / 160mm Rear Rotors Type: Tektro Mechanical Disc
Brake Levers	Tektro Alloy w/ Reach Adjust

Rims	DB SL7 29" 32h, Doublewall
Spokes	14g Stainless Steel
Front Hub	32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub	32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Tires	Kenda Honey Badger 29x 2.2"

2017 DiamondbackRecoil 29

2017 Diamondback
Recoil 29
