2017 Diamondback
Recoil

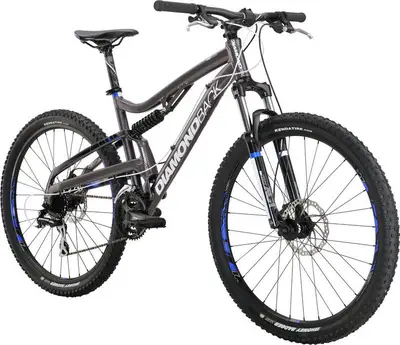

A 27.5″ aluminum frame full suspension crosscountry bike with modest components and mechanical disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 100 / 100mm |
| Fork | Suntour XCT |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 3 × 8 |
| Groupset | Acera, Altus |
| Brakes | Mechanical Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | DB Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, replaceable hanger |
|---|---|

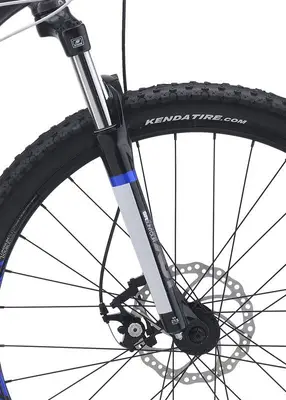

| Fork | SR XCT 100mm travel w/external preload adj. Travel: 100mm Spring Type: Coil |
| Shock | Kindshock Coil 190x51mm w/ oil Damping Travel: 100mm |
| Bottom Bracket | Sealed Cartridge |
| Headset | Zero Stack Ahead 1 1/8" |
| Stem | DB AL6061 Ahead, 31.8mm, 7° |
| Handlebar | DB SL318b, 685mm wide, 15mm Rise, 31.8mm |
| Saddle | DB Race saddle |
| Seatpost | DB SL309p Alloy Micro Adjust 30.9mm Type: Rigid |
| Pedals | DB Mtn Platform w/molded traction pins |
| Grips | DB4L 135mm Kraton |

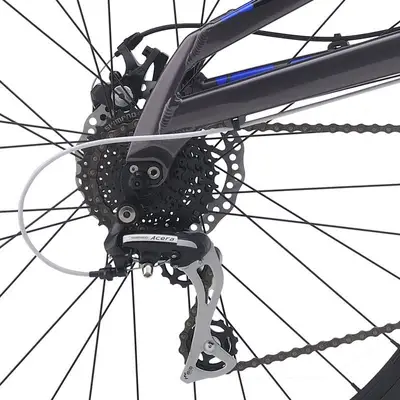

| Rear Derailleur | Shimano Acera M360 |
|---|---|
| Front Derailleur | Shimano Altus M310 dual pull, top swing, 34.9 |

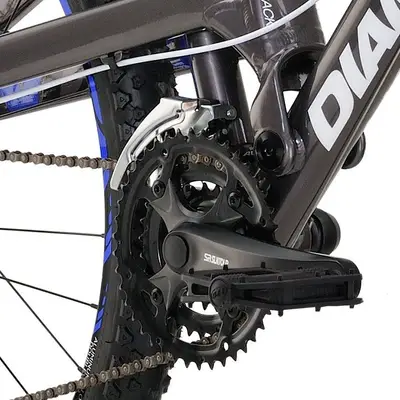

| Crank | SR Suntour XCC T202, 42/32/22T |
| Shifters | Shimano Altus M310 8spd Rapidfire |
| Cassette | Shimano HG31 8spd Cassette (11-32t) |
| Chain | KMC Z51 |
| Brakes | Tektro Aires Mechanical Disc Brake, 180/160mm Rotor Type: Mechanical Disc |
| Brake Levers | Tektro Alloy w/ reach Adjust |
| Rims | DB SL27 27.5" 32h, Doublewall |
|---|---|
| Spokes | Black 14g Stainless Steel |
| Front Hub | 32h SL-7 Alloy w/ CNC Disc Mount |
| Rear Hub | 32h SL-7 Alloy Cassette w/ CNC Disc mount |
| Tires | Kenda Honey Badger 27.5"x 2.2" |
