2017 Diamondback
Podium E'tape
A carbon frame general road e-bike with upper mid-range components and rim brakes.
Compare the full range
| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105 |
| Brakes | Rim |
For This Bike
| Frame | DB AMMP+ Carbon Technology, Specific Modulous, Monocoque Competition Road Frame, UCI Certified, Di2/EPS Compatible Internal Cable Routing, Carbon Drop Outs, w/ Taper Headtube & Press-Fit 30 BB BB Standard: PF30, Press Fit |
|---|---|
| Fork | DBR AmmP+ Carbon Competition Road Fork, Carbon Drop Outs, w/ 1.5" Taper Carbon Steerer Tube, Continuous Fiber Technology (CFT) |
| Bottom Bracket | Praxis PF30-Shimano Conversion |
| Headset | FSA NO.42, Sealed Cartridge for Tapered Headtube |
| Stem | HED Pro Tour, 7050 Alloy, +/-7° Rise, 31.8mm Bar Bore |
| Handlebar | HED Pro Tour, 6061-T6 Alloy, 80mm Reach, 135mm Drop, 31.8mm Bar Bore |
| Saddle | Prologo Zero-II, w/ Cromoly Rails |
| Seatpost | HED Tour, 27.2mm Type: Rigid |
| Pedals | Wellgo Alloy Road |
| Grips | EVA Cork w/ Gel |

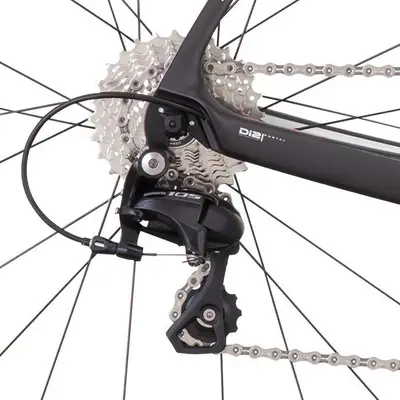

| Rear Derailleur | Shimano 105 RD-5800, 11 Speed |
|---|---|
| Front Derailleur | Shimano 105 FD-5800, Braze-on |

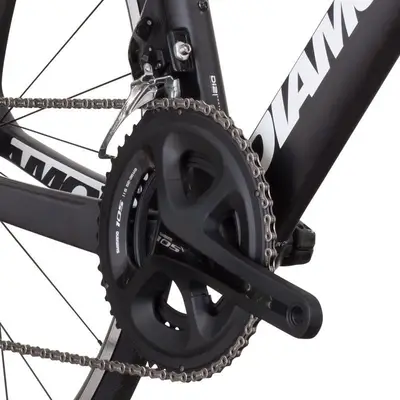

| Crank | Shimano 105 FC-5800, 52/36T |
| Shifters | Shimano 105 ST-5800, Dual Control, 2x11 Speed |
| Cassette | Shimano 105 CS-5800 Cassette, 11 Speed, 11-28T |
| Chain | FSA CN-1101, 11 Speed |
| Brakes | Shimano 105 BR-5800, Caliper Type: Rim |
| Brake Levers | Shimano 105 ST-5800 |
| Rims | HED Flanders C2+, 20h/24h |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | HED 20h Alloy, Sealed Cartridge |
| Rear Hub | HED 24h Alloy, Sealed Cartridge, Cassette |
| Tires | Continental Ultra Sport II, Folding, 700x23c |
