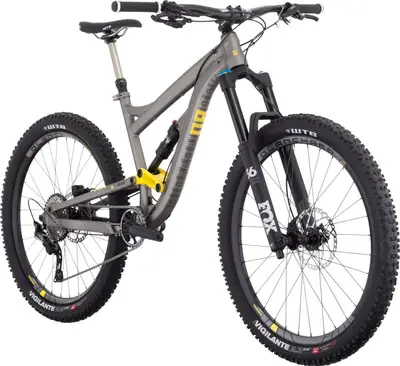

Today’s Deals2017 Diamondback
Mission 2
A 27.5″ aluminum frame full suspension enduro bike with upper mid-range components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 160 / 160mm |
| Fork | Fox Performance Float 36 |
| Shock | Fox Float DPS Performance |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | SLX |
| Brakes | Shimano SLX Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2015
From the florescent orange color to the way this bike charges, it was built to make a statement.
Mar 2015
With its overbuilt pivots, supple suspension feel and good pedaling support, the Diamondback Mission 2 should offer years of service to aspiring rippers.
Oct 2014 · Gregg Kato
New and improved Knucklebox creates a DH oriented ripper. - Mtbr.com
Aug 2014 · Guy Kesteven
Its fork, stem and tyres hold the Mission back, but it’s still a basically solid ‘good time for a long time’ bargain
Apr 2014 · Logan VonBokel
Diamondback re-ups its trail bikes with bigger wheels and more travel
| Frame | Mission All Mountain 27.5, 160mm 6061-T6 Weapons Grade Aluminum w/ Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, 1.5" Tapered Head Tube, Knuckle Box Technology, ISCG-05, 142x12mm E-Thru-axle Drop Out |
|---|---|
| Fork | Fox Performance 36 Float 27.5", 160mm Travel, Open Cartridge, 3 Position Lever w/ External Rebound Adjust, 1.5" Butted Alloy Tapered Steerer Tube, 36mm Easton Aluminum Stanchions, w/ Boost 110x15mm Thru-axle Travel: 160mm Spring Type: Air |
| Shock | Fox Float DPS EVOL, 3 Position Lever, "LV" Eyelet, 8.5x2.5" Air, w/ Rebound Adjust Travel: 160mm |
| Bottom Bracket | Raceface Outboard Bearing |
| Headset | FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge |
| Stem | DB35 Alloy, 50mm Reach, 35mm Bar Bore |
| Handlebar | DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore |
| Saddle | DB Race M-Series Saddle, w/ Cromoly Rails |
| Seatpost | KS LEV Integra Dropper, w/ SouthPaw Remote, 30.9mm Type: Dropper |
| Pedals | DB4L CNC Platform, Sealed Cartidge Bearing w/ Replaceable Pins |
| Grips | DB4L "Lock on" 135mm Kraton |

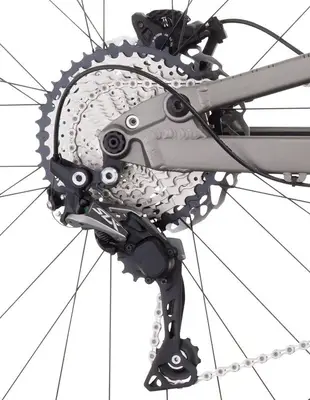

| Rear Derailleur | Shimano SLX M7000, Shadow Plus, 11 Speed |
|---|---|

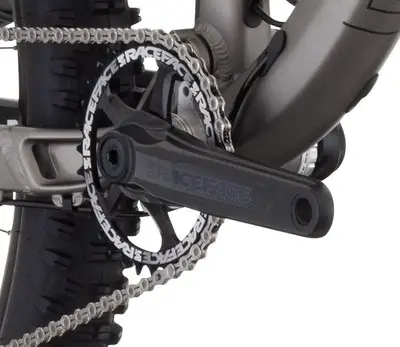

| Crank | Raceface Æfect SL, 32T Direct Mount "Narrow Wide" Single Ring |
| Shifters | Shimano SLX M7000, I-Spec, 11 Speed |
| Cassette | Shimano SLX M7000, Cassette, 11 Speed, 11-42T |
| Chain | KMC X11EL, 11 Speed |
| Brakes | Shimano SLX BR-M7000 Hydraulic Disc, Metal Cooling Fin Pads, w/ 180mm Front / 180mm Rear Rotors Type: Shimano SLX Hydraulic Disc |
| Brake Levers | Shimano SLX BR-M7000 w/ Reach Adjust |
| Rims | Diamondback Blanchard 28R, Tubeless Compatible, 32h |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount |
| Rear Hub | 32h Alloy, 142x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/ XD Cassette Body |
| Tires | WTB Vigilante Race, DNA Compound, 60TPI, 27.5x2.3" |
