Today’s Deals2017 Diamondback
Mission 1

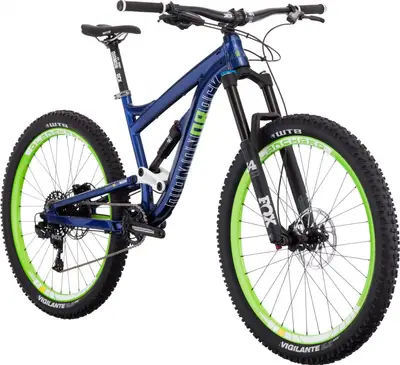

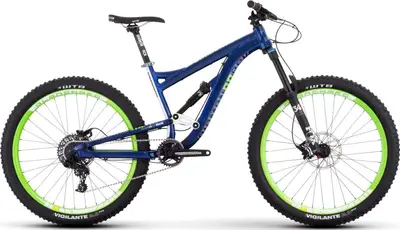

A 27.5″ aluminum frame full suspension enduro bike with upper mid-range components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 160 / 160mm |
| Fork | Fox Performance Float 34 |
| Shock | Fox Float DPS Performance |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | NX |
| Brakes | SRAM Level T Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2015
From the florescent orange color to the way this bike charges, it was built to make a statement.
Mar 2015
With its overbuilt pivots, supple suspension feel and good pedaling support, the Diamondback Mission 2 should offer years of service to aspiring rippers.
Oct 2014 · Gregg Kato
New and improved Knucklebox creates a DH oriented ripper. - Mtbr.com
Aug 2014 · Guy Kesteven
Its fork, stem and tyres hold the Mission back, but it’s still a basically solid ‘good time for a long time’ bargain
Apr 2014 · Logan VonBokel
Diamondback re-ups its trail bikes with bigger wheels and more travel
| Frame | Mission All Mountain 27.5, 160mm 6061-T6 Weapons Grade Aluminum w/ Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, 1.5" Tapered Head Tube, Knuckle Box Technology, ISCG-05, 142x12mm E-Thru-axle Drop Out |
|---|---|

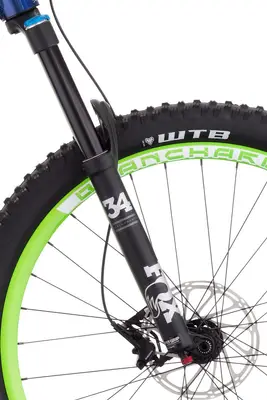

| Fork | Fox Performance 34 Float 27.5", 160mm Travel, Open Cartridge, 3 Position Lever w/ External Rebound Adjust, 1.5" Butted Alloy Tapered Steerer Tube, 34mm Easton Aluminum Stanchions, w/ 15mm Thru-axle Travel: 160mm Spring Type: Air |
| Shock | Fox Float DPS, 3 Position Lever, "LV" Eyelet, 8.5x2.5" Air, w/ Rebound Adjust Travel: 160mm |
| Bottom Bracket | Raceface Outboard Bearing |
| Headset | FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge |
| Stem | DB35 Alloy, 50mm Reach, 35mm Bar Bore |
| Handlebar | DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore |
| Saddle | WTB Volt Comp |
| Seatpost | DB Alloy Micro Adjust, 30.9mm Type: Rigid |
| Pedals | DB4L Alloy Platform w/ Replaceable Pins |
| Grips | DB4L "Lock on" 135mm Kraton |

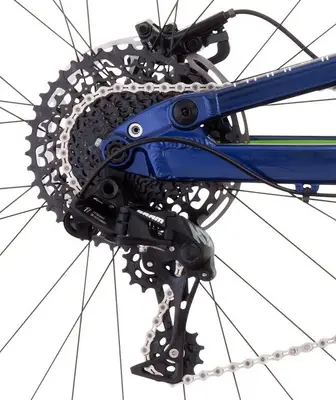

| Rear Derailleur | SRAM NX X-Horizon, 11 Speed |
|---|---|

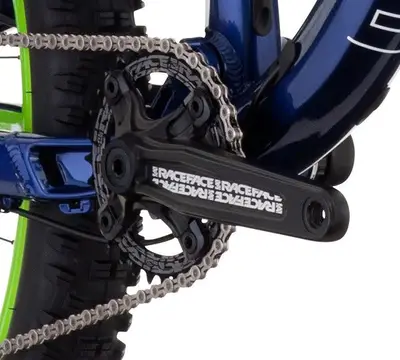

| Crank | Raceface Ride, 32T "Narrow Wide" Single Ring |
| Shifters | SRAM NX 11 Speed X-Actuation Trigger |
| Cassette | SRAM PG1130, 11 Speed, 11-42T |
| Chain | KMC X11EL, 11 Speed |
| Brakes | SRAM Level T Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors Type: SRAM Level T Hydraulic Disc |
| Brake Levers | SRAM Level Hydraulic Levers w/ Tooled Reach Adjust |
| Rims | Diamondback Blanchard 28R, Tubeless Compatible, 32h |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 32h Alloy,15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount |
| Rear Hub | 32h Alloy, 142x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette |
| Tires | WTB Vigilante Comp, 27.5x2.3" |
