Tektro Auriga Hydraulic Disc Brake Levers

Tektro Auriga Hydraulic Disc, w/ 180mm Front / 160mm Rear Rotors

SR Suntour Radion 27.5" Plus Suspension Fork, 120mm Travel, Air Spring, 6061 Forged Alloy Crown, Alloy Tapered Steerer Tube, 32mm Alloy Stanchions, 15mm Thru-axle

Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger

32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount

DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore

FSA NO.57, Sealed Cartridge for Tapered Headtube

32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, Cassette

Diamondback Blanchard 38, Tubeless Compatible, 32h

We’ve expanded our popular Mason line to bring the fun and capabilities of Plus-tires and hardtails to any rider. The beefy aluminum Mason Trail shares the geometry, ride feel, and versatility of all the Masons, delivering the same adventurous vibe for much less. With 27.5 × 3.5” tires mounted on our wide Blanchard rims, this bike is so adept at devouring choppy and loose trails that you may wonder why anyone needs rear suspension at all! A wide-range 1×10 drivetrain make short work of technical climbs, and the unbelievable traction breathes new life into trails you thought you’d mastered. One ride on the Mason Trail and you’ll be hooked.
Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

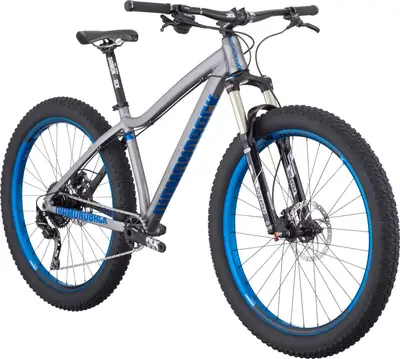

Diamondback Mason Trail

A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.

Weight	29.1 lbs
Frame	Aluminum
Suspension	Hardtail, 120mm
Fork	Suntour
Wheels	27.5″ Aluminum
Drivetrain	1 × 10
Groupset	NX, Deore
Brakes	Tektro Hydraulic Disc

Frame	Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger

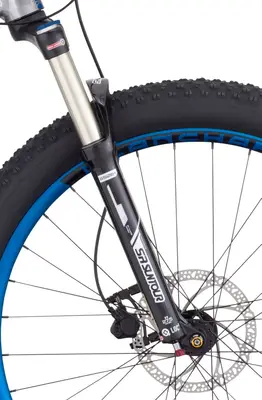

Fork	SR Suntour Radion 27.5" Plus Suspension Fork, 120mm Travel, Air Spring, 6061 Forged Alloy Crown, Alloy Tapered Steerer Tube, 32mm Alloy Stanchions, 15mm Thru-axle Travel: 120mm Spring Type: Air
Bottom Bracket	SRAM Powerspline
Headset	FSA NO.57, Sealed Cartridge for Tapered Headtube
Stem	DB35 Alloy, 60mm, 35mm Bar Bore
Handlebar	DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Saddle	DB Race M-series Saddle
Seatpost	DB Alloy Micro Adjust 30.9mm Type: Rigid
Pedals	DB4L Alloy w/ Molded Traction Pins
Grips	DB4L "Lock on" 135mm Kraton

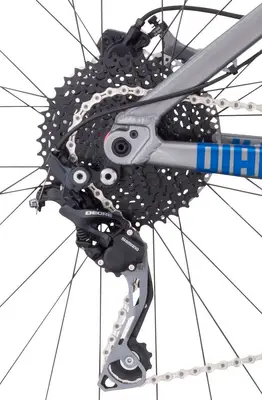

Rear Derailleur	Shimano Deore M615 Shadow Plus, 10 Speed

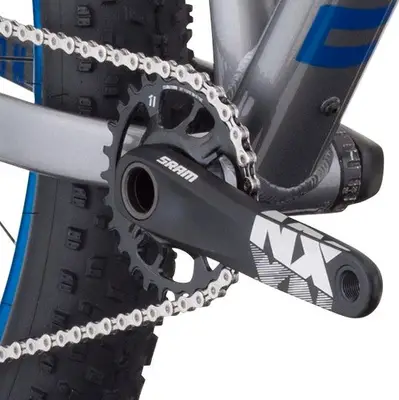

Crank	SRAM NX 1x, w/ X-Sync 30T Chain Ring
Shifters	Shimano Deore M610, 10 Speed
Cassette	Sunrace MX3-T, 10 Speed, 11-40T
Chain	KMC X10, 10 Speed
Brakes	Tektro Auriga Hydraulic Disc, w/ 180mm Front / 160mm Rear Rotors Type: Tektro Hydraulic Disc
Brake Levers	Tektro Auriga Hydraulic Disc Brake Levers

Rims	Diamondback Blanchard 38, Tubeless Compatible, 32h
Spokes	14g Stainless Steel
Front Hub	32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub	32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, Cassette
Tires	Chaoyang Big Daddy 27.5x2.8"

2017 DiamondbackMason Trail

2017 Diamondback
Mason Trail
