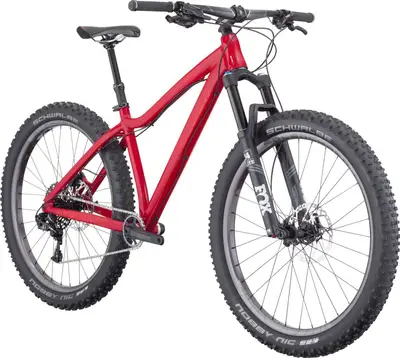

2017 Diamondback Mason Pro

Ultra high-end component level aluminum frame trail bike


2017 Diamondback Mason Pro
  • MSRP $2,499
  • Weight 28.7 lbs / 13.0 kg
  • Suspension Hardtail
  • Front Travel 130mm
  • Frame Aluminum
  • Fork Fox Performance Elite Float 34
  • Wheels 27.5″
  • Drivetrain 1 × 11
  • Groupset X1
  • Brakes Hydraulic Disc
  • Seatpost Dropper post

Where to Buy


1 × 11 — 11 speed

2017 Diamondback Mason Pro
25 mph
Similar Bikes
26 mph

The 2017 Mason Pro is geared about the same as similar bikes for riding up hills.

The 2017 Mason Pro won‘t keep up with similar bikes while riding downhill or sprinting.



FrameMason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger

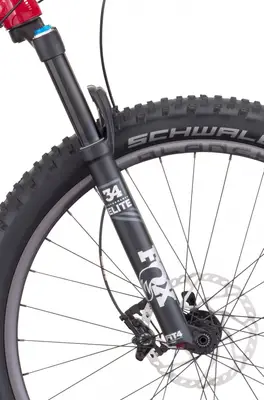

ForkFox 34 Float Perfomance Elite, FIT4 Cartridge, 130mm Travel, 3 Position Lever w/ Open Mode Adjust, External Rebound Adjust, 1.5" Butted Tapered Steerer Tube, 34mm Easton Aluminum Stanchions, 15mm Thru-axle
Bottom BracketRaceface Outboard Bearing
HeadsetFSA NO.57, Sealed Cartridge for Tapered Headtube
StemRaceface Ãffect, 60mm length, 35mm barbore
HandlebarRaceface Ãffect, 760mm Wide, 10mm Rise, 35mm Bar Bore
SaddleDB Race M-series Saddle
SeatpostKS LEV Integera Dropper, 125/150mm Travel, 30.9mm
PedalsDB4L Alloy Platform w/ Replaceable Pins
GripsDB4L "Lock on" 135mm Kraton

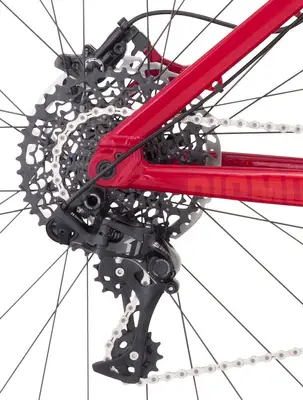

Rear DerailleurSRAM X1 X-Horizon, 11 Speed

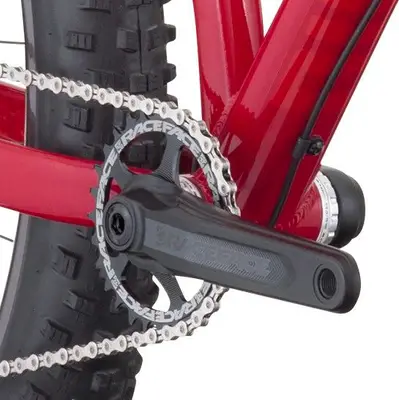

CrankRace Face Ãffect Cinch w/ 30T "Narrow Wide"
ShiftersSRAM X1, 11 Speed X-Actuation Trigger
CassetteSRAM XG1150, 11 Speed, 10-42T
ChainKMC X11EL, 11 Speed
BrakesShimano Deore M615 Hydraulic Disc, w/ 180mm Front /180mm Rear Rotors
Brake LeversShimano Deore M615 Hydraulic Levers w/Reach Adj.
RimsDiamondback Blanchard 38R, Tubeless Compatible, 32h
Spokes14g Stainless Steel
Front Hub32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/ XD Cassette Body
TiresSchwalbe Nobby Nic 27.5x2.8", SnakeSkin, Folding, TL-Easy Tubeless Compatible
