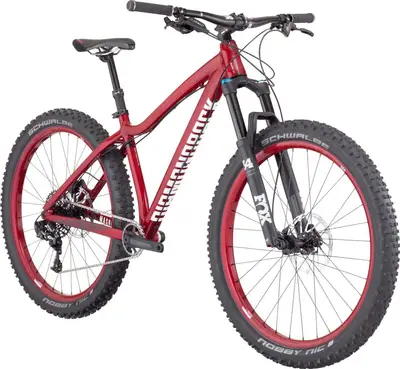

Mason Comp
A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$1,999Weight | 29.0 lbs |
---|---|
Frame | Aluminum |
Suspension | Hardtail, 130mm |
Fork | Fox Float 34 |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 11 |
Groupset | GX, Race Face |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Frame | Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger |
---|---|

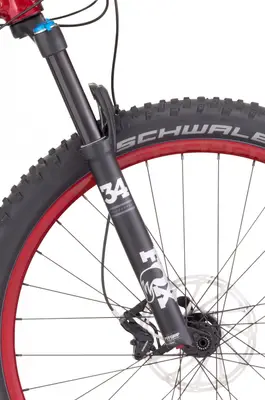

Fork | Fox 34 Float Perfomance, FIT4 Cartridge, 130mm Travel, 3 Position Lever w/ External Rebound Adjust, 1.5" Butted Tapered Steerer Tube, 34mm Easton Aluminum Stanchions, 15mm Thru-axle Travel: 130mm Spring Type: Air |
Bottom Bracket | Raceface Outboard Bearing |
Headset | FSA NO.57, Sealed Cartridge for Tapered Headtube |
Stem | DB35 Alloy, 60mm, 35mm Bar Bore |
Handlebar | DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore |
Saddle | DB Race M-series Saddle |
Seatpost | KS eTEN Integera Dropper, 100mm Travel, 30.9mm Type: Dropper |
Pedals | DB4L Alloy Platform w/ Replaceable Pins |
Grips | DB4L "Lock on" 135mm Kraton |

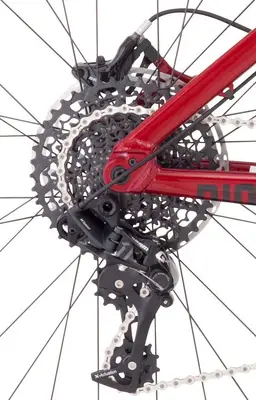

Rear Derailleur | SRAM GX X-Horizon, 11 Speed |
---|---|

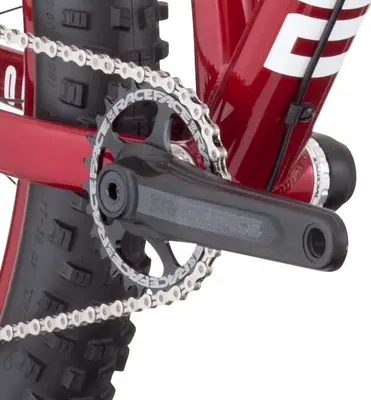

Crank | Race Face Ãffect Cinch w/ 30T "Narrow Wide" |
Shifters | SRAM GX 11 Speed X-Actuation Trigger |
Cassette | SRAM XG1150, 11 Speed, 10-42T |
Chain | KMC X11EL, 11 Speed |
Brakes | SRAM Level T Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors Type: Hydraulic Disc |
Brake Levers | SRAM Level T Hydraulic Levers w/ Tooled Reach Adjust |
Rims | Diamondback Blanchard 38, Tubeless Compatible, 32h |
---|---|
Spokes | 14g Stainless Steel |
Front Hub | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount |
Rear Hub | 32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/ XD Cassette Body |
Tires | Schwalbe Nobby Nic 27.5x2.8" Performance, Folding, Tubeless Compatible |
Last updated March 7
Not listed for 2,292 days
