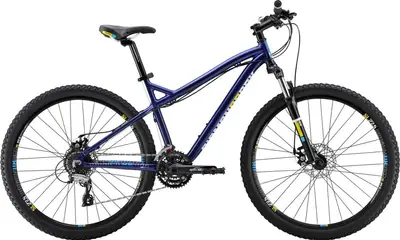

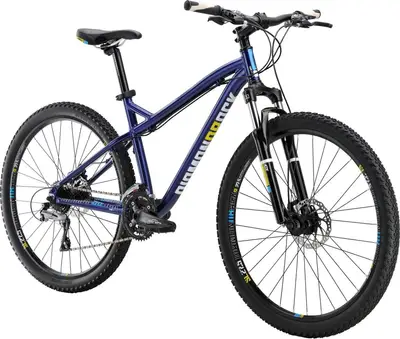

2017 Diamondback
Lux ST
A 27.5″ aluminum frame hardtail women’s crosscountry bike with modest components and mechanical disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 80mm |
| Fork | Suntour XCT |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 3 × 8 |
| Groupset | Acera, Tourney |
| Brakes | Mechanical Disc |
For This Bike
| Frame | Lux 27.5 W! Women's Specific Butted 6061-T6 Aluminum Frame, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube w/ Replaceable Hanger, Disc Only |
|---|---|

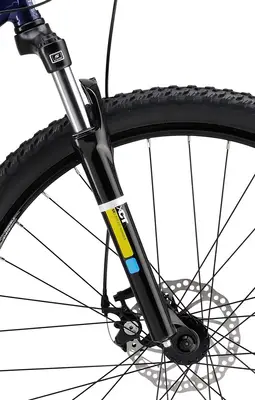

| Fork | SR Suntour XCT, 80mm Travel, Coil Spring, 28.6mm Stanchions Travel: 80mm Spring Type: Coil |
| Bottom Bracket | Square Taper - 5pc |
| Headset | FSA IS-3 Integrated |
| Stem | DB 3D Forged, +/- 7° Rise, 31.8mm Bar Bore |
| Handlebar | DB Laser Series, Low Rise, 600mm Wide, 31.8mm Bar Bore |
| Saddle | Devine Edition MTB saddle |
| Seatpost | DB Laser Micro Adjust 30.9mm Type: Rigid |
| Pedals | Alloy Forged |
| Grips | Devine Women's Specific D2 Kraton |

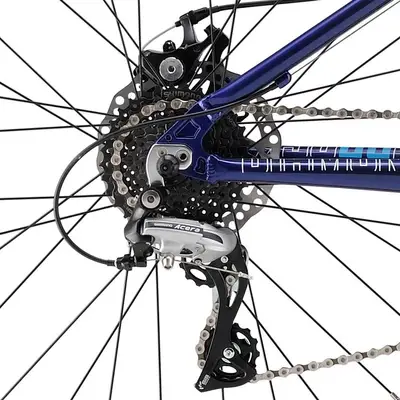

| Rear Derailleur | Shimano Acera M360, 8 Speed |
|---|---|
| Front Derailleur | Shimano TX50, Top Swing, Dual Pull, 34.9mm Band Clamp |

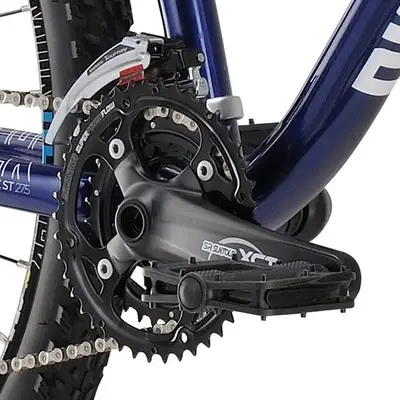

| Crank | SR Suntour XCT, 42/32/22T |
| Shifters | Shimano Altus EF-51 Easyfire, 3x8 Speed |
| Cassette | Shimano HG-31, 8 Speed, Cassette, 11-32T |
| Chain | KMC Z82 |
| Brakes | Tektro Aires Mechanical Disc w/ 180mm Front / 160mm Rear Rotors Type: Mechanical Disc |
| Brake Levers | Shimano Altus EF-51 |
| Rims | DB SL-7 27.5" 32h Doublewall |
|---|---|
| Spokes | 14g Stainless |
| Front Hub | 32h SL-7 Alloy w/ CNC Disc Mount |
| Rear Hub | 32h SL-7 Alloy w/ CNC Disc Mount, Cassette |
| Tires | Chaoyang Hornet 27.5x2.1 |
