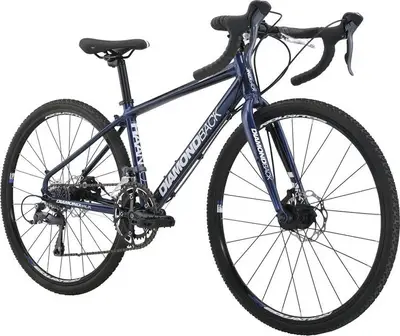

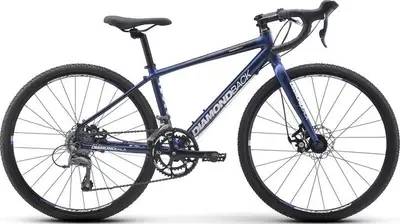

Today’s Deals2017 Diamondback
Haanjo Trail 24
A 24″ aluminum frame road youth bike with mid-range components and tektro mechanical disc brakes.
Compare the full range
Manufacturer Price
$649| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 24″ Aluminum |
| Drivetrain | 2 × 8 |
| Groupset | Claris |
| Brakes | Tektro Mechanical Disc |
Sep 2018 · Tom Pham
The Diamondback Haanjo EXP Carbon comes with a retro spec and 650b wheels to help with your gravel adventure. We review the adventure bike option.
Mar 2018 · Bicycling.com
Whether you want to ride road or gravel, the Diamondback Haanjo Trail is a solid, aluminum-frame value
May 2017 · Chris Case
Did someone say adventure? Maybe a commute? Sure thing. Light bikepacking duty? Always wanted to try it! Diamondback’s Haanjo Trail is equally adept at
| Frame | 6061-T6 Aluminum Alloy Jr. Haanjo Frame, Hydroformed Top Tube, Disc Tabs, Rack Ready |
|---|---|

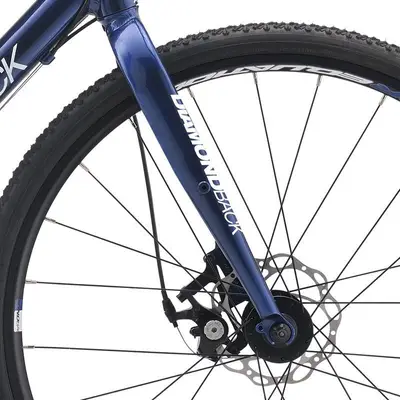

| Fork | DB Jr. Alloy Urban Fork, Disc Specific, 1 1/8" Steel Steerer |
| Bottom Bracket | Square Taper - 5pc |
| Headset | Threadless 1 1/8" |
| Stem | DB 3D Forged, +/- 7° Rise, 60mm Reach, 31.8mm Bar Bore |
| Handlebar | DB Jr. Alloy Flaro Road Bar, 400mm Wide, 31.8mm Bar Bore |
| Saddle | Jr. Equip Saddle |
| Seatpost | Alloy Micro Adjust 27.2mm Type: Rigid |
| Pedals | Resin Platform |
| Grips | Cork Tape w/ Gel |

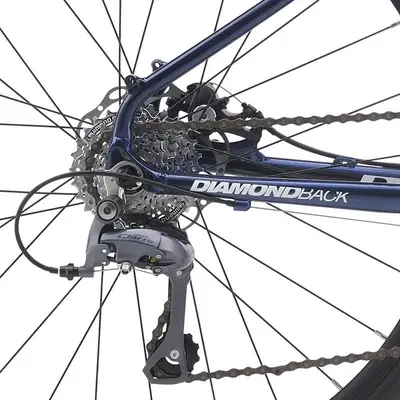

| Rear Derailleur | Shimano Claris FD-2400, 8 Speed |
|---|---|
| Front Derailleur | Shimano Claris FD-2400, Top Pull, 31.8 Clamp Diameter |

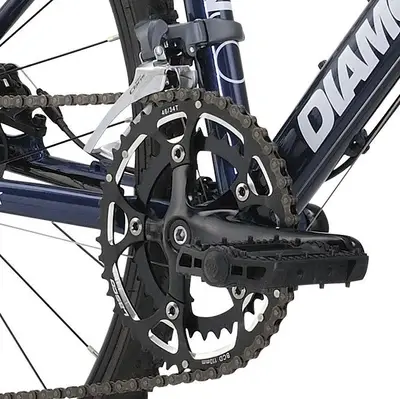

| Crank | 155mm Alloy Arm, CNC Alloy Outer Ring, 46/34T |

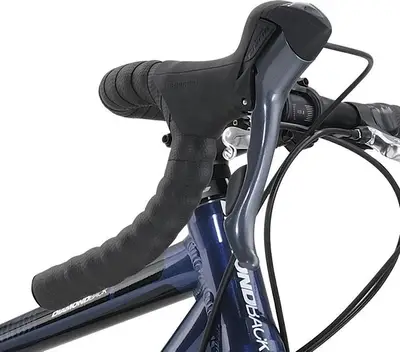

| Shifters | Shimano Claris ST-2400 STI, 2x8 Speed |
| Cassette | Shimano HG51 Cassette, 8 Speed, 11-28T |
| Chain | KMC HG50, 8 Speed |
| Brakes | Tektro Mira Mechanical Disc w/ 140mm Rotors Type: Tektro Mechanical Disc |
| Brake Levers | Shimano Claris, w/ Tektro RX2.0 Flat Bar Levers |
| Rims | DB Jr. Equation R Disc 24", Double Wall |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 24h Semi-Sealed Alloy w/ CNC Disc Mount |
| Rear Hub | 28h Semi-Sealed Alloy Cassette w/ CNC Disc mount |
| Tires | Kenda K161 Kross Cyclo, 24x1 3/8" (37-540) |
