2017 Diamondback
Haanjo Trail

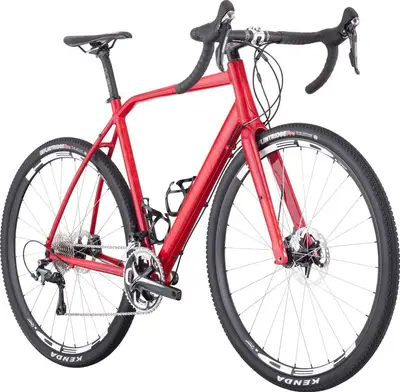

An aluminum frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$1,599| Weight | 21.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | Ultegra, Shimano |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2018 · Tom Pham
The Diamondback Haanjo EXP Carbon comes with a retro spec and 650b wheels to help with your gravel adventure. We review the adventure bike option.
Mar 2018 · Bicycling.com
Whether you want to ride road or gravel, the Diamondback Haanjo Trail is a solid, aluminum-frame value
May 2017 · Chris Case
Did someone say adventure? Maybe a commute? Sure thing. Light bikepacking duty? Always wanted to try it! Diamondback’s Haanjo Trail is equally adept at
| Frame | DB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Flat Mount Disc, 142x12mm Thru-axle w/ Replaceable Hanger BB Standard: 386EVO, 86mm, Press Fit |
|---|---|

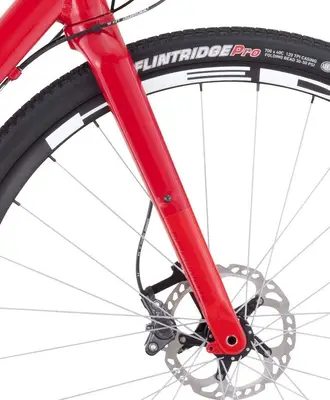

| Fork | DB Gravel Performance, Full Monocoque Carbon, Carbon Drop Outs, Flat Mount Disc Compatible, w/ Tapered Steerer Tube |
| Bottom Bracket | FSA BB 386 EVO |
| Headset | FSA NO.42, Sealed Cartridge for Tapered Headtube |
| Stem | HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore |
| Handlebar | HED Eroigca, 7050 Alloy, 31.8mm Bar Bore |
| Saddle | DB Eldorado |
| Seatpost | HED Eroica, 6061 Alloy, 27.2mm Type: Rigid |
| Pedals | DB Laser Alloy Platform |
| Grips | DB Gel Tape |

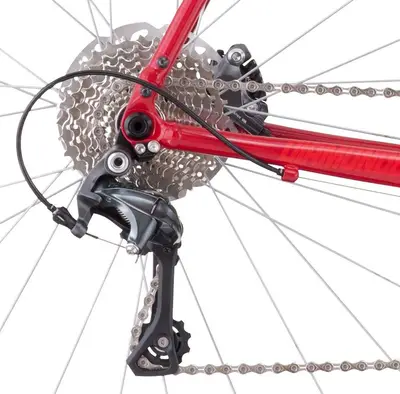

| Rear Derailleur | Shimano Ultegra RD-6800, 11 Speed |
|---|---|
| Front Derailleur | Shimano Ultegra FD-6800, 31.8 Band Clamp |

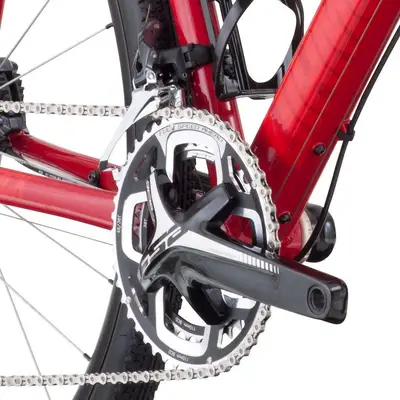

| Crank | FSA Gossamer Pro, BB386 EVO, 46/36T |
| Shifters | Shimano ST-RS685 Dual Control, 2x11 Speed |
| Cassette | Shimano 105 CS-5800, 11 Speed, 11-32T |
| Chain | KMC X11L, 11 Speed |
| Brakes | Shimano BR-RS805 Hydraulic Flat Mount Disc, w/ 160mm Front / 140mm Rear Rotors Type: Hydraulic Disc |
| Brake Levers | Shimano ST-RS685 |
| Rims | HED Tomcat Disc, 24h, 21mm Internal Width, Tubeless Ready |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 24h Alloy HighLow Flange, Sealed Cartridge, CNC Disc Mount, 12mm Thru-axle |
| Rear Hub | 24h Alloy Sealed Cartridge, CNC Disc Mount, 142x12mm Thru-axle, Cassette |
| Tires | Kenda Flintridge Pro, 120TPI, 700x40c |
