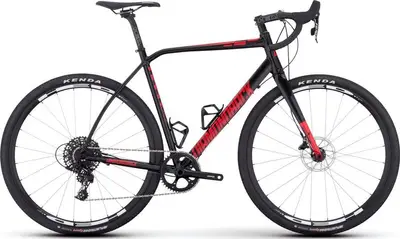

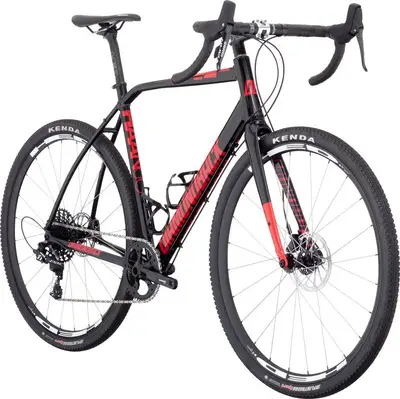

2017 Diamondback
Haanjo Comp
An aluminum frame gravel bike with mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$1,499| Weight | 22.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Apex, SRAM |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2018 · Tom Pham
The Diamondback Haanjo EXP Carbon comes with a retro spec and 650b wheels to help with your gravel adventure. We review the adventure bike option.
May 2017 · Chris Case
Did someone say adventure? Maybe a commute? Sure thing. Light bikepacking duty? Always wanted to try it! Diamondback’s Haanjo Trail is equally adept at
Jan 2017 · Caitlin Giddings
A bike built specifically to tackle your next bikepacking adventure
| Frame | DB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Disc Only, 142x12mm Thru-axle w/ Replaceable Hanger |
|---|---|
| Fork | DB Gravel Disc, 1.5" Tapered Alloy Steerer Tube, w/ 12mm Thru-axle |
| Bottom Bracket | SRAM GXP |
| Headset | FSA NO.42, Sealed Cartridge for Tapered Headtube |
| Stem | HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore |
| Handlebar | HED Grand Tour, 7050 Alloy, 31.8mm Bar Bore |
| Saddle | DB Eldorado |
| Seatpost | HED Eroica, 6061 Alloy, 27.2mm Type: Rigid |
| Pedals | DB Laser Alloy Platform |
| Grips | DB Gel Tape |

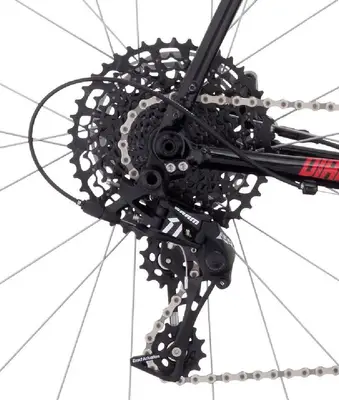

| Rear Derailleur | SRAM Apex 1, 11 Speed |
|---|---|

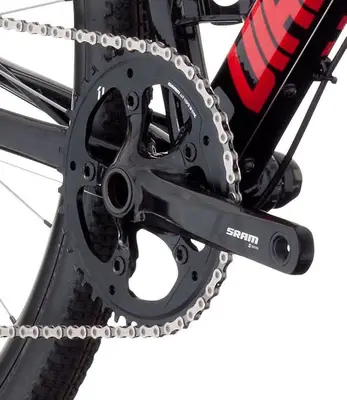

| Crank | SRAM S350 X-Sync, w/ 44T Chainring |
| Shifters | SRAM Apex 1, 1x11 Speed |
| Cassette | SRAM PG1130, 11 Speed, 11-42T |
| Chain | KMC X11EL, 11 Speed |
| Brakes | SRAM Apex 1 Hydraulic Disc, w/ 160mm Front / 140mm Rear Centerline Rotors Type: Hydraulic Disc |
| Brake Levers | SRAM Apex 1 |
| Rims | HED Tomcat Disc, 28h, 21mm Internal Width, Tubeless Ready |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 28h Alloy HighLow Flange, Sealed Cartridge, CNC Disc Mount, 12mm Thru-axle |
| Rear Hub | 28h Alloy Sealed Cartridge, CNC Disc Mount, 142x12mm Thru-axle |
| Tires | Kenda Flintridge, 60TPI, 700x40c |
