Tektro Aires Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors

Forged Alloy Arm, 38T Single Ring w/ Alloy Chainguard

DB Steel Urban Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts

DB Women's Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, 1 1/8" Headtube, Disc Only w/ Replaceable Hanger

DB Equation CX 700c 32h, 23mm Wide, Doublewall

DB 3D Forged Alloy, +/-7° Rise, 31.8mm Bar Bore

Schwalbe Citizen w/ Kevlar Guard, Reflective Strip, 700x42c

Those of us who are lucky enough to be able to ride our bike to work know the value of leaving the car in the garage: from saving fuel money to getting a workout to actually enjoying your trip to work—imagine that! Heading out into the city is easy on our Haanjenn Metro: a women’s bike that’s designed to complement urban living. Combining female-specific touchpoints and our Endurance Geometry, you’ll ride in a comfortable, upright position. Flat bars and ergonomic grips add familiar controls and confidence. We kept the drivetrain simple, with a dependable Shimano 1×9 setup with plenty of range for climbing hills. Tektro disc brakes and big Schwalbe tires give you maximum control in all conditions. Keep this Haanjenn stock and sleek, or add racks and fenders for a utilitarian transporter, it’s up to you!
Ready Ride bikes are shipped 95 percent assembled. Typical bike assembly is time-consuming and requires technical know-how. Ready Ride reduces the time and skills needed for the final, four-step assembly.

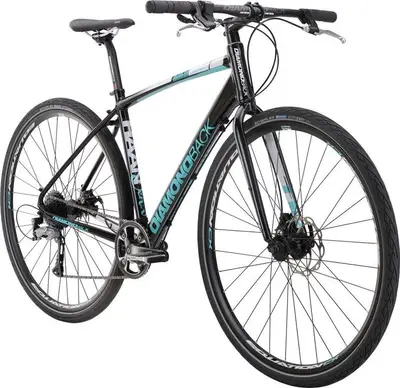

Diamondback Haanjenn Metro

A 700c aluminum frame women’s commuter bike with modest components and tektro mechanical disc brakes.

Weight	24.9 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Drivetrain	1 × 9
Groupset	Acera
Brakes	Tektro Mechanical Disc

Frame	DB Women's Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, 1 1/8" Headtube, Disc Only w/ Replaceable Hanger

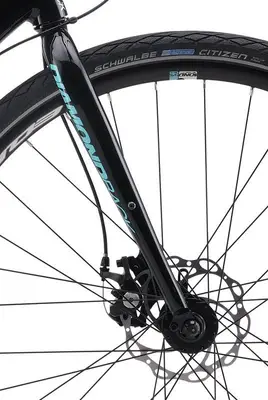

Fork	DB Steel Urban Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts
Bottom Bracket	Sealed Cartridge
Headset	FSA IS-3/NO.11 Integrated Style
Stem	DB 3D Forged Alloy, +/-7° Rise, 31.8mm Bar Bore
Handlebar	DB Flat Bar, 640mm Wide, 31.8mm Bar Bore
Saddle	DB Performance Womens Road
Seatpost	DB X-Durance, Alloy 27.2mm Type: Rigid
Pedals	DB Laser Alloy Platform
Grips	Diamondback Dual Density Grip

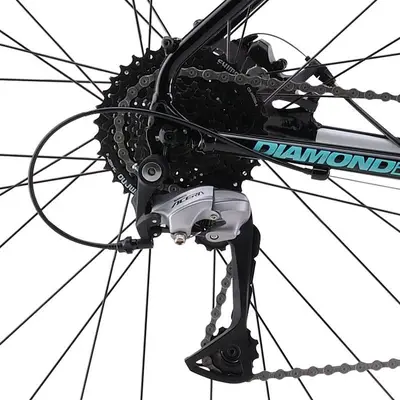

Rear Derailleur	Shimano Acera RD-T3000, 9 Speed

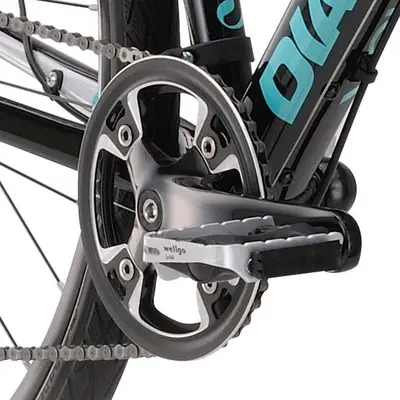

Crank	Forged Alloy Arm, 38T Single Ring w/ Alloy Chainguard
Shifters	Shimano Acera M3000, 9 Speed
Cassette	Shimano HG200, 9 Speed Cassette, 11-34T
Chain	KMC Z99, 9 Speed
Brakes	Tektro Aires Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors Type: Tektro Mechanical Disc
Brake Levers	Tektro 2 Finger Alloy Linear

Rims	DB Equation CX 700c 32h, 23mm Wide, Doublewall
Spokes	14g Stainless Steel
Front Hub	32h Alloy w/ CNC Disc Mount
Rear Hub	32h Alloy w/ CNC Disc Mount, Cassette
Tires	Schwalbe Citizen w/ Kevlar Guard, Reflective Strip, 700x42c

2017 DiamondbackHaanjenn Metro

2017 Diamondback
Haanjenn Metro
