DB Hi-Ten Steel BMX, w/ 990 Brake Mounts, 14mm Drop Outs

48h Steel Nutted, w/ 14mm Axle, Freewheel

Every kid deserves a BMX bike, it's just that simple. Their classic looks and durability make them perfect for the challenges of learning to ride. The Grind is built for smaller BMXers and is ready for any park or street obstacle thrown its way. With a tough steel frame, 48 spoke rims, easy-to-control brakes and meaty tires, the Grind is the full deal in an affordable package.

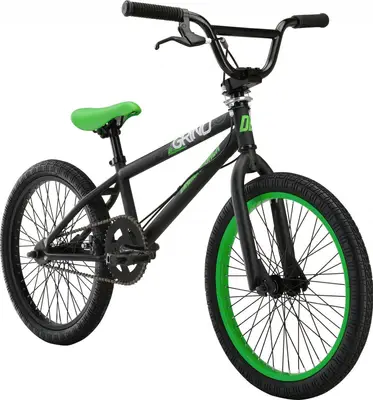

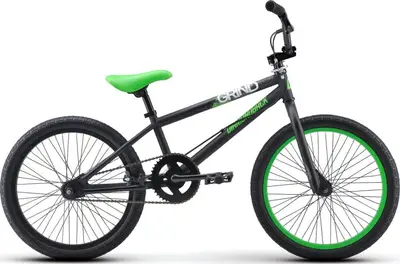

Diamondback Grind

A 20″ steel frame general youth bike with rim brakes.

Weight	28.2 lbs
Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	20″ Aluminum
Drivetrain	Single-speed
Brakes	Rim

Frame	DB Hi-Ten Steel BMX, w/ 990 Brake Mounts, 14mm Drop Outs

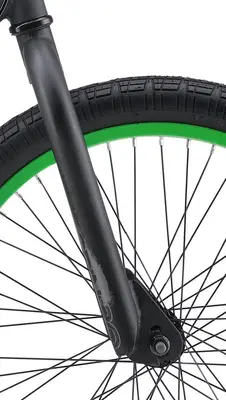

Fork	20" Hi-Ten Steel
Bottom Bracket	Loose Ball
Headset	Threadless 1 1/8"
Stem	Alloy 4 Bolt Ahead
Handlebar	Hi-Ten Steel 2 Piece
Saddle	DB BMX Padded
Seatpost	Steel Pillar, 25.4mm Type: Rigid
Pedals	Resin Platform
Grips	DB Icon Grip

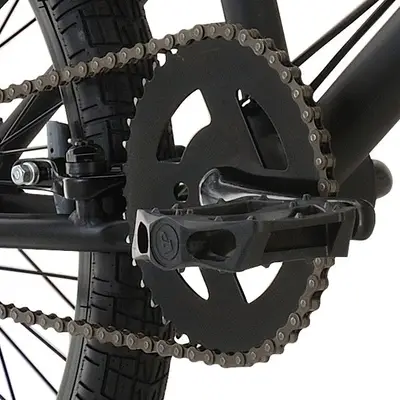

Crank	152mm Steel 1 Piece w/ 42T Single Ring
Cassette	16T Freewheel
Chain	KMC Z410, Single Speed
Brakes	Melt Forged Alloy U-brake Type: Rim
Brake Levers	Melt Forged Alloy

Rims	48h Alloy Single Wall
Spokes	14g Steel
Front Hub	48h Steel Nutted, w/ 3/8" Axle

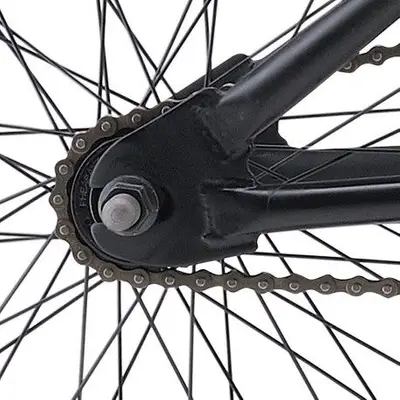

Rear Hub	48h Steel Nutted, w/ 14mm Axle, Freewheel
Tires	BMX Street, 20x2.1"

2017 DiamondbackGrind

2017 Diamondback
Grind
