2017 Diamondback
Cobra 24

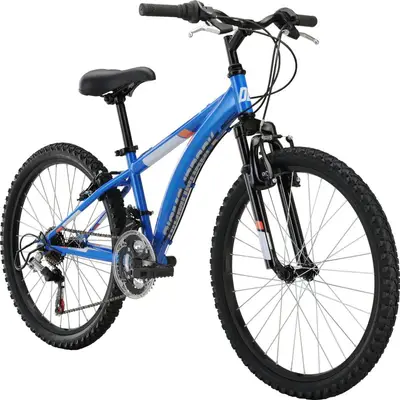

A 24″ steel frame mountain youth bike with mid-range components and rim brakes.
Compare the full range
| Frame | Steel |
|---|---|
| Suspension | Hardtail, 40mm |
| Fork | Zoom |
| Wheels | 24″ Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Tourney, Shimano |
| Brakes | Rim |
For This Bike
| Frame | DB Hi-Ten Jr Boy's 24" Mountain Frame |
|---|---|
| Fork | HL Zoom 24" Suspension, 40mm Travel Travel: 40mm |
| Bottom Bracket | Square Taper - 5pc |
| Headset | Threaded 1" |
| Stem | Steel Quill |
| Handlebar | Steel Jr Riser |
| Saddle | JR ATB 2-panel |
| Seatpost | Steel Pillar, 25.4mm Type: Rigid |
| Pedals | Resin MTB, 9/16" |
| Grips | DB Kraton |

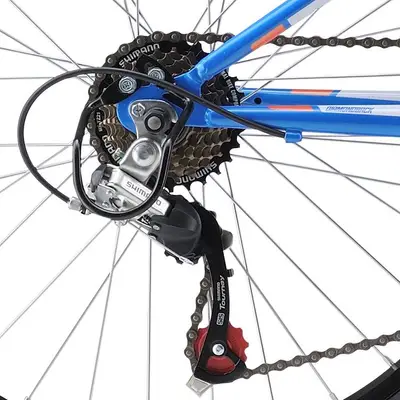

| Rear Derailleur | Shimano TZ-40, 7 Speed |
|---|---|
| Front Derailleur | Shimano TZ-20, 28.6mm Band Clamp |

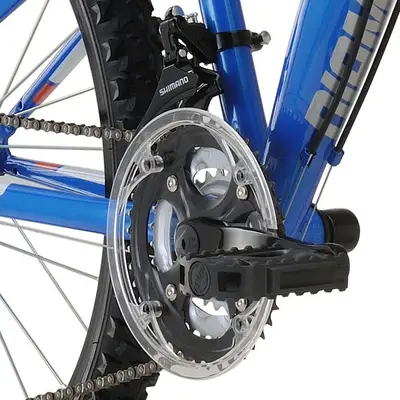

| Crank | 165mm Steel, 42/34/24T w/ Chain Guard |
| Shifters | Shimano RS25 Revo Grip Shift, 3x7 Speed |
| Cassette | Shimano TZ21, 7 Speed Freewheel, 14-28T |
| Chain | KMC Z51, 7 Speed |
| Brakes | Alloy Linear Pull Type: Rim |
| Brake Levers | Alloy Linear Pull w/ Reach Adjust |
| Rims | 36h 24" R-1000 Alloy |
|---|---|
| Spokes | 14g Steel |
| Front Hub | 36h Steel Nutted |
| Rear Hub | 36h Steel Nutted, Freewheel |
| Tires | Jr ATB Knobby, 20x2.0" |
