2017 Diamondback
Clarity 20

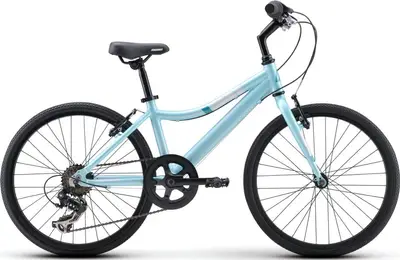

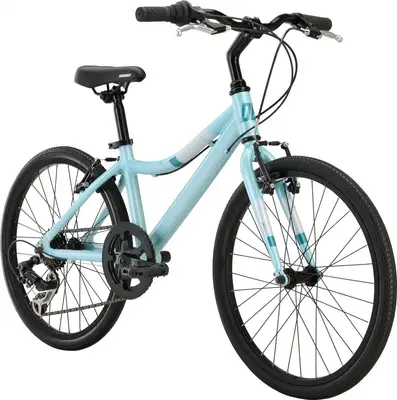

A 20″ aluminum frame fitness bike with mid-range components and rim brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 20″ Aluminum |
| Drivetrain | 1 × 7 |
| Groupset | Tourney |
| Brakes | Rim |
For This Bike
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Clarity 20" Light alloy frame w/ replaceable hanger |
|---|---|
| Fork | Clarity Jr. Steel Straight Blade |
| Bottom Bracket | Square Taper - 5pc |
| Headset | Threaded 1 1/8" |
| Stem | Alloy Quill |
| Handlebar | Steel Jr Riser 23" wide x 1" rise |
| Saddle | Jr Padded 2 panel |
| Seatpost | Alloy Micro Adjust 27.2mm Type: Rigid |
| Pedals | Resin |
| Grips | DB Kraton |

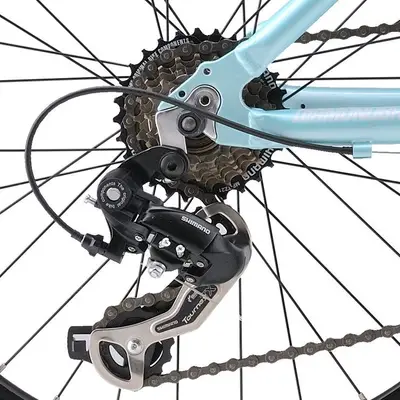

| Rear Derailleur | Shimano TX-35 |
|---|---|
| Front Derailleur | N/A |

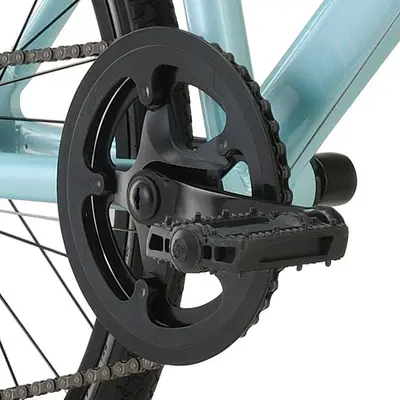

| Crank | 155mm Alloy 42T w/ Chainguard |
| Shifters | Shimano RS35 Revo 7spd Twist |
| Cassette | Shimano MF-HG37 7spd Freewheel (14-28t) |
| Chain | KMC Z51 |
| Brakes | Alloy Linear Type: Rim |
| Brake Levers | Alloy Linear w/ reach Adjust |
| Rims | 32h R-1000 Alloy |
|---|---|
| Spokes | 14g |
| Front Hub | 32h Nutted |
| Rear Hub | 32h Nutted |
| Tires | Kenda K-184, 20x1 3/8" (37-440) |
