Tektro 2 Finger Hydraulic w/ Reach Adjust

Tektro Gemini Hydraulic Disc w/ 180mm Front /160mm Rear Rotors

Rockshox Recon Silver, Coil, 120mm Travel, 32mm Stanchions, 15mm Thru-Axle, Tapered Steerer Tube, w/ Turn Key Lock out

Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Aggressive Geometry, 142x12mm Rear Axle w/ replaceable hanger

32h SL-7, 15MM Thru-Axle, Alloy w/ CNC Disc Mount,

Race Face Respond, 785mm Wide, 31.8 Bar Bore

FSA NO.57, Sealed Cartridge for Tapered Headtube

32h SL-7,142x12mm Thru-Axle, Alloy Cassette w/ CNC Disc mount

Rock Shox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm

Race Face Respond, 45mm Reach, 31.8 Bar Bore

There are plenty of complex full suspension mountain bikes out there, most demanding high prices. The Atroz Comp takes a different approach by streamlining its suspension design and saving you some money in the process. The high chainstay design delivers 120mm of suspension travel that eliminates chain slap as you’re riding through the rough stuff, with a Rockshox Recon fork soaking up the bumps out front. The aluminum alloy frame is simple, lightweight and plenty durable so you can enjoy the ride with the peace of mind that it’s built to last. Outfitted with hydraulic brakes, a 142×12mm thru-axle, and SRAM’s NX 1×11 single ring drivetrain, you’re looking at a very capable trail bike.

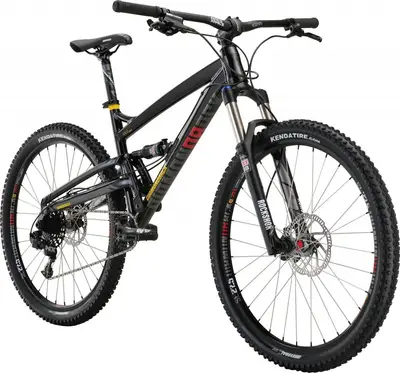

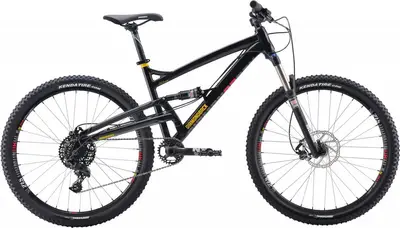

Diamondback Atroz Comp

A 27.5″ aluminum frame full suspension crosscountry bike with upper mid-range components.

Frame	Aluminum
Suspension	Full, 100 / 120mm
Fork	RockShox Recon Silver RL
Shock	RockShox Monarch R
Wheels	27.5″ Aluminum
Drivetrain	1 × 11
Groupset	NX
Brakes	Tektro Gemini Hydraulic Disc

Frame	Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Aggressive Geometry, 142x12mm Rear Axle w/ replaceable hanger

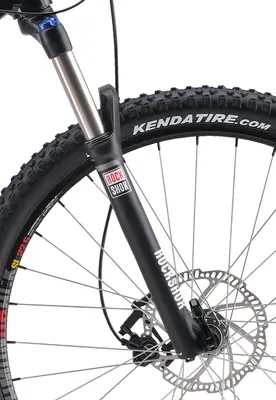

Fork	Rockshox Recon Silver, Coil, 120mm Travel, 32mm Stanchions, 15mm Thru-Axle, Tapered Steerer Tube, w/ Turn Key Lock out Travel: 120mm Spring Type: Coil
Shock	Rock Shox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm Travel: 100mm
Bottom Bracket	SRAM GXP
Headset	FSA NO.57, Sealed Cartridge for Tapered Headtube
Stem	Race Face Respond, 45mm Reach, 31.8 Bar Bore
Handlebar	Race Face Respond, 785mm Wide, 31.8 Bar Bore
Saddle	DB Sync'r Saddle
Seatpost	Alloy Micro Adjust 30.9mm Type: Rigid
Pedals	DB4L Alloy Platform
Grips	DB4L 135mm Lock On

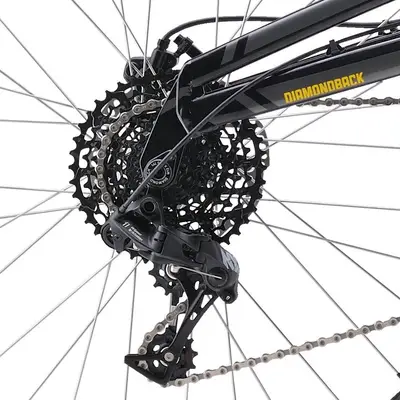

Rear Derailleur	SRAM NX X-Horizon, 11 Speed

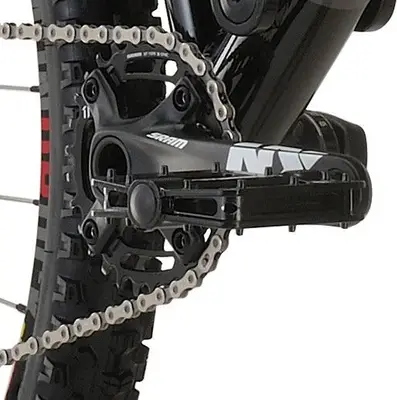

Crank	SRAM NX 1x, w/ X-Sync 30T Chain Ring
Shifters	SRAM NX 11 Speed X-Actuation Trigger
Cassette	SRAM PG1130, 11 Speed, 11-42T
Chain	SRAM PC-1130, 11 Speed, Power Link
Brakes	Tektro Gemini Hydraulic Disc w/ 180mm Front /160mm Rear Rotors Type: Tektro Gemini Hydraulic Disc
Brake Levers	Tektro 2 Finger Hydraulic w/ Reach Adjust

Rims	32h Diamondback SL-7 Doublewall
Spokes	14g Stainless Steel
Front Hub	32h SL-7, 15MM Thru-Axle, Alloy w/ CNC Disc Mount,
Rear Hub	32h SL-7,142x12mm Thru-Axle, Alloy Cassette w/ CNC Disc mount
Tires	Kenda Nevegal Lite, 27.5x2.35"

2017 DiamondbackAtroz Comp

2017 Diamondback
Atroz Comp
