Tektro 2 Finger Hydraulic w/ Reach Adjust

Tektro Auriga Hydraulic Disc w/ 180mm Front /160mm Rear Rotors

SR Suntour XCM 120mm Travel, 30mm Stanchions, w/ Preload Adjust

Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Aggressive Geometry, replaceable hanger

Diamondback "Pro Bar", 750mm Wide, 31.8 Bar Bore

32h SL-7 Alloy Cassette w/ CNC Disc mount

SR Suntour Raidon-R, Air Shock w/ Rebound Adjust, 184x44mm

Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore

The increased performance of a full suspension mountain bike doesn’t need to come at a ridiculous cost. The simple, understated single pivot design of the Atroz uses sealed cartridge bearings to deliver smooth, durable performance, and 120mm of suspension travel will take the edge off all but the biggest roots and rocks on the trail. The frame is built using trusted aluminum alloy, so you know it’s strong, and the formed and butted tubing makes sure to save weight wherever possible. With quick and stable 27.5” wheels, a SRAM1x9 drivetrain, and aggressive Kenda Nevegal tires, you’ll have fun every time you head out on the trails.

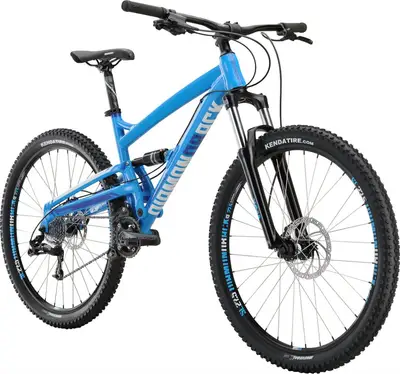

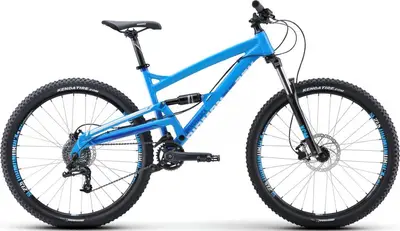

Diamondback Atroz

A 27.5″ aluminum frame full suspension crosscountry bike with mid-range components.

Frame	Aluminum
Suspension	Full, 100 / 120mm
Fork	Suntour XCM
Shock	Suntour
Wheels	27.5″ Aluminum
Drivetrain	1 × 9
Groupset	X5, X4
Brakes	Tektro Hydraulic Disc

Frame	Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Aggressive Geometry, replaceable hanger

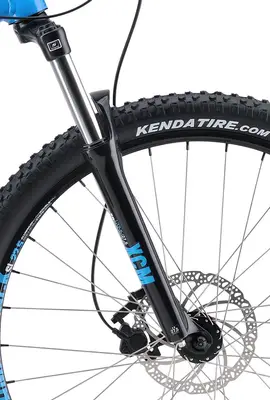

Fork	SR Suntour XCM 120mm Travel, 30mm Stanchions, w/ Preload Adjust Travel: 120mm Spring Type: Coil
Shock	SR Suntour Raidon-R, Air Shock w/ Rebound Adjust, 184x44mm Travel: 100mm
Bottom Bracket	Sealed Cartridge
Headset	Ahead 1 1/8" Zero Stack
Stem	Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar	Diamondback "Pro Bar", 750mm Wide, 31.8 Bar Bore
Saddle	DB Sync'r Saddle
Seatpost	Alloy Micro Adjust 30.9mm Type: Rigid
Pedals	DB4L Alloy Platform
Grips	DB4L 135mm Kraton

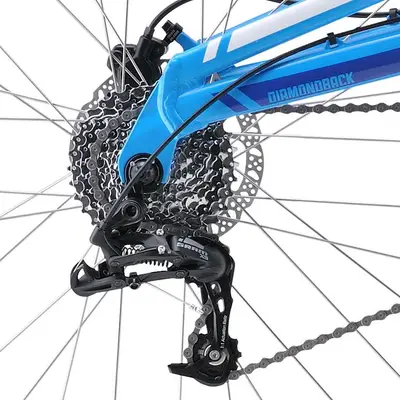

Rear Derailleur	SRAM X5, 9 Speed

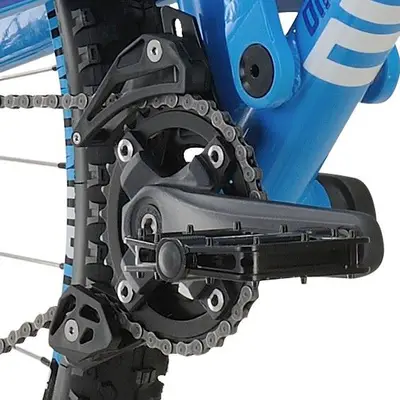

Front Derailleur	Full ISCG-05 Chain Guide w/ Roller
Crank	Alloy Arm w/ 32T Alloy Single Ring
Shifters	SRAM X4 9 Speed
Cassette	SRAM PG950, 9 Speed, 11-34T
Chain	KMC Z99, 9 Speed
Brakes	Tektro Auriga Hydraulic Disc w/ 180mm Front /160mm Rear Rotors Type: Tektro Hydraulic Disc
Brake Levers	Tektro 2 Finger Hydraulic w/ Reach Adjust

Rims	32h Diamondback SL-7 Doublewall
Spokes	14g Stainless Steel
Front Hub	32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub	32h SL-7 Alloy Cassette w/ CNC Disc mount
Tires	Kenda Nevegal Lite, 27.5x2.35"
