Tektro Aires Mechanical Disc w/ 180mm Front / 160mm Rear Rotors

SR Suntour XCT, 80mm Travel, Coil Spring, 28.6mm Stanchions

Lux 27.5 W! Women's Specific Butted 6061-T6 Aluminum Frame, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube w/ Replaceable Hanger, Disc Only

Shimano TX50, Top Swing, Dual Pull, 34.9mm Band Clamp

DB Laser Series, Low Rise, 600mm Wide, 31.8mm Bar Bore

32h SL-7 Alloy w/ CNC Disc Mount, Cassette

DB 3D Forged, +/- 7° Rise, 31.8mm Bar Bore

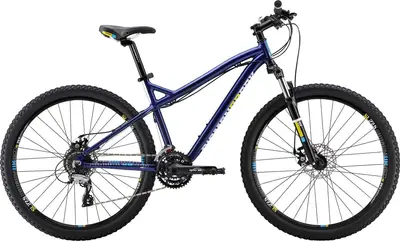

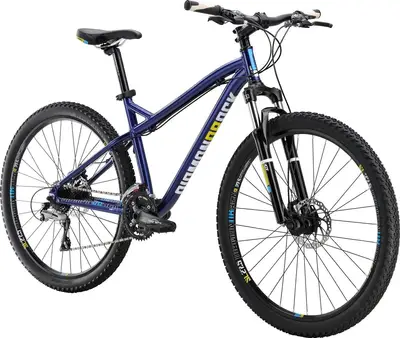

The Lux is a nimble mountain bike that rockets up climbs with hardtail efficiency, yet stays planted and stable through rough sections and descents. Designed to accommodate a range of women’s sizes, the hydroformed aluminum frame provides plenty of clearance and a better overall fit. The bike’s geometry lends itself to true trail riding, with a neutral feel that lets you get the most out of every situation. Traction and control come from an 80mm Suntour XCT fork with preload adjust, disc brakes, and high-volume knobby tires. With a nice mix of Shimano and Suntour parts rounding out the drivetrain, the Lux is ready for your next dirt adventure.

Diamondback Lux ST

A 27.5″ aluminum frame hardtail women’s crosscountry bike with modest components and tektro mechanical disc brakes.

Frame	Aluminum
Suspension	Hardtail, 80mm
Fork	Suntour XCT
Wheels	27.5″ Aluminum
Drivetrain	3 × 8
Groupset	Tourney, Acera
Brakes	Tektro Mechanical Disc

Frame	Lux 27.5 W! Women's Specific Butted 6061-T6 Aluminum Frame, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube w/ Replaceable Hanger, Disc Only

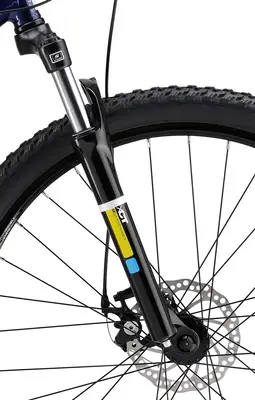

Fork	SR Suntour XCT, 80mm Travel, Coil Spring, 28.6mm Stanchions Travel: 80mm Spring Type: Coil
Bottom Bracket	Square Taper - 5pc
Headset	FSA IS-3 Integrated
Stem	DB 3D Forged, +/- 7° Rise, 31.8mm Bar Bore
Handlebar	DB Laser Series, Low Rise, 600mm Wide, 31.8mm Bar Bore
Saddle	Devine Edition MTB saddle
Seatpost	DB Laser Micro Adjust 30.9mm Type: Rigid
Pedals	Alloy Forged
Grips	Devine Women's Specific D2 Kraton

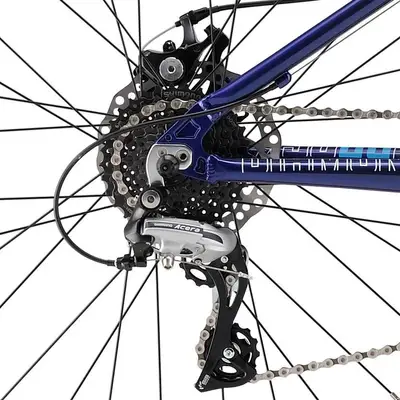

Rear Derailleur	Shimano Acera M360, 8 Speed
Front Derailleur	Shimano TX50, Top Swing, Dual Pull, 34.9mm Band Clamp

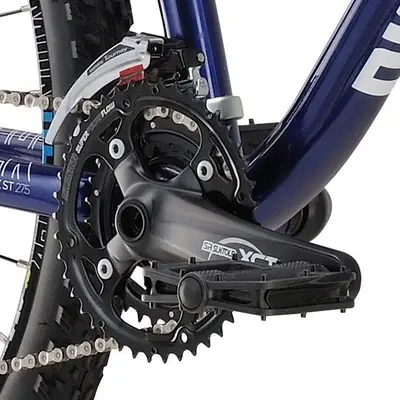

Crank	SR Suntour XCT, 42/32/22T
Shifters	Shimano Altus EF-51 Easyfire, 3x8 Speed
Cassette	Shimano HG-31, 8 Speed, Cassette, 11-32T
Chain	KMC Z82
Brakes	Tektro Aires Mechanical Disc w/ 180mm Front / 160mm Rear Rotors Type: Tektro Mechanical Disc
Brake Levers	Shimano Altus EF-51

Rims	DB SL-7 27.5" 32h Doublewall
Spokes	14g Stainless
Front Hub	32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub	32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Tires	Chaoyang Hornet 27.5x2.1

2016 DiamondbackLux ST

2016 Diamondback
Lux ST
