2016 Diamondback
Insight 1
A 700c aluminum frame fitness bike with modest components and mechanical disc brakes.
Compare the full range
Manufacturer Price
$399| Weight | 26.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Altus, Tourney |
| Brakes | Mechanical Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2017 · Carrie Wren
The Diamondback Insight 20 kid's bike is a quality bike to introduce your little rider to multi-gears, longer distances, and more varied elevations. Read our review!
| Frame | Insight 6061-T6 Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, Vertical Compliance Stays, (VCS), w/ Disc Tabs, replaceable derailleur hanger |
|---|---|

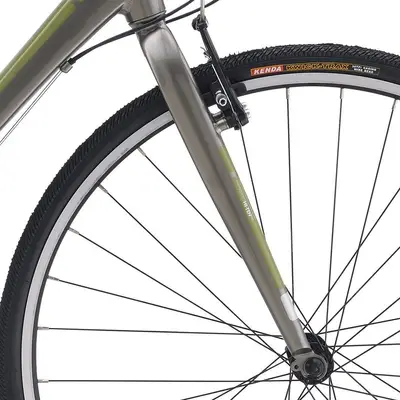

| Fork | Insight Integrated Ferous Aero Hi-Ten Steel Straight Blade w/ Disc Tabs |
| Bottom Bracket | Sealed Cartridge |
| Headset | Integrated "Cane Creek" Size Drop-in ACB 1 1/8" |
| Stem | DB 3D Forged 7° 31.8mm |
| Handlebar | DB 31.8mm low rise Alloy |
| Saddle | DB Performance Hybrid w/ Gel |
| Seatpost | Alloy Micro Adjust 27.2mm Type: Rigid |
| Pedals | DB Toe Clip Compatible Platform |
| Grips | Diamondback Dual Density Comfort Grip |

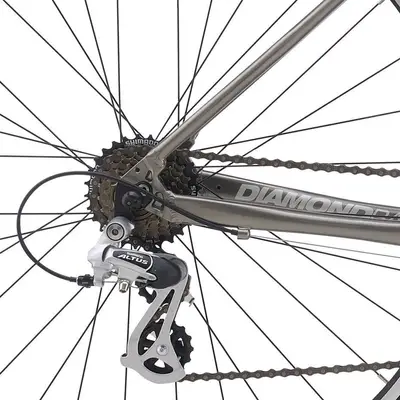

| Rear Derailleur | Shimano Altus |
|---|---|
| Front Derailleur | Shimano TX51 |

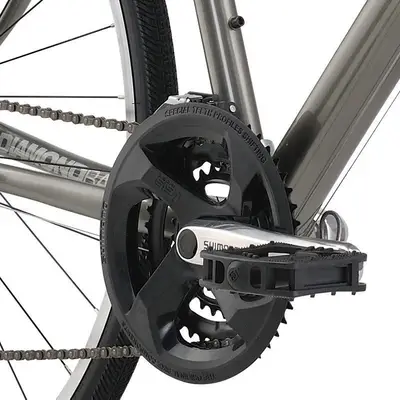

| Crank | Shimano FCM131 w/ chainguard, 28/38/48t |
| Shifters | Shimano EF-51 Easyfire 7spd |
| Cassette | Shimano 7spd (14-28t) Freewheel |
| Chain | KMC-Z51 |
| Brakes | Alloy Linear Type: Mechanical Disc |
| Brake Levers | Shimano EF-51 |
| Rims | 32h Equation R23 Doublewall |
|---|---|
| Spokes | Black 14g Stainless Steel |
| Front Hub | 32h Alloy QR |
| Rear Hub | 32h Alloy QR Cassette |
| Tires | Kenda Kwick Trax 700x32c |
