Name: 2016 Diamondback Haanjo Trail 24
Brand: Diamondback
Rating: 4.6240000000000006 (2 reviews)

Tektro Mira Mechanical Disc w/ 140mm Rotors

DB Jr. Aluminum Alloy Urban Fork, Disc Specific, 1 1/8" Steel Steerer

6061-T6 Aluminum Alloy Jr. Frame, Hydroformed Top Tube, Disc Tabs, Rack Ready

DB Jr. Alloy Flaro Road Bar, 400mm Wide, 31.8 Bar Bore

32h Semi-Sealed Alloy Cassette w/ CNC Disc mount

Kenda K-161 Kross Cyclo, 24x1 3/8" (37-540)

Exploring forgotten dirt and gravel roads brings out the kid in all of us, so why aren't there more youth gravel bikes? Think of our Haanjo Trail 24 as a peace offering to all the kids who want a bike that looks like their parents'. It's a drop-bar alternative road bike with all the features you'd expect on a top of the line adult bike: a hydroformed aluminum frame, integrated shifters, and disc brakes. A 2×8 drivetrain offers a wide range of gears to tackle steep climbs or long stretches of path, and high-volume semi-knobby tires offer grip on pavement or loose gravel. A true gravel grinder for youngsters, the Haanjo Trail 24 is ready for the long haul—even if it's only ridden to school.

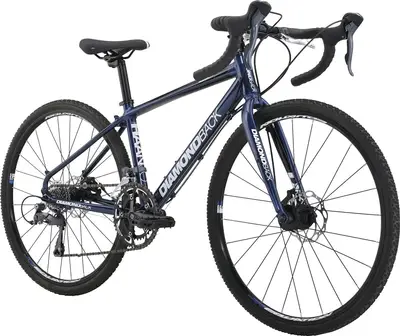

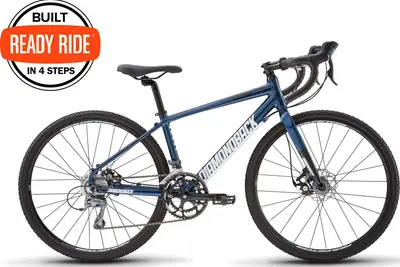

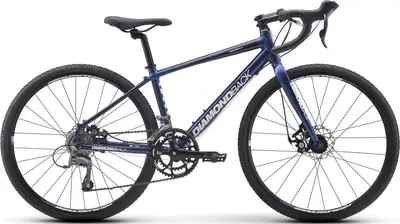

Diamondback Haanjo Trail 24

A 24″ aluminum frame road youth bike with mid-range components and tektro mechanical disc brakes.

Did someone say adventure? Maybe a commute? Sure thing. Light bikepacking duty? Always wanted to try it! Diamondback’s Haanjo Trail is equally adept at

Weight	21.5 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	24″ Aluminum
Drivetrain	2 × 8
Groupset	Claris
Brakes	Tektro Mechanical Disc

Frame	6061-T6 Aluminum Alloy Jr. Frame, Hydroformed Top Tube, Disc Tabs, Rack Ready
Fork	DB Jr. Aluminum Alloy Urban Fork, Disc Specific, 1 1/8" Steel Steerer
Bottom Bracket	Square Taper - 5pc
Headset	Threadless 1 1/8"
Stem	DB 3D Forged 7° 31.8mm, 60mm Reach
Handlebar	DB Jr. Alloy Flaro Road Bar, 400mm Wide, 31.8 Bar Bore
Saddle	Jr. Equip Saddle
Seatpost	Alloy Micro Adjust 27.2mm Type: Rigid
Pedals	Resin Platform
Grips	Cork Tape w/ Gel

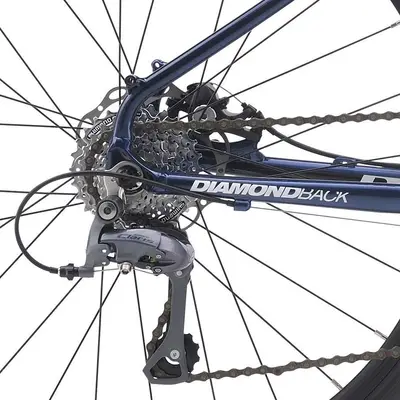

Rear Derailleur	Shimano Claris, 8 spd
Front Derailleur	Shimano Claris, top pull, 31.8

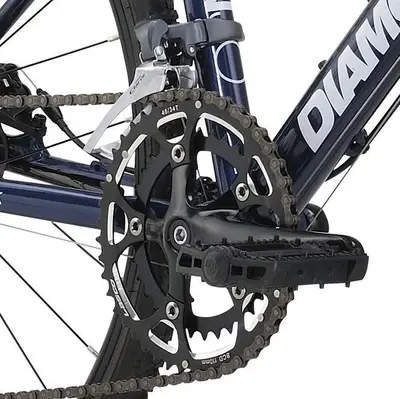

Crank	155mm Alloy Arm, 34/46T, Alloy Big Ring

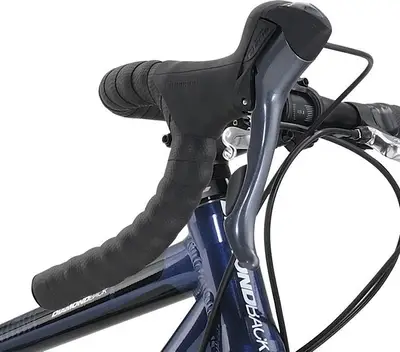

Shifters	Shimano Claris
Cassette	Shimano HG51 8spd 11-28t
Chain	KMC HG50

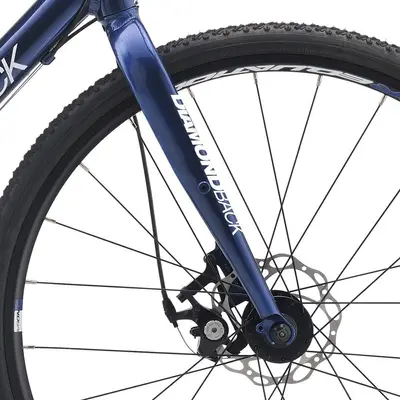

Brakes	Tektro Mira Mechanical Disc w/ 140mm Rotors Type: Tektro Mechanical Disc
Brake Levers	Shimano Claris

Rims	DB Equation R 24"
Spokes	14g
Front Hub	32h Semi-Sealed Alloy w/ CNC Disc Mount
Rear Hub	32h Semi-Sealed Alloy Cassette w/ CNC Disc mount
Tires	Kenda K-161 Kross Cyclo, 24x1 3/8" (37-540)
