TRP Spyre Mechanical Disc, 160mm/160mm Rotor

DB El Oso Custom Rigid Alloy Fork, 1.5 Taper, 150mmx15mm Thru

El Oso Butted 6061-T6 Aluminum w/ Formed Top / Down Tube, 1.5" Tapered Machined Headtube, 197mm Thru Axle, Fits up to 26x5" tire

Alloy 32h Sealed Cartridge Bearing 150mmx15mm Thru

DB Pro Bar740mm width, 15mm rise, 31.8mm barbore

FSA C-40 Sealed 1-1/8"/1.5" ACB Integrated

Alloy 32h Cassette, Sealed Cartridge Bearing 197mmx12mm Thru

El Oso Grande fat bike is, like its namesake, surprisingly quick and nimble for its size. This big bear may look like a lumbering beast, but after a few pedal strokes it's apparent that the bike is a trail-capable adventure machine. We designed El Oso Grande around a rigid platform to shave pounds and let the gigantic tires take care of the suspension - something they do quite well. With hydroformed aluminum tubes, the frame and fork allow an amazingly nimble ride. A SRAM X5 2×10 drivetrain has a gear for any trail, and disc brakes provide excellent modulation and stopping power. And how could we forget about the tires: they're five inches wide. Able to be comfortably ridden with PSI in the low teens, El Oso Grande digs its claws in and doesn't let go. Whether you're bikepacking, riding in deep sand and snow, or just enjoying the excess traction on normal trails, this bike is prepared!

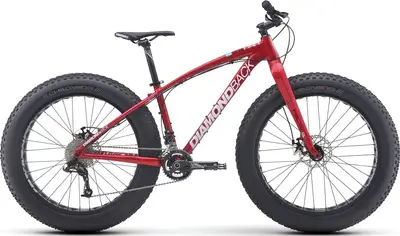

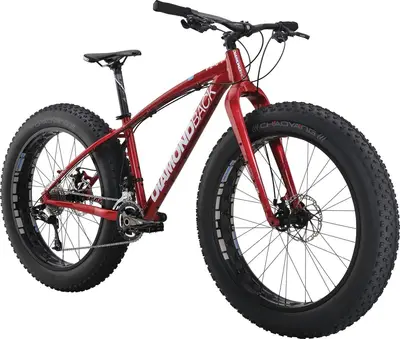

Diamondback El Oso Grande

A 26″ aluminum frame rigid fat bike with mid-range components and trp mechanical disc brakes.

Weight	34.8 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	26″ Aluminum
Drivetrain	2 × 10
Groupset	X5
Brakes	TRP Mechanical Disc

Frame	El Oso Butted 6061-T6 Aluminum w/ Formed Top / Down Tube, 1.5" Tapered Machined Headtube, 197mm Thru Axle, Fits up to 26x5" tire

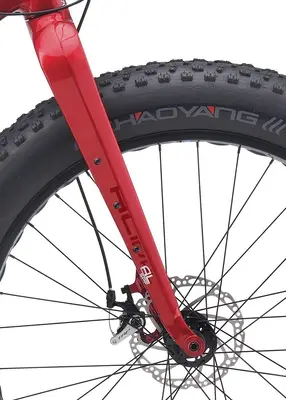

Fork	DB El Oso Custom Rigid Alloy Fork, 1.5 Taper, 150mmx15mm Thru
Bottom Bracket	FSA Mega Exo
Headset	FSA C-40 Sealed 1-1/8"/1.5" ACB Integrated
Stem	DB 3D Forged, +/-7° Rise 31.8
Handlebar	DB Pro Bar740mm width, 15mm rise, 31.8mm barbore
Saddle	DB Race M-series saddle w/ cromo rails
Seatpost	DB Micro Adjust 30.9mm Type: Rigid
Pedals	DB Alloy w/ molded traction pins
Grips	DB High Density Foam Grip

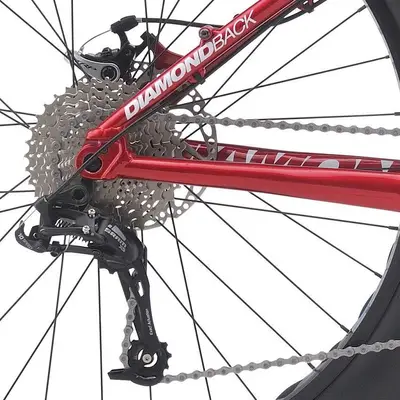

Rear Derailleur	SRAM X5
Front Derailleur	SRAM X5 High Direct Mount

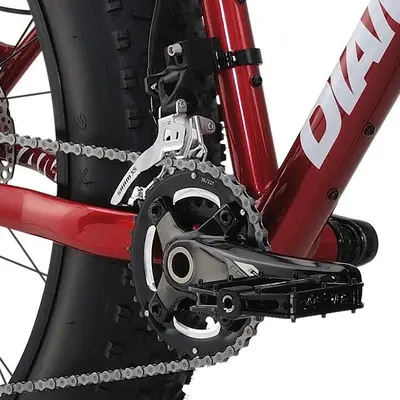

Crank	FSA Comet Mega Exo, 36/26T
Shifters	SRAM X5 10spd
Cassette	Shimano HG50 10spd (11-36t)
Chain	KMC X10 EPT Anti-Rust
Brakes	TRP Spyre Mechanical Disc, 160mm/160mm Rotor Type: TRP Mechanical Disc
Brake Levers	TRP ML800 Spyke

Rims	DB 95wide w/55mm Cutout, Singlewall 32h
Spokes	14g Stainless Steel
Front Hub	Alloy 32h Sealed Cartridge Bearing 150mmx15mm Thru
Rear Hub	Alloy 32h Cassette, Sealed Cartridge Bearing 197mmx12mm Thru
Tires	Chaoyang Cruiser 26"x4.9"

2016 DiamondbackEl Oso Grande

2016 Diamondback
El Oso Grande
