Today’s Deals2026 CTM

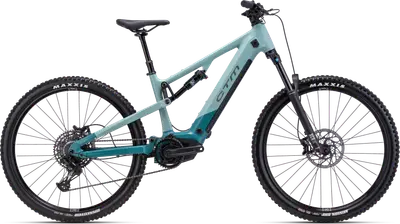

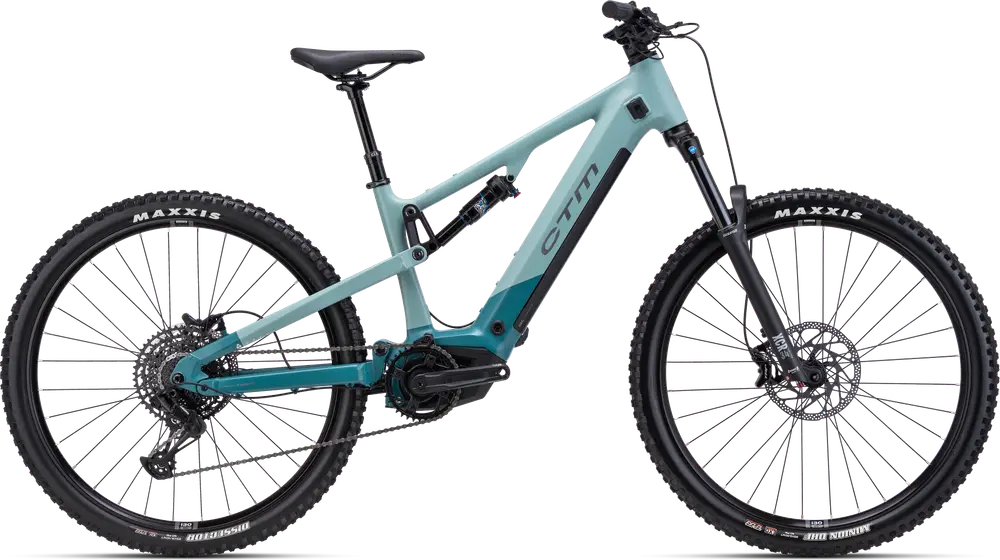

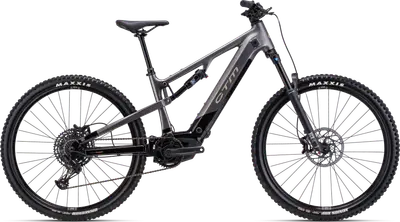

AREON GX Comp
A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€3,499($4,069)| Frame | Aluminum |
|---|---|
| Suspension | Full, 140mm front |
| Fork | Suntour XCR Air |
| Shock | X-Fusion |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | CUES |
| Motor | Panasonic 100Nm hub-drive |
| Battery | 820Wh |
| Brakes | TRP Slate EVO Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full AREON model range
View Comparison5'1" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'9"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | A35 FS frame, Alloy 6061, Full Integrated Battery, ICR, 12x148mm, UDH, 4-Link, travel 135 mm, S, M, L, XL Hanger Standard: UDH |
|---|---|
| Fork | Suntour XCR34, AIR, 2CR, DS, 140mm, boost™ 15x110axle Travel: 140mm Spring Type: Air |
| Shock | XFusion 02 PRO RL 210x57 |
| Headset | FSA No.80/62 |
| Handlebar | CTM N06, 760/1" rise/35mm |
| Saddle | CTM Cloud M |
| Seatpost | EXA Form KSP900, S-125mm, M-150mm, L/XL-175mm Type: Dropper |
| Pedals | VPE 537 |
| Rear Derailleur | Shimano CUES RD-U8000GS |
|---|---|
| Crank | FSA 38T, 165mm |
| Shifters | Shimano CUES SL-U6000/11sp. |
| Chain | Shimano CNLG500 |
| Brakes | TRP SLATE EVO-HD-M807, four pistons/203mm Type: TRP Slate EVO Hydraulic Disc |
| Rims | WTB ST Tough, 30mm, TCS 2.0, 29", 32H |
|---|---|
| Front Hub | Shimano TC500, CL, F15/R12 thru type axle |
| Rear Hub | Shimano TC500, CL, F15/R12 thru type axle |
| Motor | PANASONIC GXM100 / 100Nm |
|---|---|
| Battery | BMZ V10 820Wh / 36V / 22.8Ah |
First added December 6
Last updated May 30
