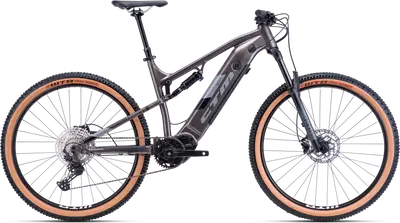

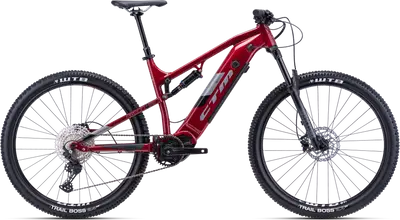

2022 CTM

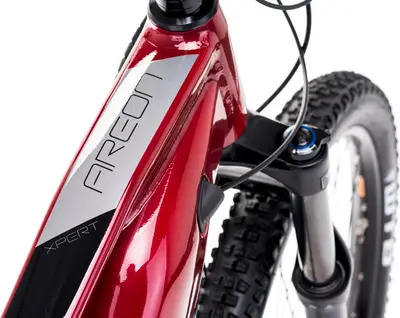

AREON XPERT

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€2,999($3,295)
Price History
Reported Weight56.4 lbs
FrameAluminum
SuspensionFull, 140mm front
ForkRockShox Recon Silver RL
ShockRockShox Monarch RL
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetDeore
MotorBafang 250W 95Nm mid-drive
Battery630Wh
BrakesHydraulic Disc
SeatpostDropper
View on ctm.skLearn about CTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
MD

5'2" – 5'9"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

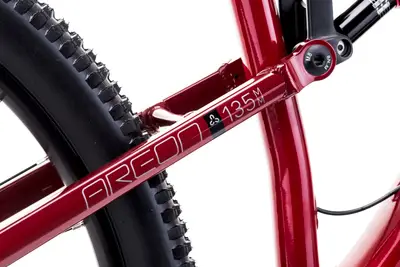

ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")

Fork

Rock Shox RECON SILVER RL, SA, 140mm, boost™ 15x110axle

Travel: 140mm

Spring Type: Air

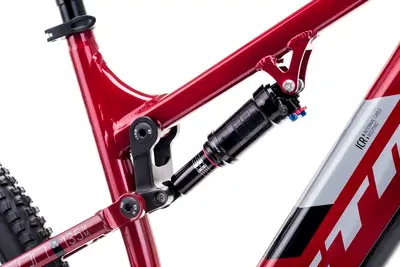

Shock

Rock Shox MONARCH RL, SA, 190x51mm

Headset

NECO H156

Stem

CTM ASM03 45 mm

Handlebar

CTM rise bar, 31.8dia, 760mm

Saddle

CTM FLAT

Seatpost

EXA Form KSP900 (M-125mm/L,XL-150mm)

Type: Dropper

Pedals

VPE-527

Groupset

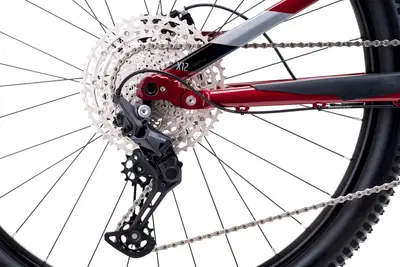

Rear Derailleur

Shimano Deore RD-M5100

Crank

Bafang 38T, 170mm

Shifters

Shimano Deore SL-M5100/11sp.

Chain

KMC X11e 128L

Brakes

ZOOM HB875/CL180

Type: Hydraulic Disc

Wheels
Rims

WTB ST i29 TCS 2.0 29" 32H

Rear Hub

Shimano MT400 boost / 32H

Tires

WTB Trail Boss 29x2.4" Comp

Electric Components

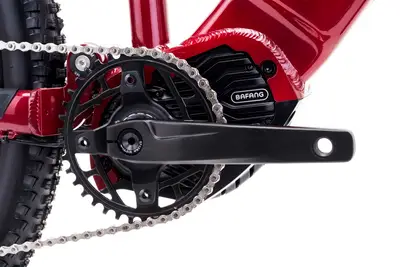

Motor

BAFANG M500 / 250W / 95Nm

Battery

630Wh / 36V / 17.5Ah

Rider Notes
Riders Also Viewed

Last updated May 4
Not listed for 76 days
